P805C12.7X6.0
P805C12.7X6.0
P805C12.7X6.0

P805C12.7X6.0

UGC DOR6814121
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.69 CAD - $56.69 CAD
$56.69 CAD
$56.69 CAD - $56.69 CAD
$56.69 CAD

Vendu en lots de : 1

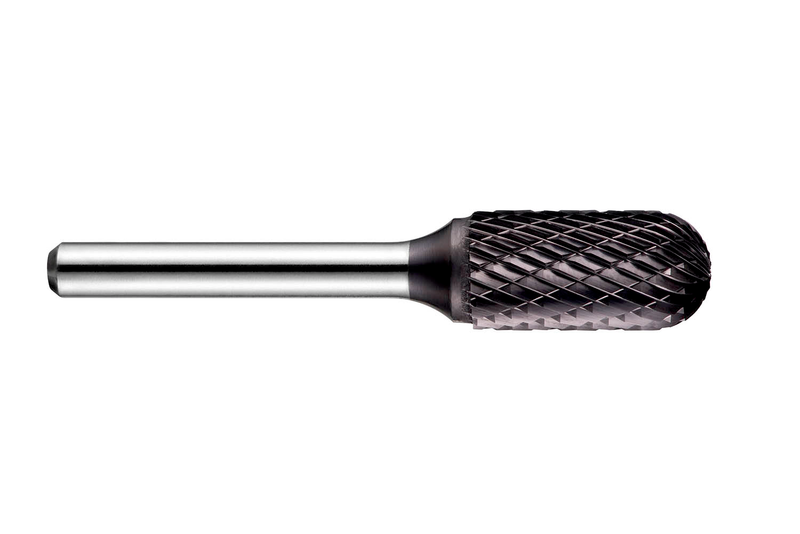

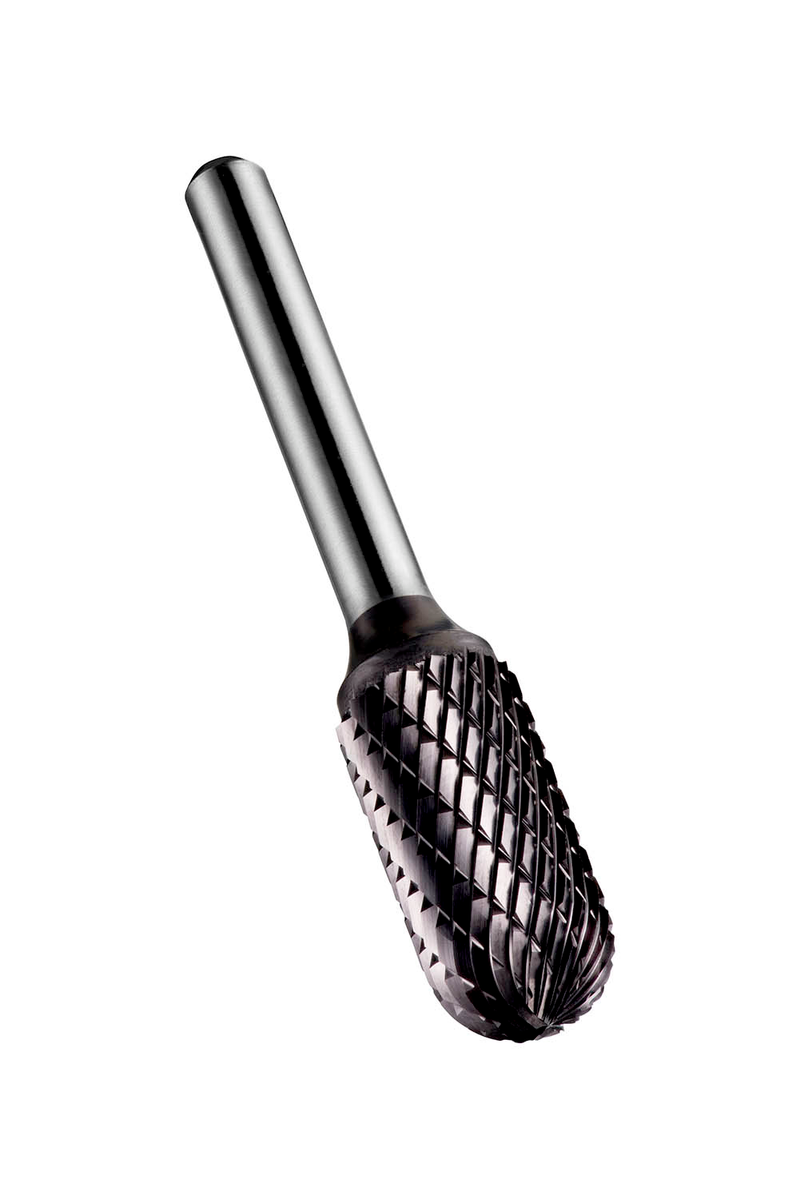

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 12,7 mm avec longueur de coupe de 25 mm, longueur totale de 70 mm et queue de 6 mm, à pastilles de carbure avec queue en acier trempé et revenu et revêtement TiAlN, double coupe DC à bords rapprochés pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P805C12.7X6.0
GradeTiAlN
Product Number6814121
Product FamilyP805C
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814121
EAN7320760687628
File Type Download

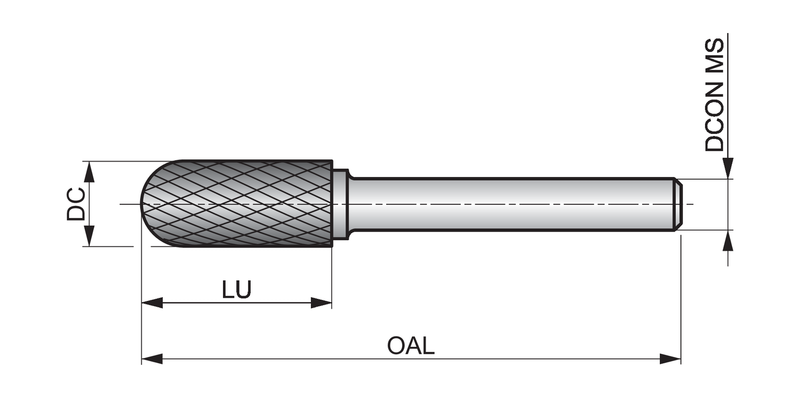

P805C12.7X6.0 — Line Drawing PDF Download
