P8073.0X3.0
P8073.0X3.0
P8073.0X3.0

P8073.0X3.0

UGC DOR6814122
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

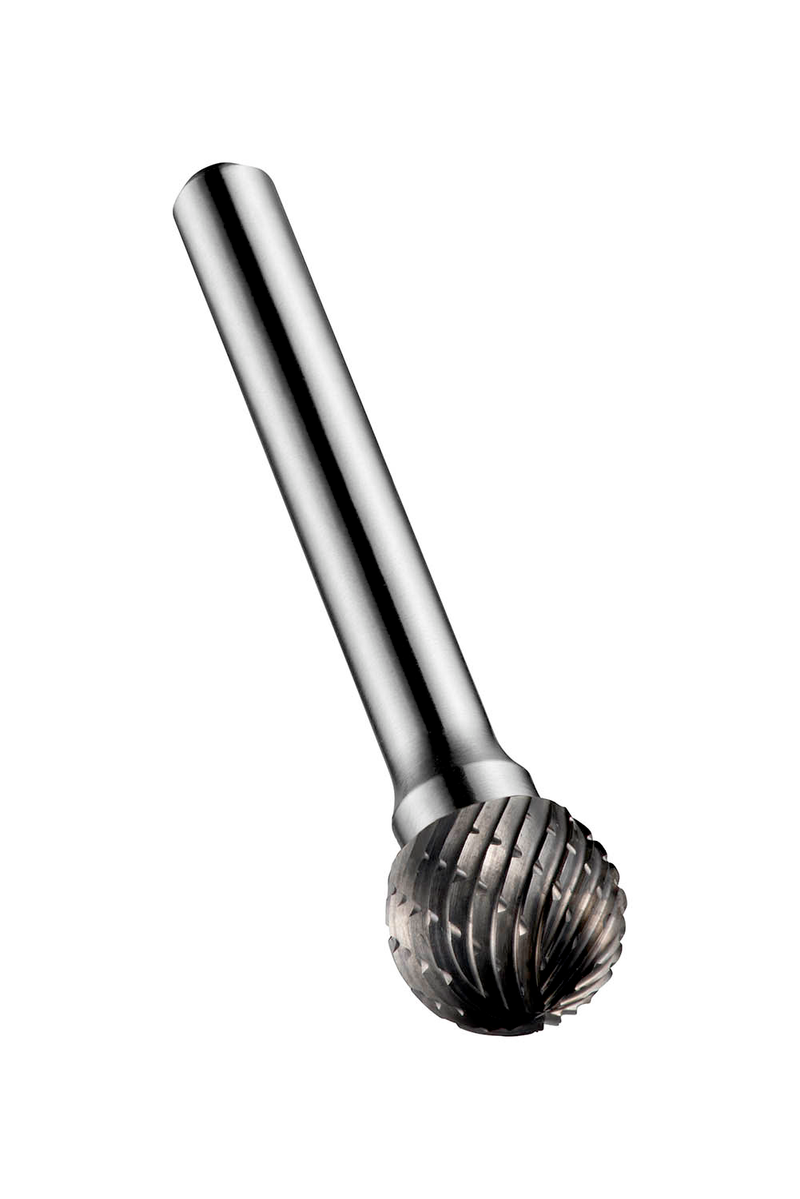

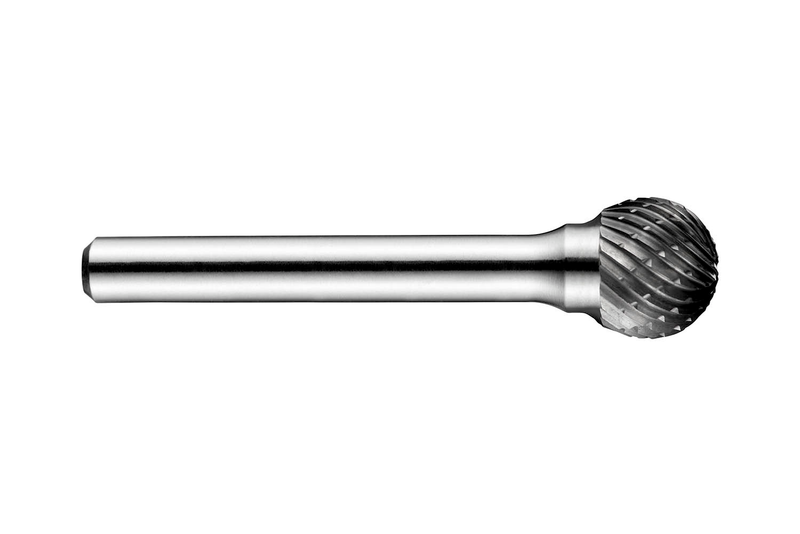

Fraise boule (forme D), diamètre 3mm avec longueur de coupe de 2,5mm, longueur totale de 38mm et queue de 3mm, carbure monobloc avec finition brillante, style de cannelure à double taille DC avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8073.0X3.0
GradeLumineux
Product Number6814122
Product FamilyP807

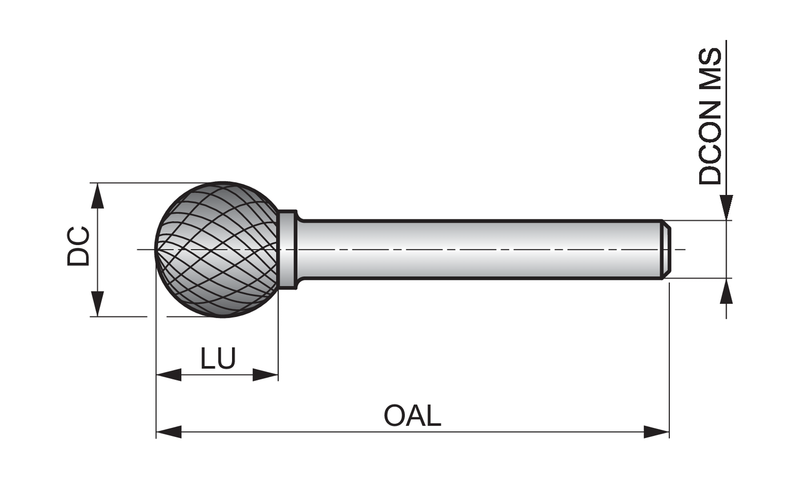

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)2.5 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814122
EAN7320760687635
File Type Download
P8073.0X3.0 — Line Drawing PDF Download
