P8074.0X3.0
P8074.0X3.0
P8074.0X3.0

P8074.0X3.0

UGC DOR6814123
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.86 CAD - $24.86 CAD
$24.86 CAD
$24.86 CAD - $24.86 CAD
$24.86 CAD

Vendu en lots de : 1

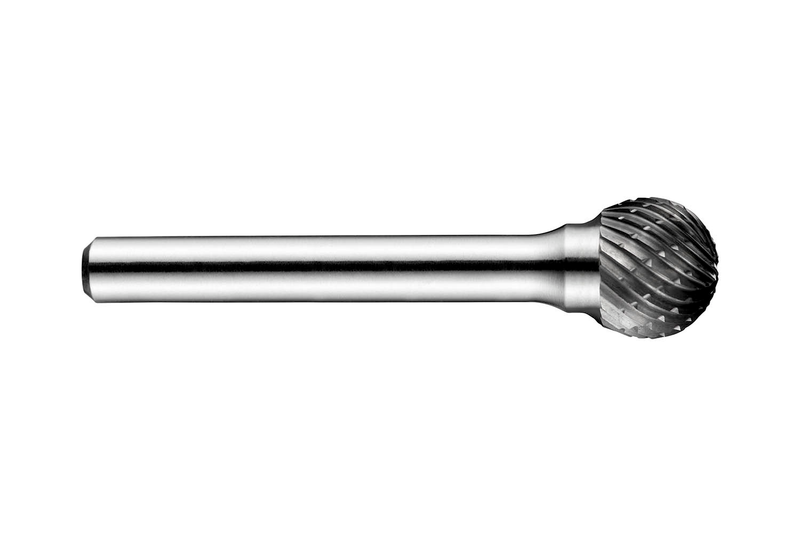

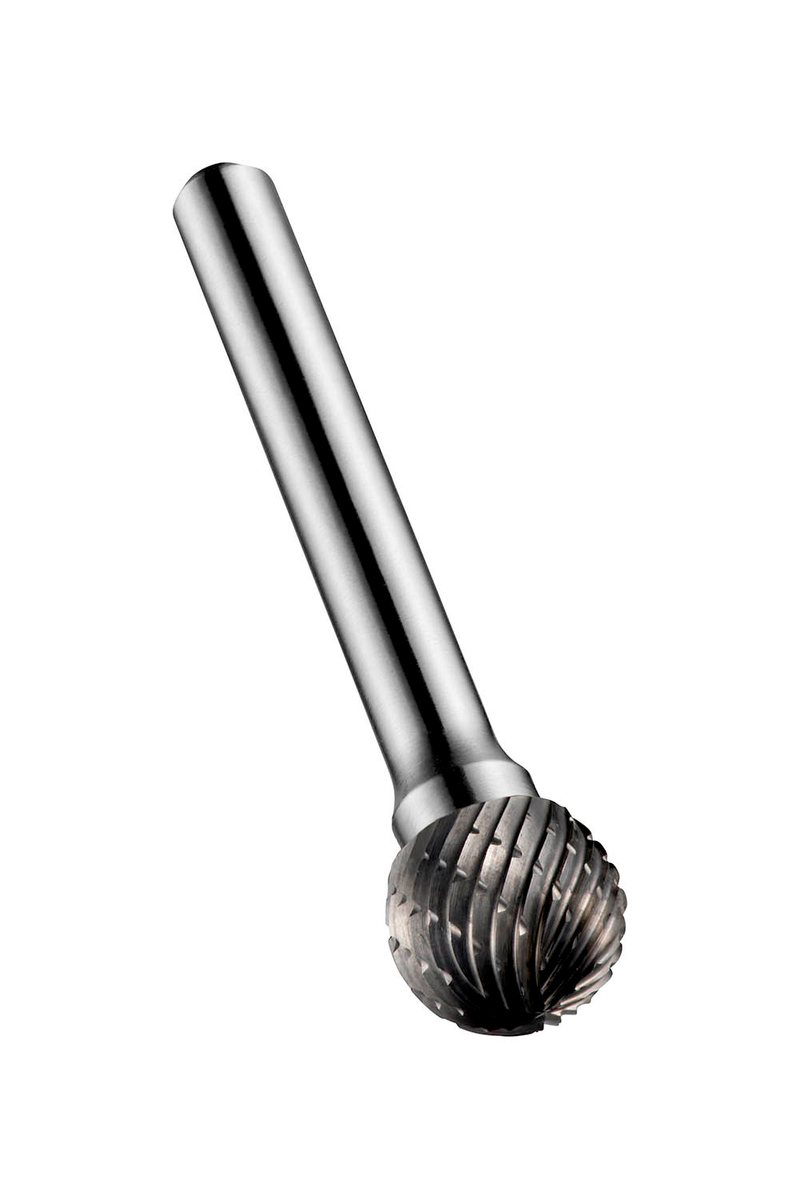

Fraise boule (forme D), diamètre 4mm avec 3.4mm de longueur de coupe, 38mm de longueur totale et queue de 3mm, carbure monobloc avec finition brillante, style de cannelure double coupe DC avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation au soudage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8074.0X3.0
GradeLumineux
Product Number6814123
Product FamilyP807

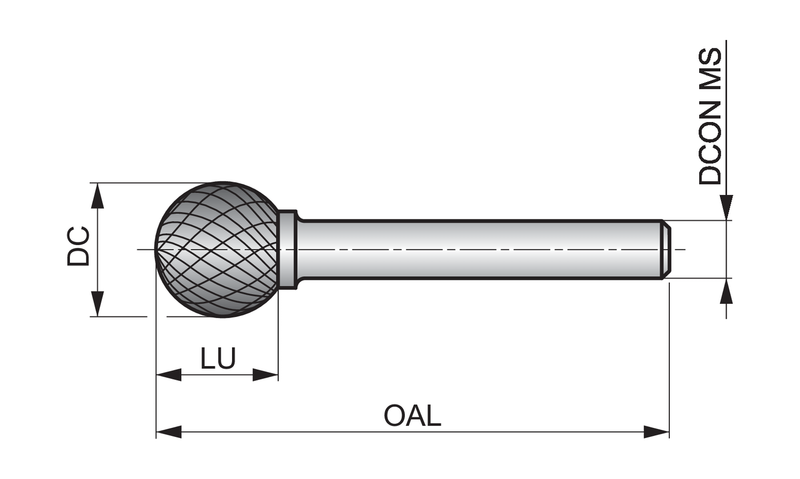

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)3.4 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814123
EAN7320760687642
File Type Download
P8074.0X3.0 — Line Drawing PDF Download
