P8076.3X3.0
P8076.3X3.0
P8076.3X3.0

P8076.3X3.0

UGC DOR6814124
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.89 CAD - $16.89 CAD
$16.89 CAD
$16.89 CAD - $16.89 CAD
$16.89 CAD

Vendu en lots de : 1

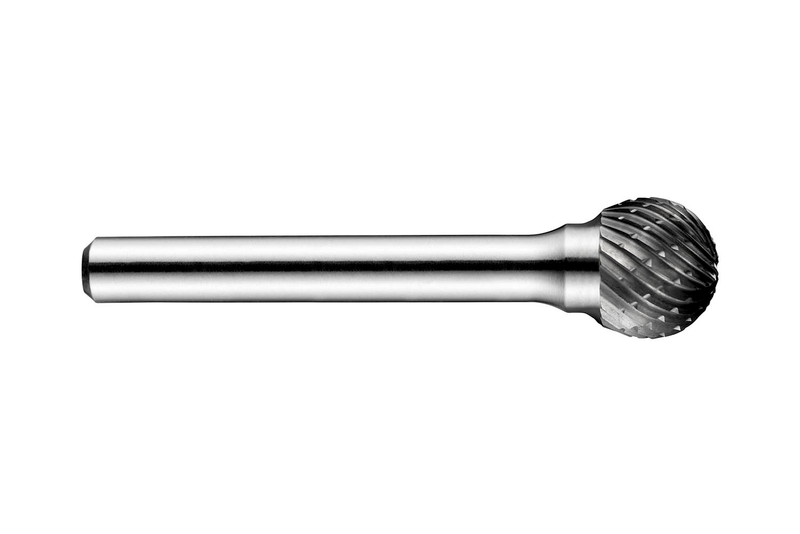

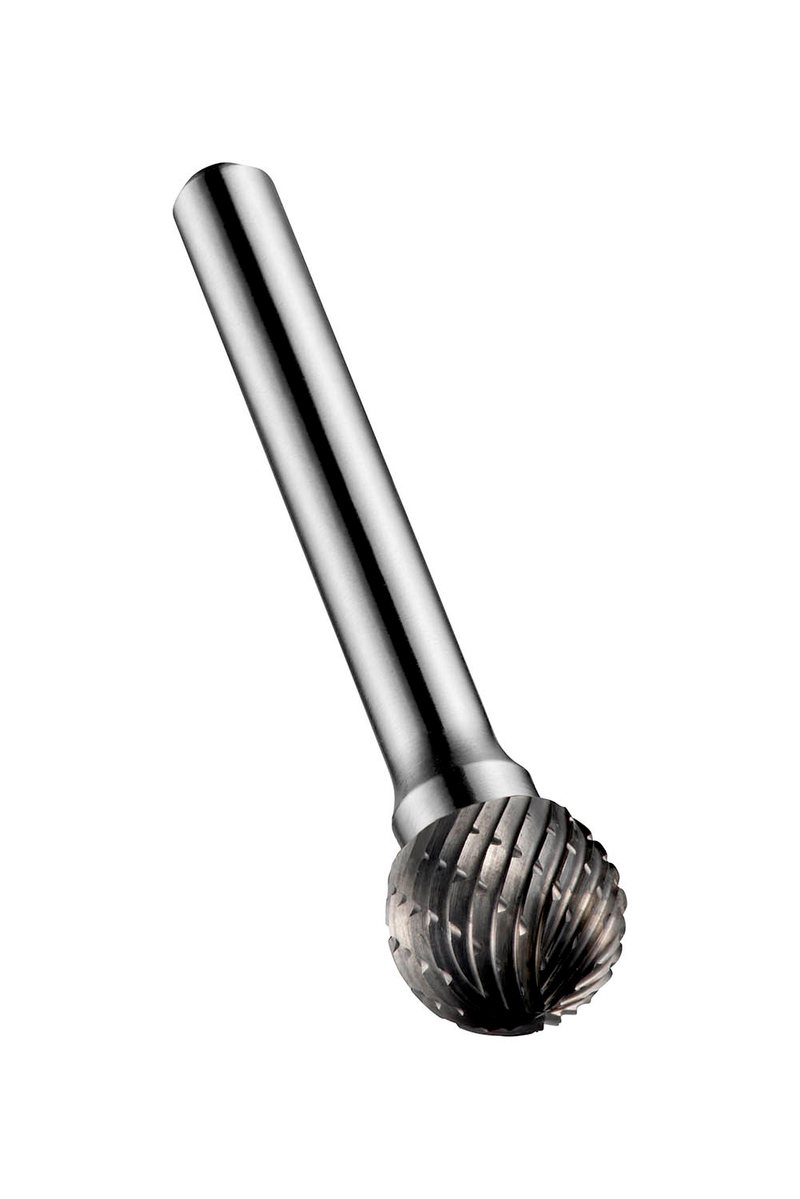

Fraise boule (forme D), diamètre 6,3 mm avec longueur de coupe de 5 mm, longueur totale de 38 mm et queue de 3 mm, avec pointe en carbure, queue en acier trempé et durci et finition brillante, double denture DC avec arêtes rapprochées pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8076.3X3.0
GradeLumineux
Product Number6814124
Product FamilyP807
Dimensions
Cutting Diameter — in (DC)0.248"
Cutting Diameter — mm (DC)6.3 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)5.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814124
EAN7320760687659
File Type Download

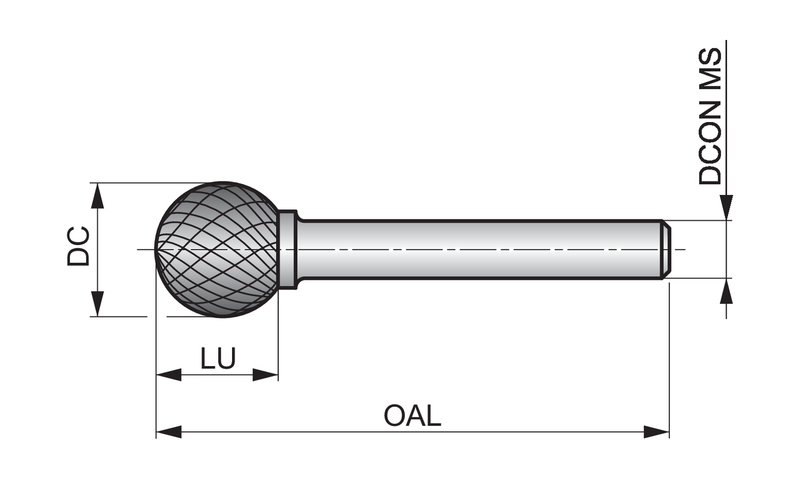

P8076.3X3.0 — Line Drawing PDF Download
