P8076.0X6.0
P8076.0X6.0
P8076.0X6.0

P8076.0X6.0

UGC DOR6814125
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.94 CAD - $18.94 CAD
$18.94 CAD
$18.94 CAD - $18.94 CAD
$18.94 CAD

Vendu en lots de : 1

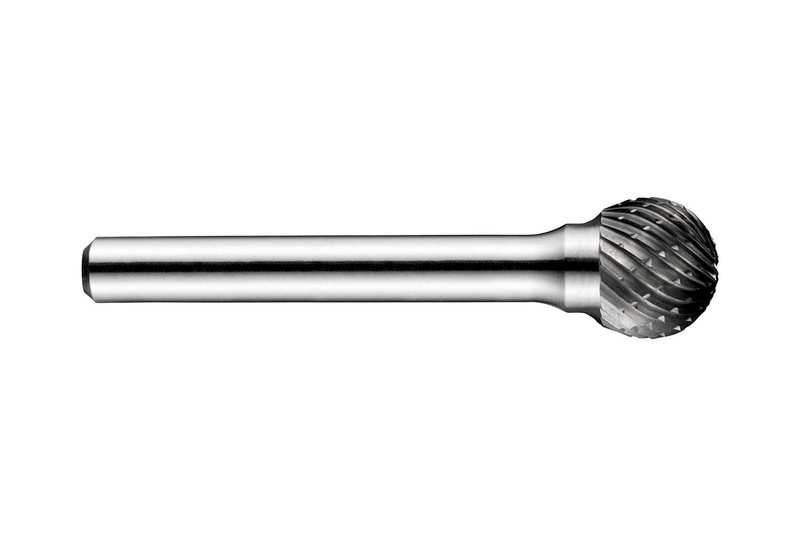

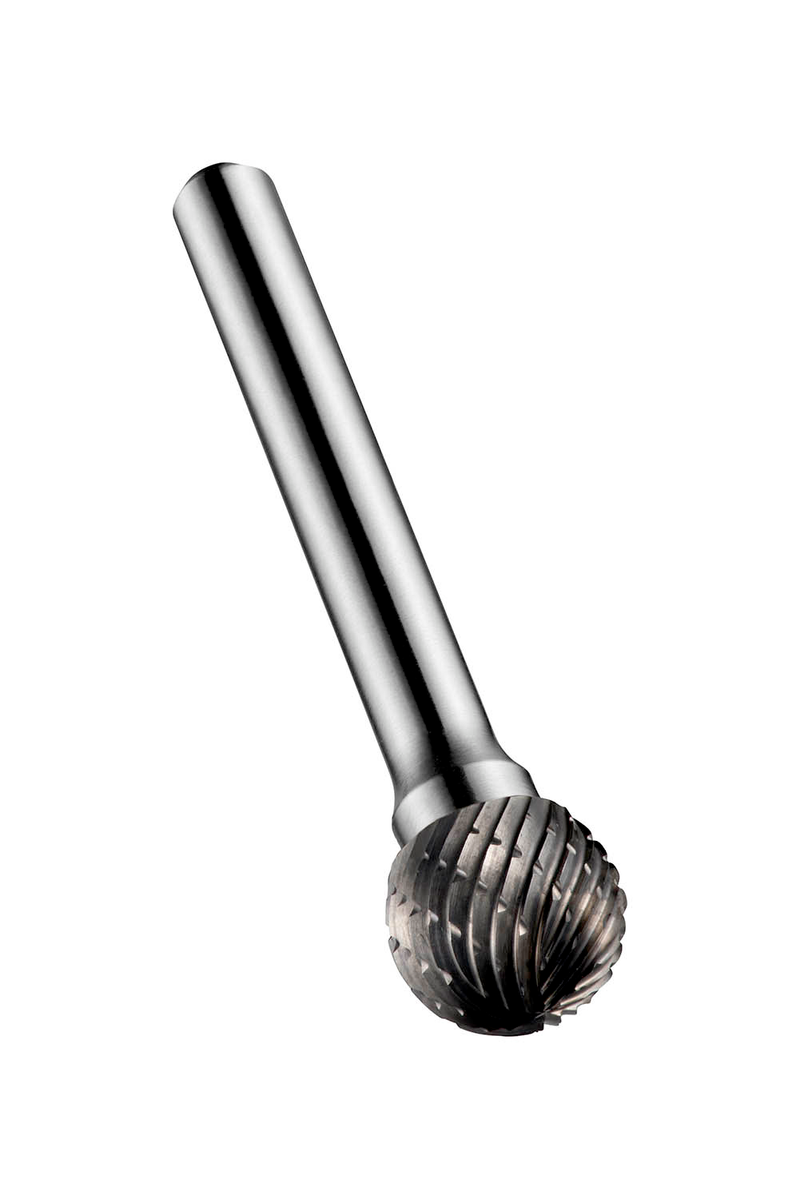

Fraise boule (forme D), diamètre 6 mm, longueur de coupe 4,7 mm, longueur totale 50 mm et queue 6 mm, en carbure monobloc finition brillante, taille de denture double coupe DC à bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8076.0X6.0
GradeLumineux
Product Number6814125
Product FamilyP807

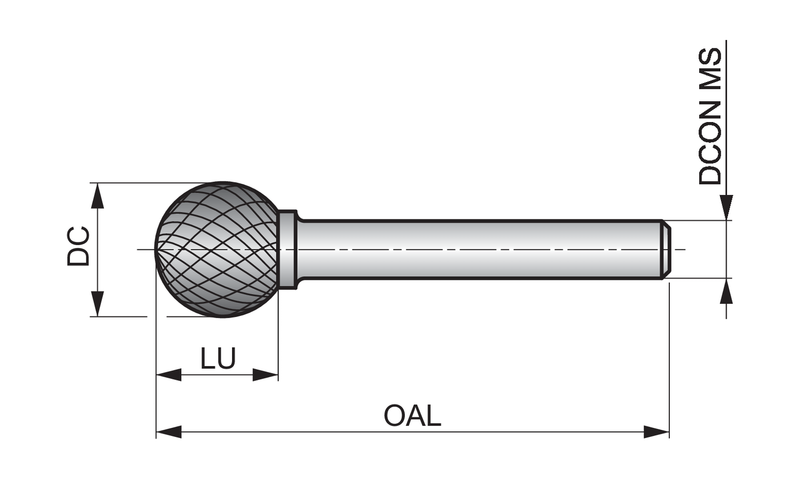

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)4.7 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814125
EAN7320760687666
File Type Download
P8076.0X6.0 — Line Drawing PDF Download
