P80716.0X6.0
P80716.0X6.0
P80716.0X6.0

P80716.0X6.0

UGC DOR6814129
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.06 CAD - $38.06 CAD
$38.06 CAD
$38.06 CAD - $38.06 CAD
$38.06 CAD

Vendu en lots de : 1

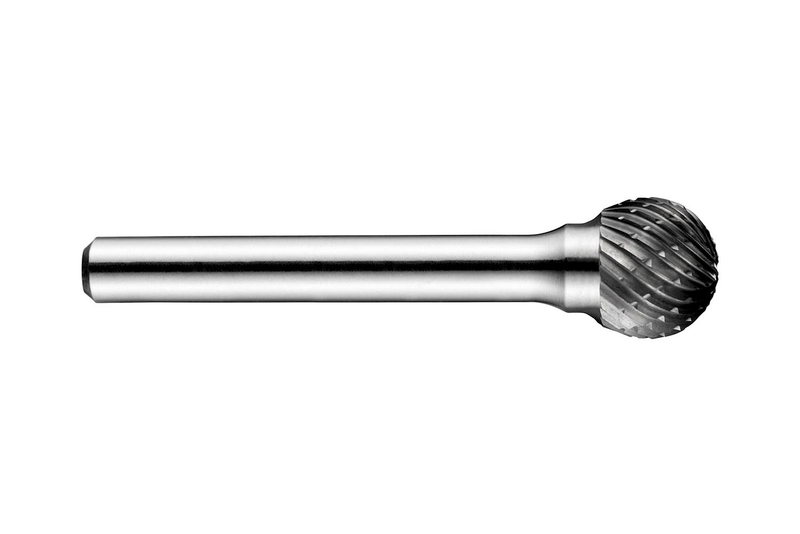

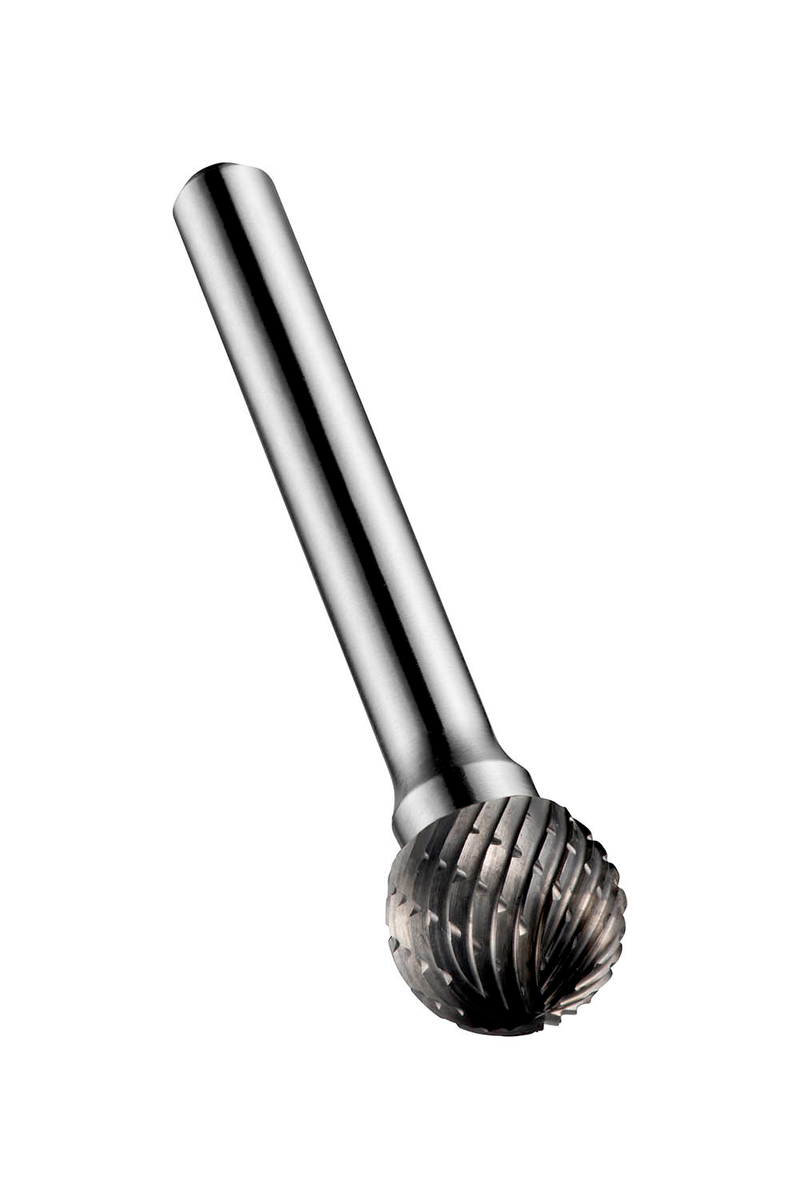

Fraise boule (forme D), diamètre 16mm avec 14mm de longueur de coupe, longueur totale 59mm et queue 6mm, pointe carbure avec queue en acier trempé et revenu et finition brillante, style de coupe double DC avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P80716.0X6.0
GradeLumineux
Product Number6814129
Product FamilyP807
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.3228"
Overall Length — mm (OAL)59.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814129
EAN7320760687703
File Type Download

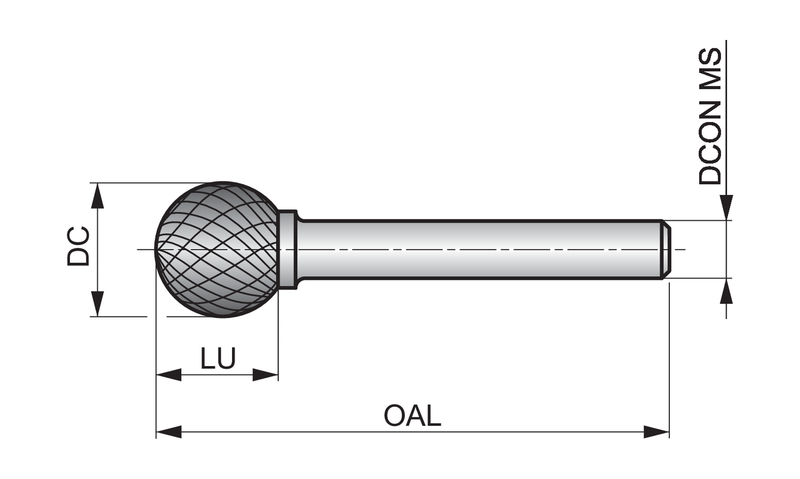

P80716.0X6.0 — Line Drawing PDF Download
