P807C3.0X3.0
P807C3.0X3.0
P807C3.0X3.0

P807C3.0X3.0

UGC DOR6814130
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.97 CAD - $15.97 CAD
$15.97 CAD
$15.97 CAD - $15.97 CAD
$15.97 CAD

Vendu en lots de : 1

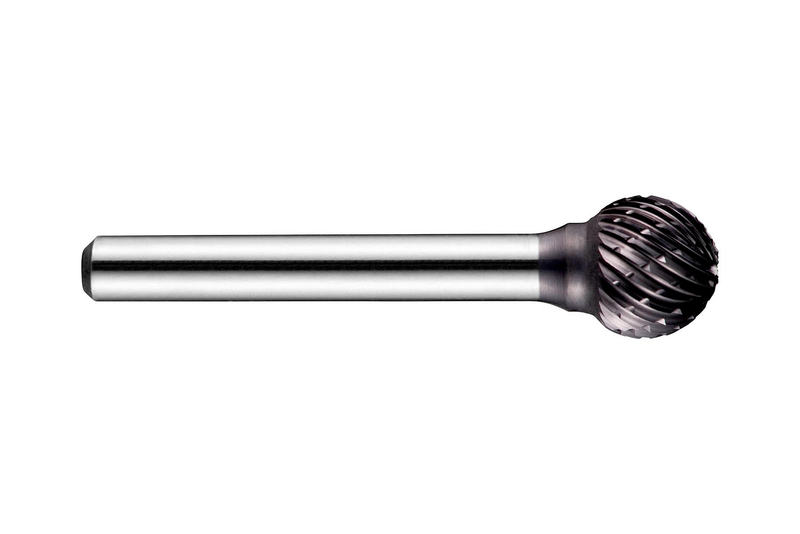

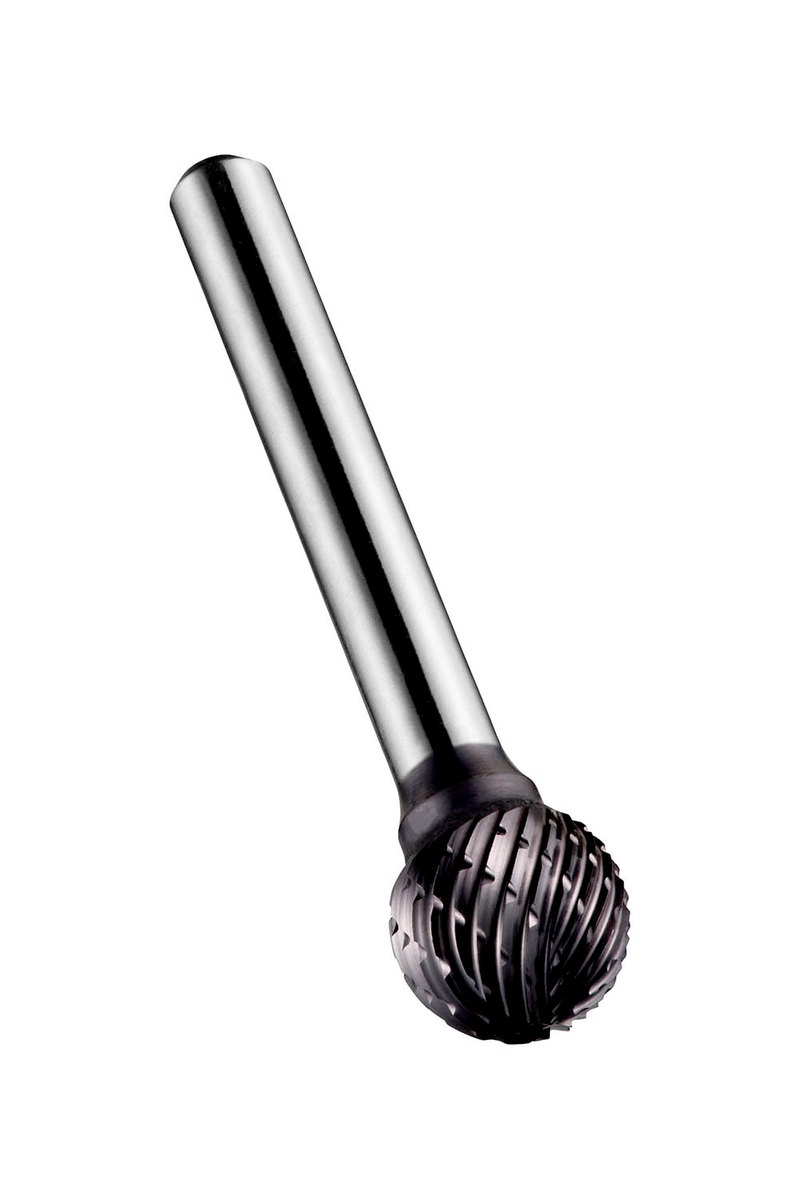

Fraise boule (forme D), diamètre 3 mm avec une longueur de coupe de 2,5 mm, une longueur totale de 38 mm et une queue de 3 mm, en carbure monobloc avec revêtement TiAlN, double taille (DC) à arêtes rapprochées pour la sculpture complexe, la gravure sur métal et la préparation de soudures sur acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P807C3.0X3.0
GradeTiAlN
Product Number6814130
Product FamilyP807C

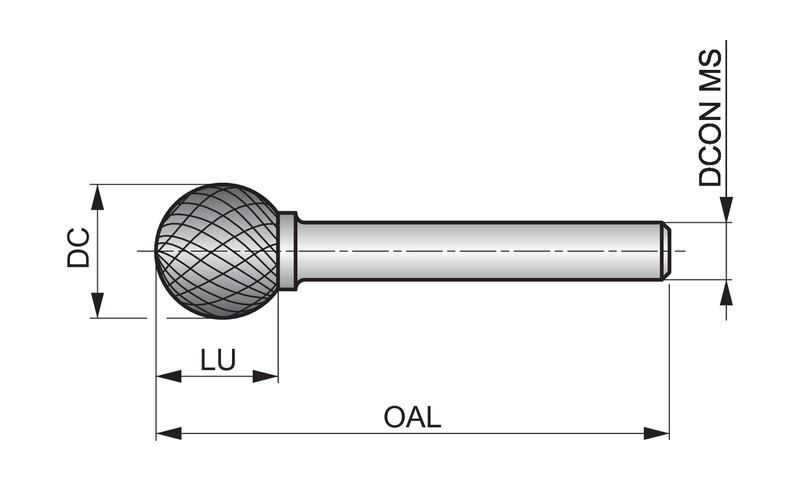

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)2.5 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814130
EAN7320760687710
File Type Download
P807C3.0X3.0 — Line Drawing PDF Download
