P807C9.6X6.0
P807C9.6X6.0
P807C9.6X6.0

P807C9.6X6.0

UGC DOR6814133
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.77 CAD - $31.77 CAD
$31.77 CAD
$31.77 CAD - $31.77 CAD
$31.77 CAD

Vendu en lots de : 1

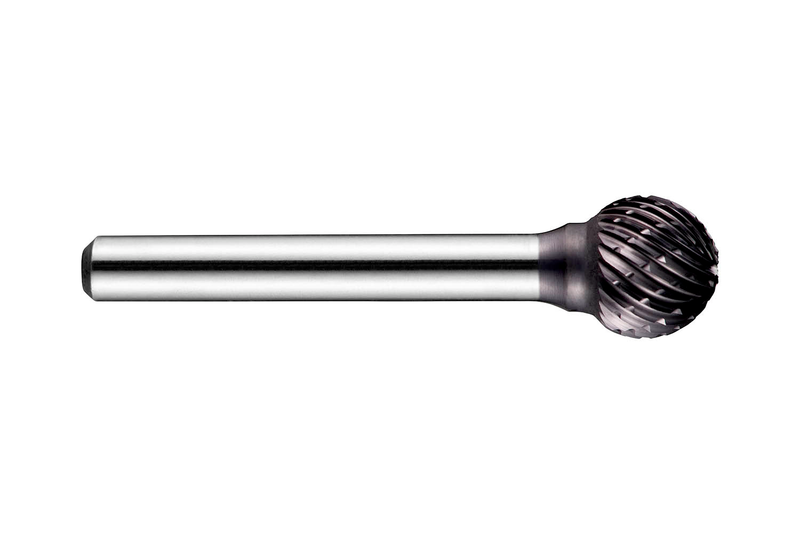

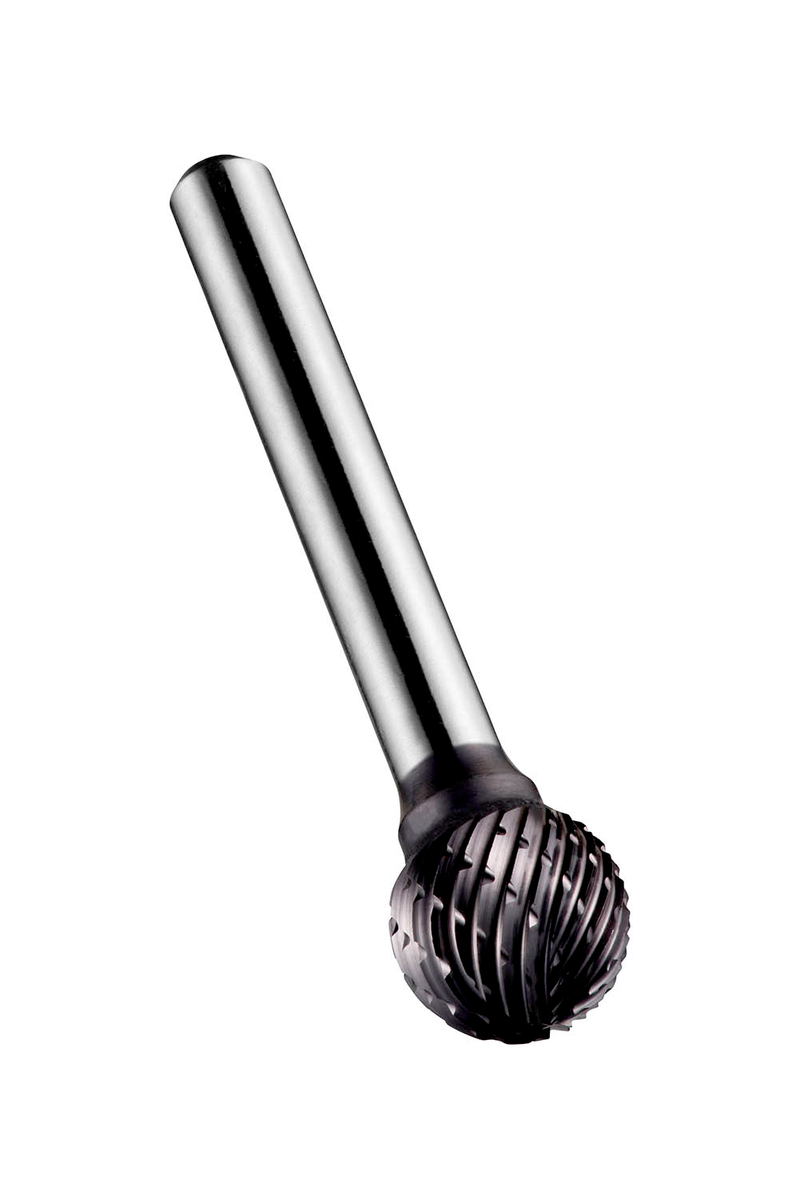

Fraise boule (forme D), diamètre 9,6mm avec longueur de coupe 8mm, longueur totale 54mm et tige 6mm, pointe carbure avec tige en acier trempé et durci et revêtement TiAlN, style de cannelure double coupe DC avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux durcis

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P807C9.6X6.0
GradeTiAlN
Product Number6814133
Product FamilyP807C

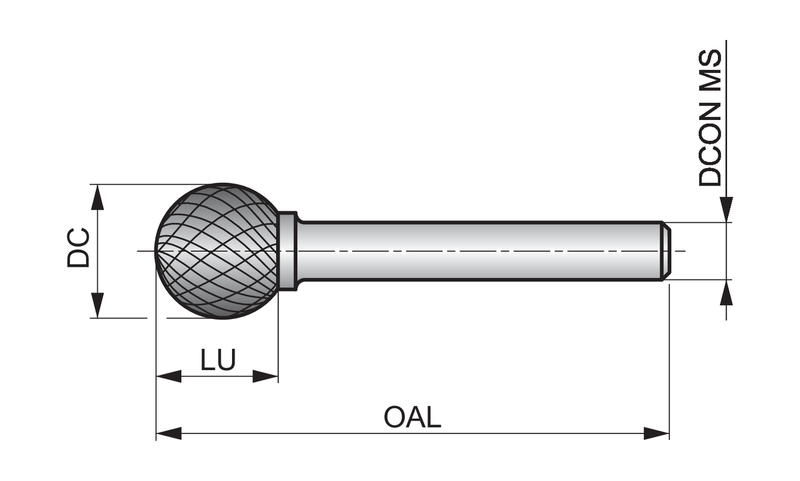

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814133
EAN7320760687741
File Type Download
P807C9.6X6.0 — Line Drawing PDF Download
