P8093.0X3.0
P8093.0X3.0
P8093.0X3.0

P8093.0X3.0

UGC DOR6814135
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

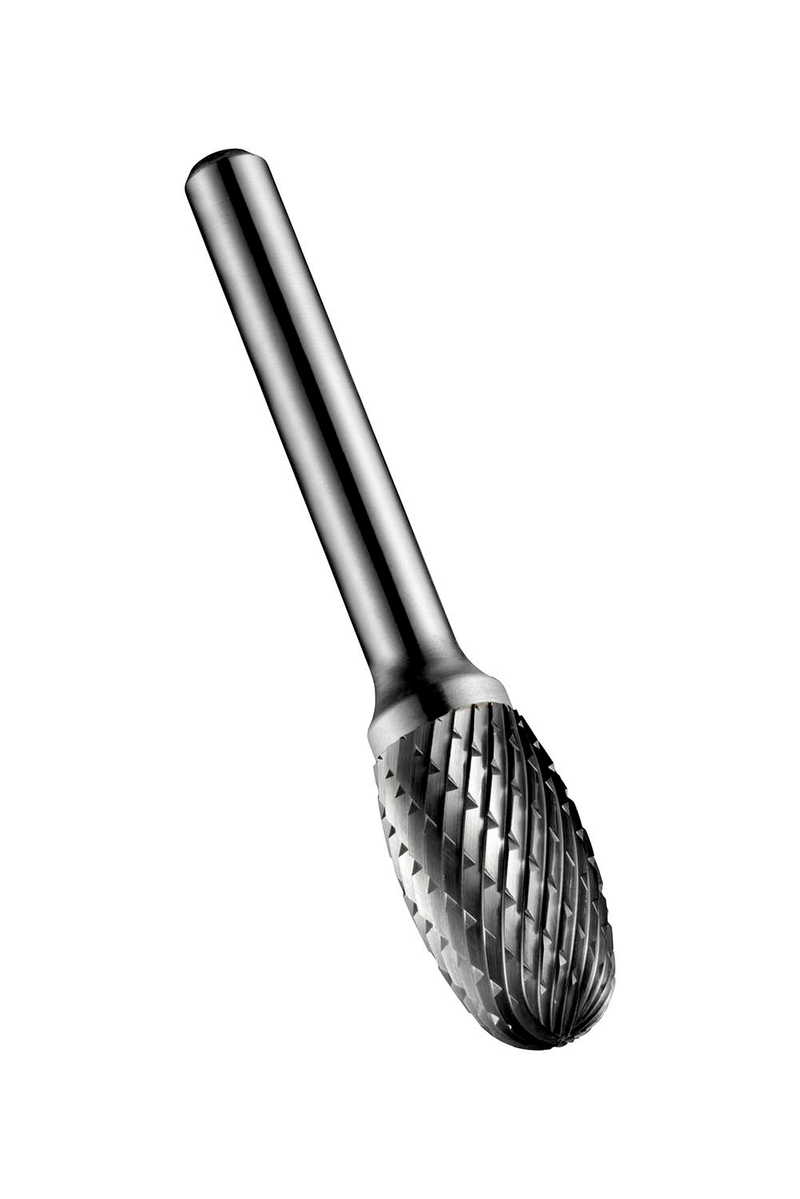

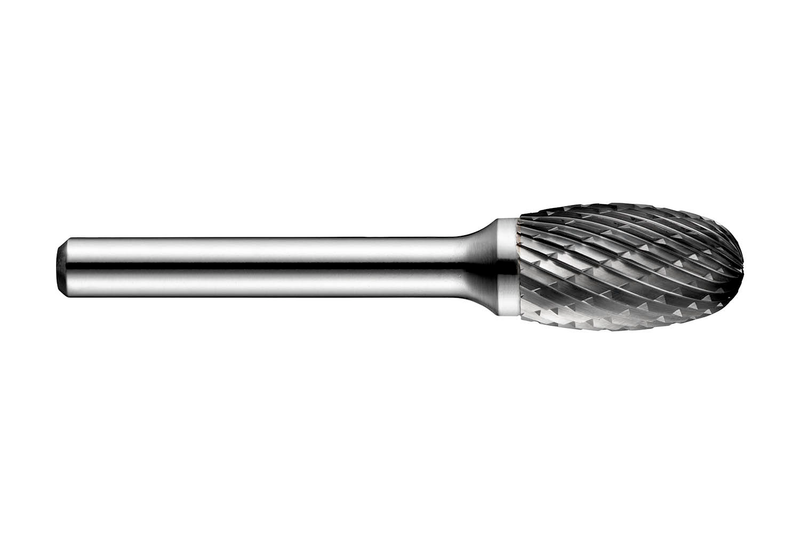

Fraise-lime ovale (forme E), diamètre 3 mm avec une longueur de coupe de 6 mm, longueur totale de 38 mm et queue de 3 mm, en carbure monobloc avec finition brillante, style de denture double taille CC avec arêtes rapprochées pour le contournage de bords arrondis dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8093.0X3.0
GradeLumineux
Product Number6814135
Product FamilyP809

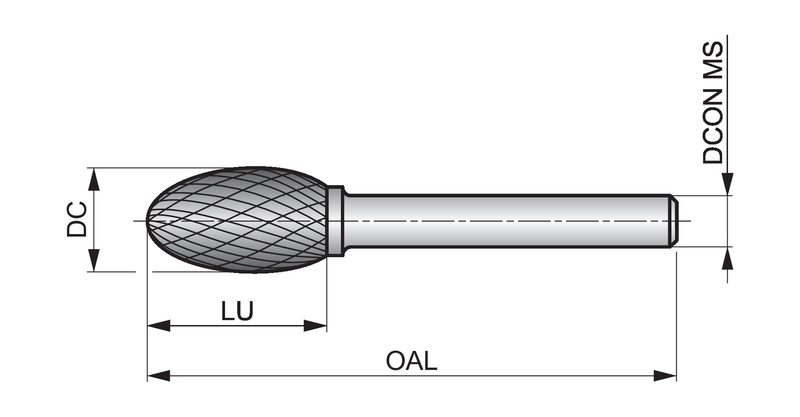

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)6.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814135
EAN7320760687765
File Type Download
P8093.0X3.0 — Line Drawing PDF Download
