P8096.0X6.0
P8096.0X6.0
P8096.0X6.0

P8096.0X6.0

UGC DOR6814137
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.14 CAD - $23.14 CAD
$23.14 CAD
$23.14 CAD - $23.14 CAD
$23.14 CAD

Vendu en lots de : 1

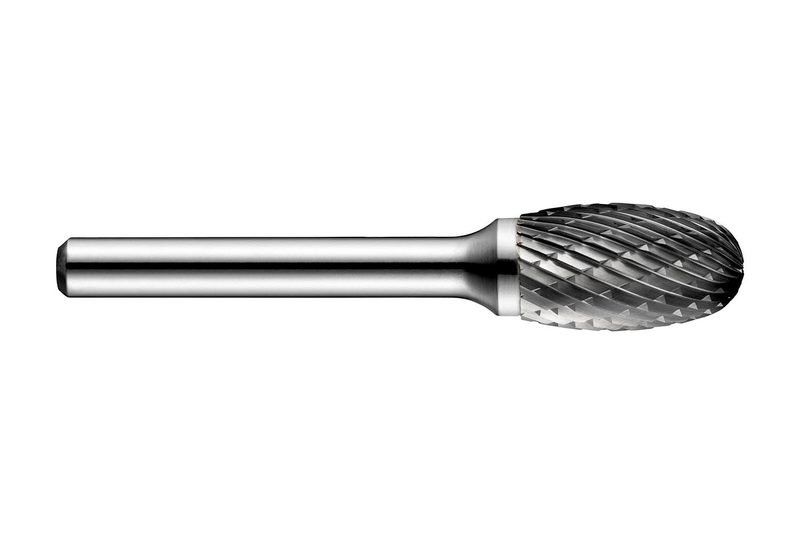

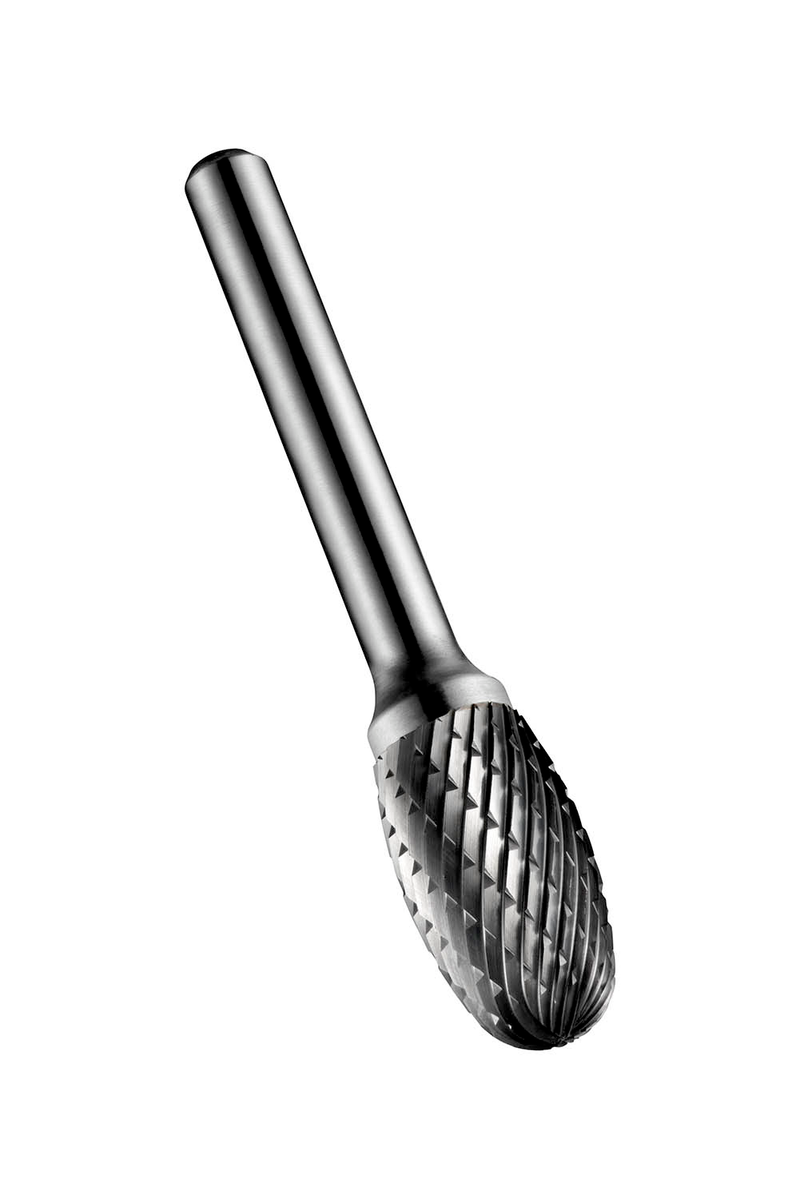

Fraise-lime ovale (forme E), diamètre de 6 mm avec une longueur de coupe de 10 mm, longueur totale de 50 mm et queue de 6 mm, en carbure monobloc avec finition brillante, double coupe DC avec arêtes rapprochées pour le contournage d'arêtes arrondies dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8096.0X6.0
GradeLumineux
Product Number6814137
Product FamilyP809
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)10.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814137
EAN7320760687789
File Type Download

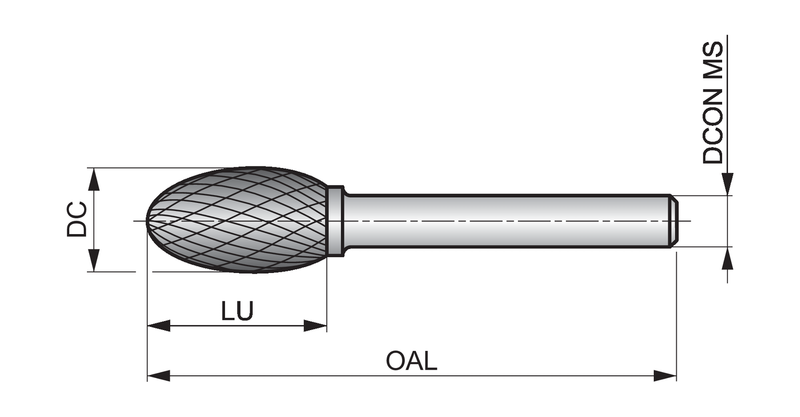

P8096.0X6.0 — Line Drawing PDF Download
