P8099.6X6.0
P8099.6X6.0
P8099.6X6.0

P8099.6X6.0

UGC DOR6814139
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.63 CAD - $27.63 CAD
$27.63 CAD
$27.63 CAD - $27.63 CAD
$27.63 CAD

Vendu en lots de : 1

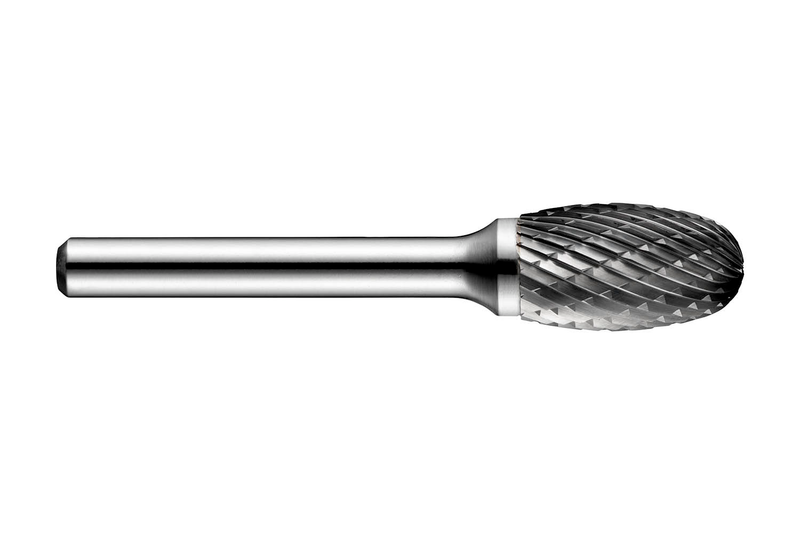

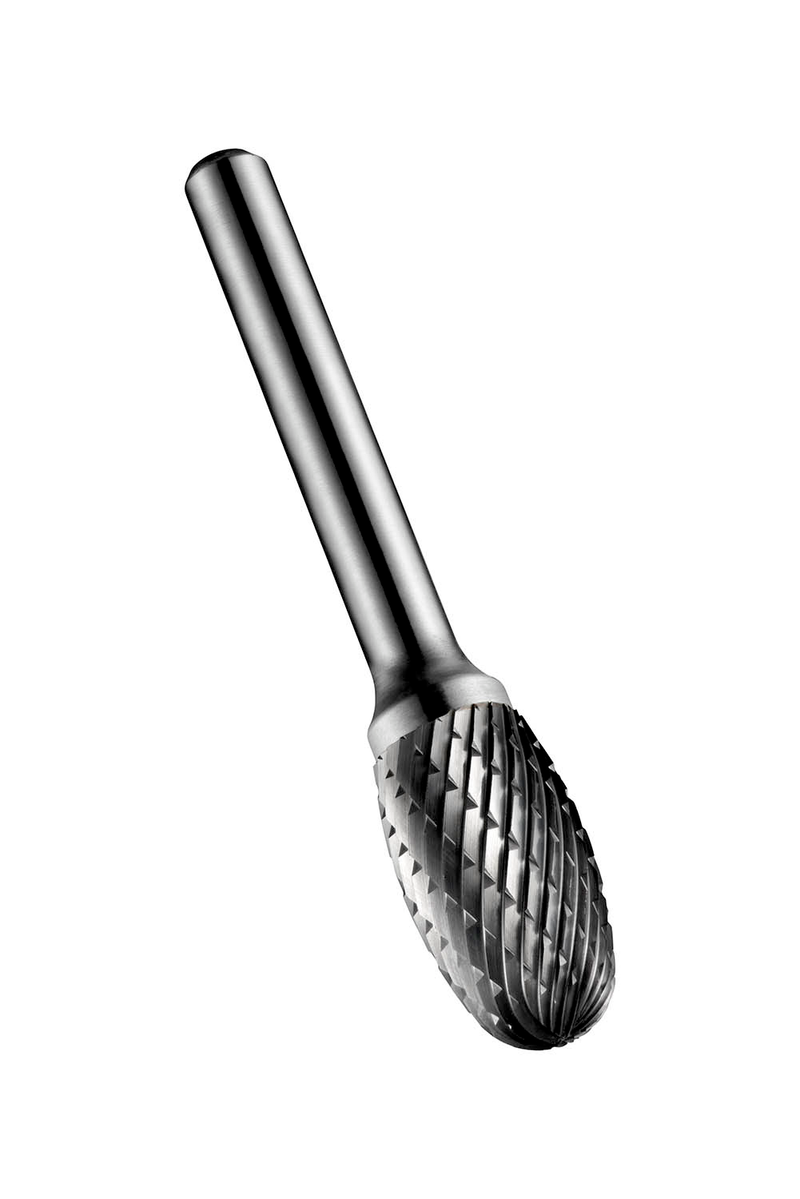

Fraise-lime ovale (forme E), diamètre 9,6 mm avec longueur de coupe de 16 mm, longueur totale de 60 mm et queue de 6 mm, à pastille de carbure avec queue en acier trempé et revenu et finition brillante, double denture DC à espacement serré pour le contournage d'arêtes arrondies dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8099.6X6.0
GradeLumineux
Product Number6814139
Product FamilyP809
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)16.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814139
EAN7320760687802
File Type Download

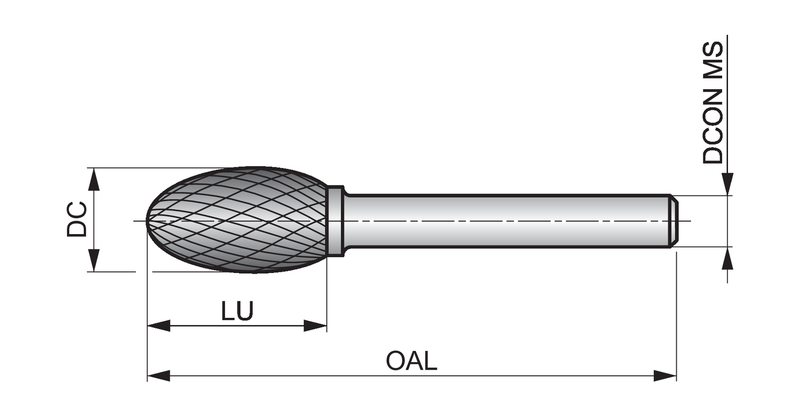

P8099.6X6.0 — Line Drawing PDF Download
