P80916.0X6.0
P80916.0X6.0
P80916.0X6.0

P80916.0X6.0

UGC DOR6814141
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.51 CAD - $56.51 CAD
$56.51 CAD
$56.51 CAD - $56.51 CAD
$56.51 CAD

Vendu en lots de : 1

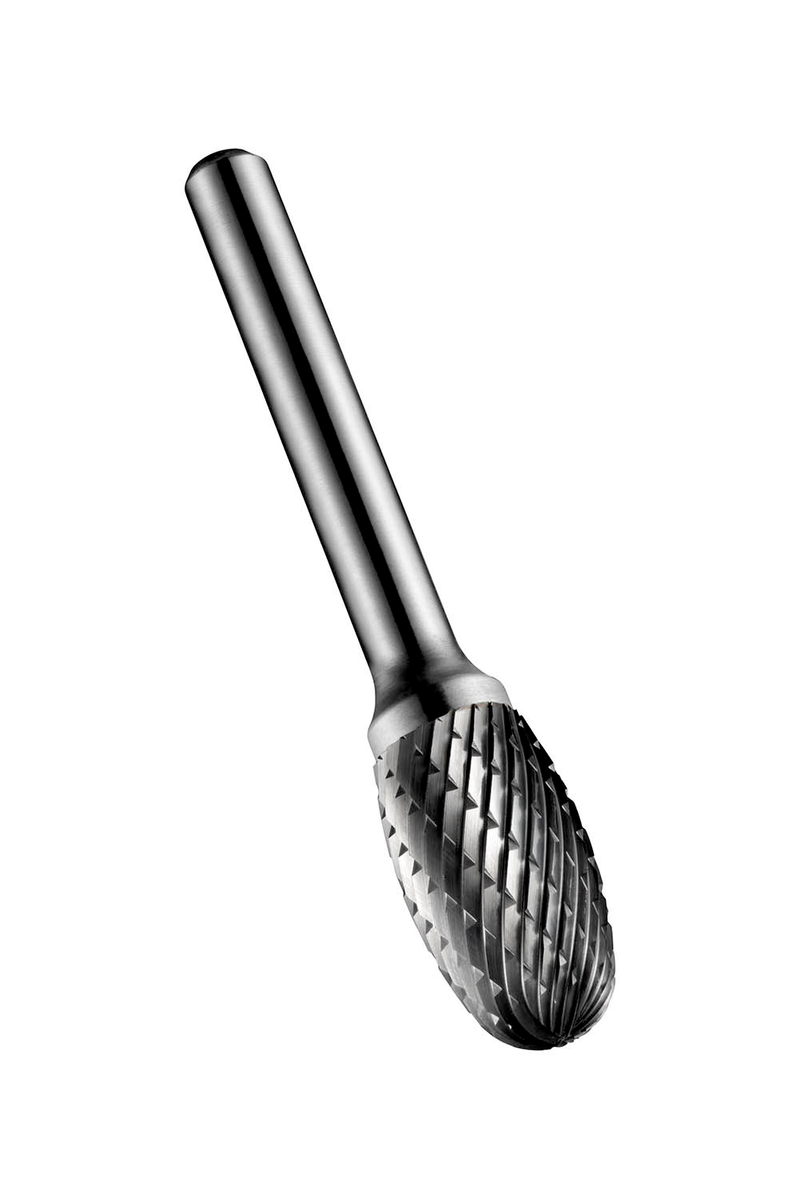

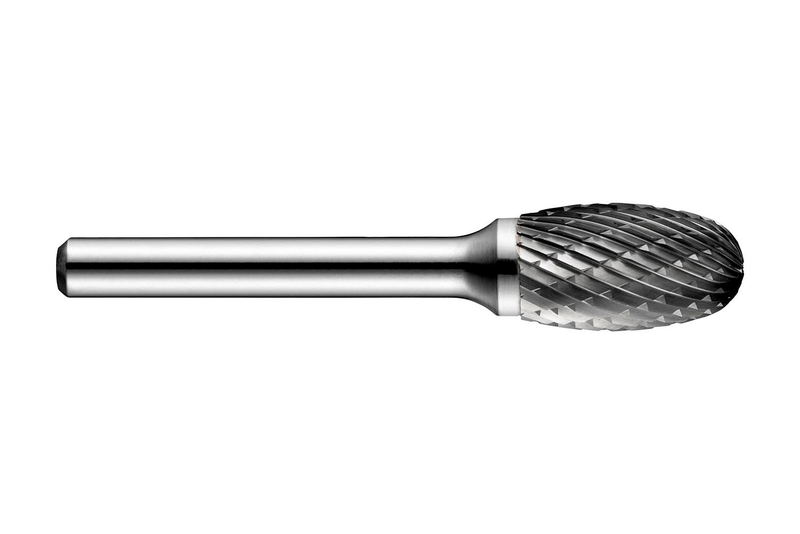

Fraise-lime ovale (forme E), diamètre 16mm avec 25mm de longueur de coupe, 70mm de longueur totale et 6mm de queue, carbure monobloc avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour le contournage d'arêtes arrondies dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P80916.0X6.0
GradeLumineux
Product Number6814141
Product FamilyP809

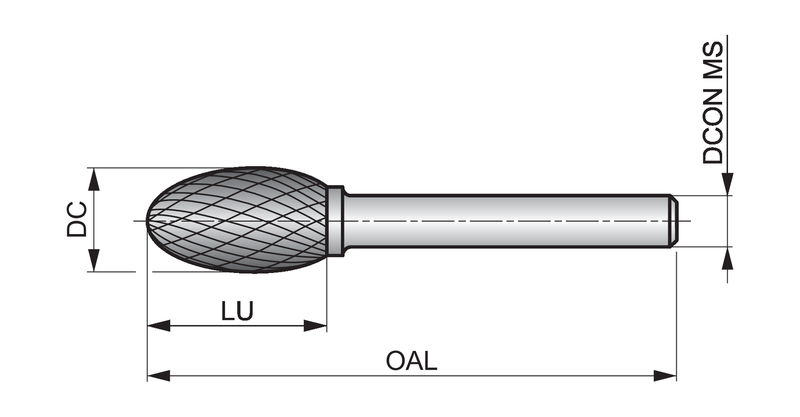

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814141
EAN7320760687826
File Type Download
P80916.0X6.0 — Line Drawing PDF Download
