P811C6.0X6.0
P811C6.0X6.0
P811C6.0X6.0

P811C6.0X6.0

UGC DOR6814150
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.94 CAD - $27.94 CAD
$27.94 CAD
$27.94 CAD - $27.94 CAD
$27.94 CAD

Vendu en lots de : 1

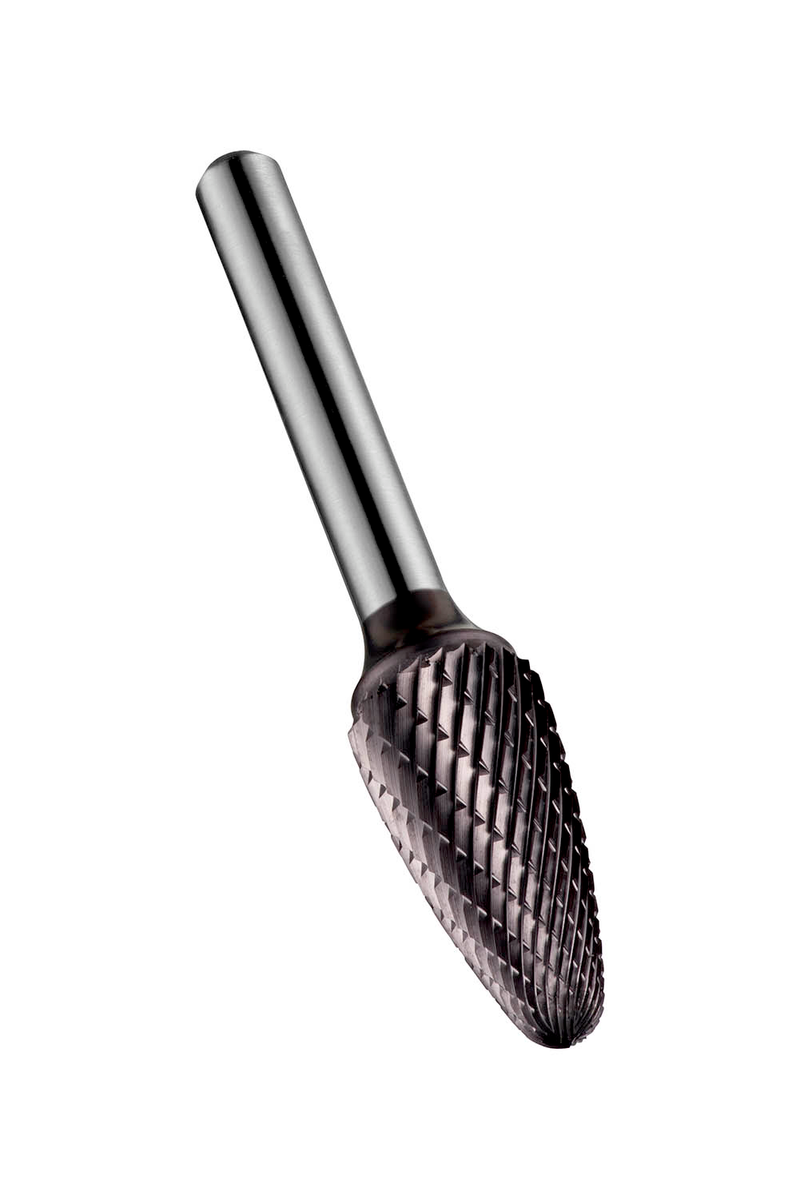

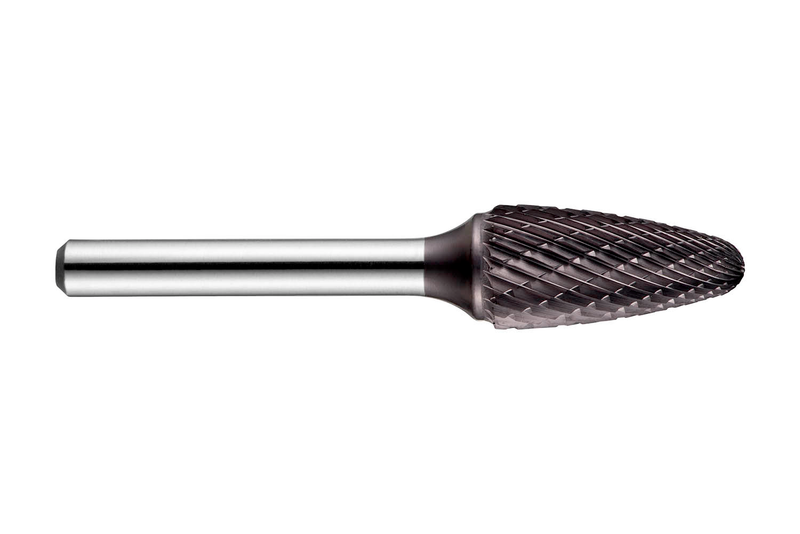

Fraise-lime rotative à bout rond (forme F), diamètre 6mm avec longueur de coupe 18mm, longueur totale 50mm et queue 6mm, carbure monobloc avec revêtement TiAlN, style de coupe DC double avec arêtes rapprochées pour le contournage multi-angle, l'arrondi des bords et la coupe dans des zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P811C6.0X6.0
GradeTiAlN
Product Number6814150
Product FamilyP811C

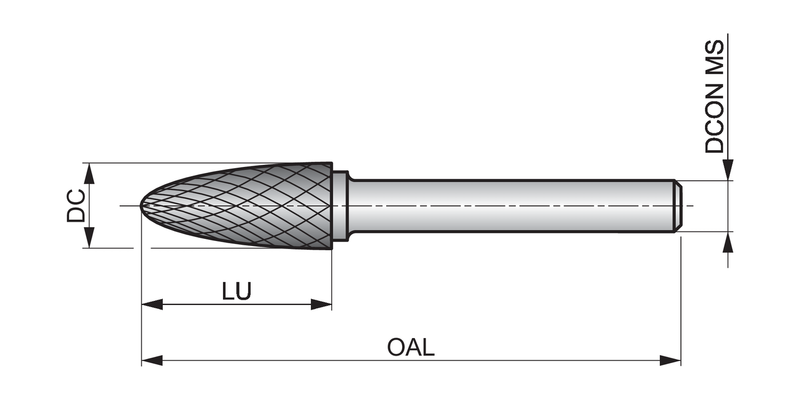

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814150
EAN7320760687918
File Type Download
P811C6.0X6.0 — Line Drawing PDF Download
