P8153.0X3.0
P8153.0X3.0
P8153.0X3.0

P8153.0X3.0

UGC DOR6814164
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

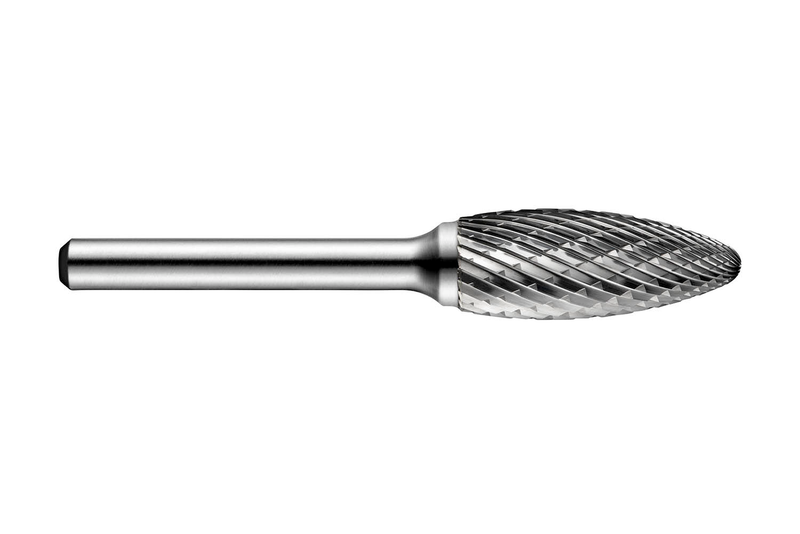

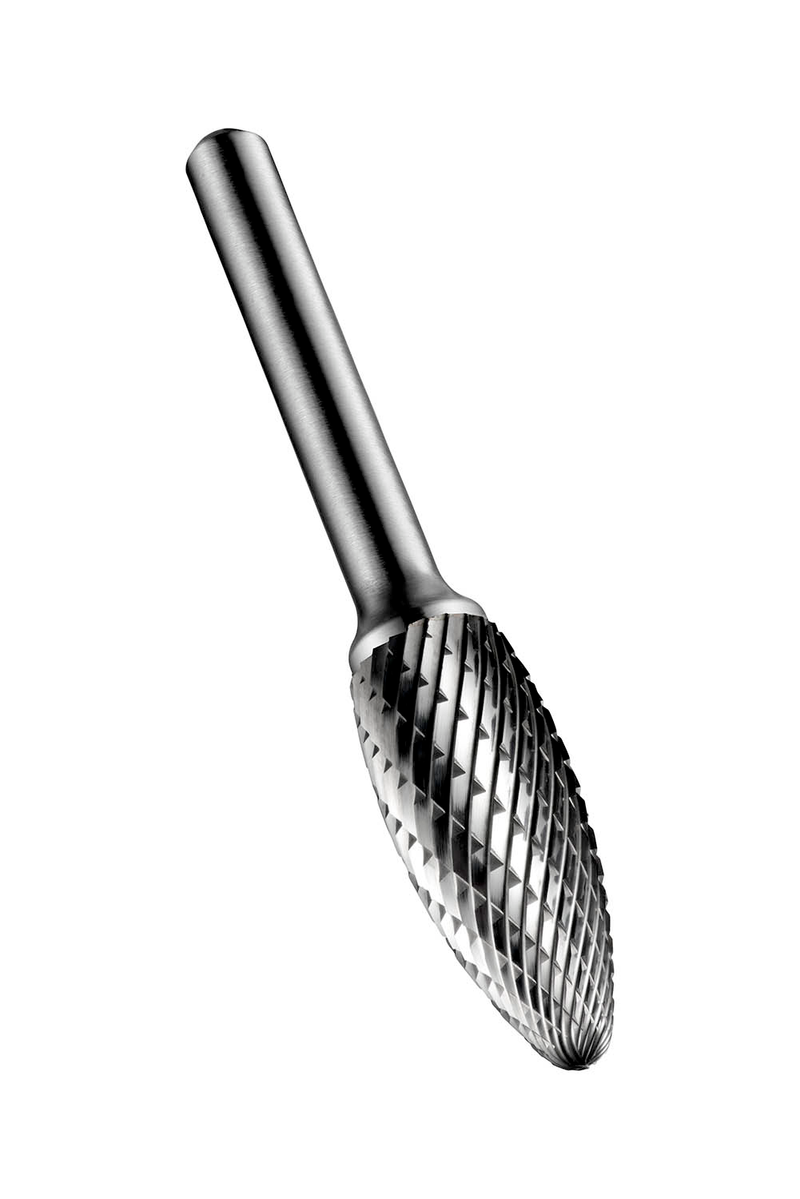

Fraise flamme (forme H), diamètre 3mm avec une longueur de coupe de 6mm, longueur totale de 38mm et queue de 3mm, carbure monobloc avec finition brillante, double coupe avec bords rapprochés pour le contournage des bords arrondis et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8153.0X3.0
GradeLumineux
Product Number6814164
Product FamilyP815

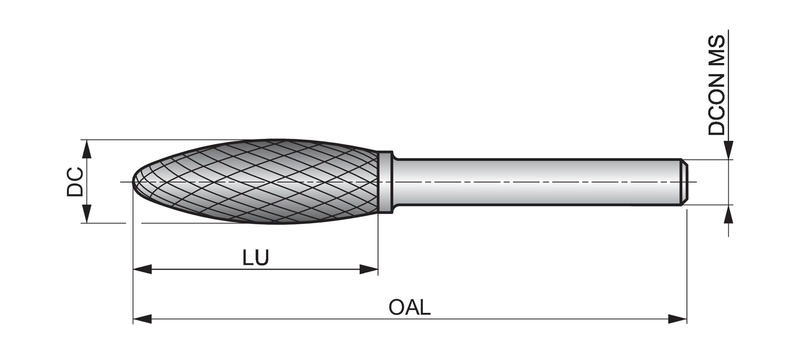

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)6.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814164
EAN7320760688052
File Type Download
P8153.0X3.0 — Line Drawing PDF Download
