P8158.0X6.0
P8158.0X6.0
P8158.0X6.0

P8158.0X6.0

UGC DOR6814166
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.51 CAD - $28.51 CAD
$28.51 CAD
$28.51 CAD - $28.51 CAD
$28.51 CAD

Vendu en lots de : 1

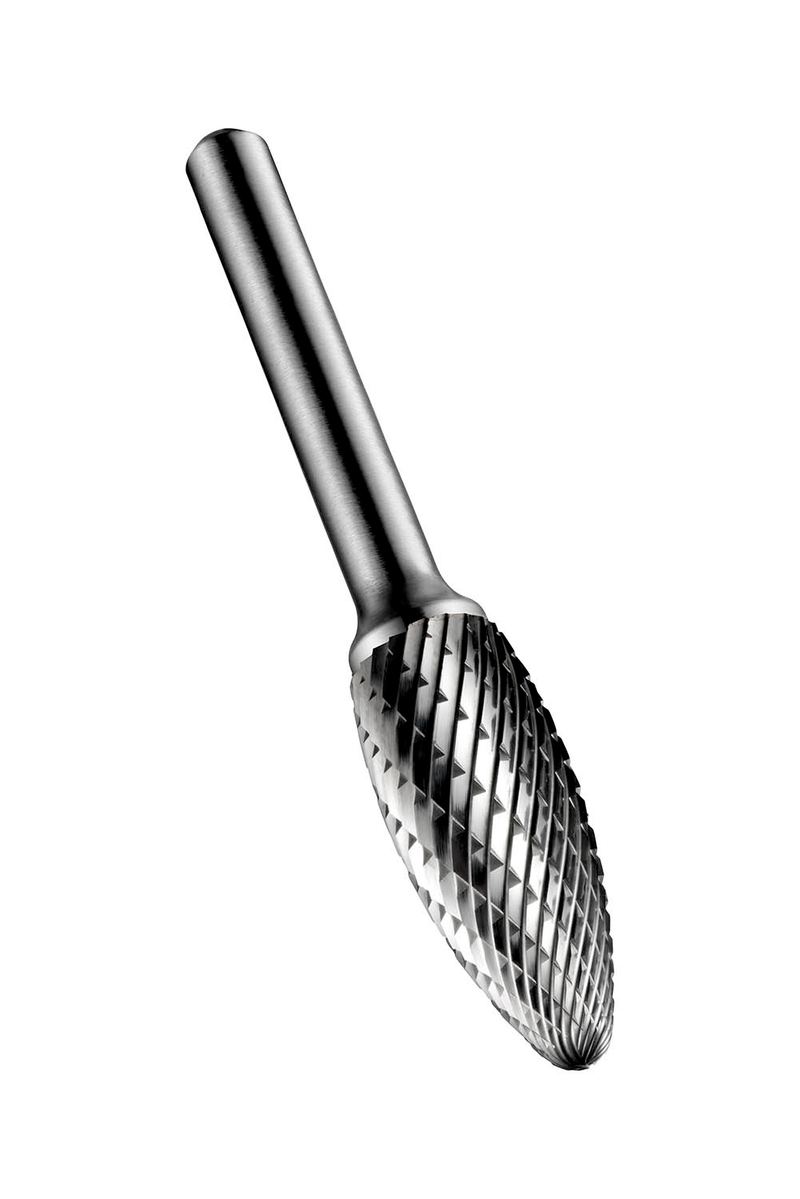

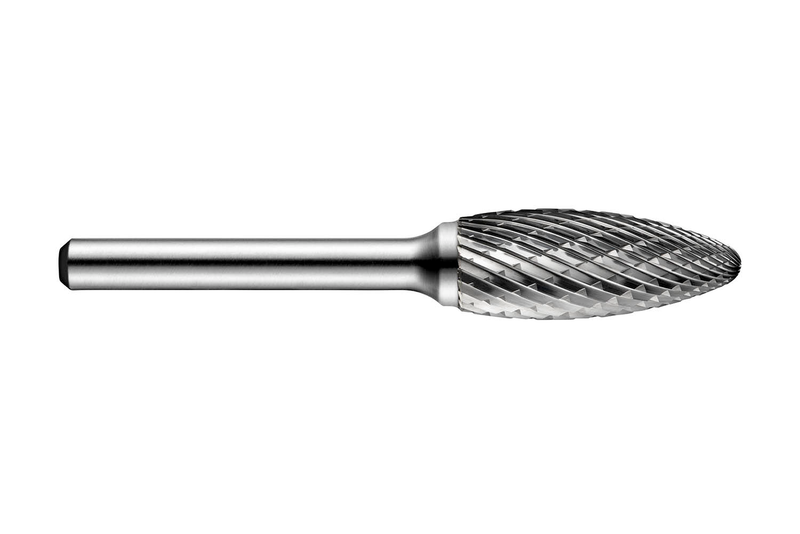

Fraise flamme (forme H), diamètre 8mm avec longueur de coupe 19mm, longueur totale 64mm et queue 6mm, pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de coupe double DC avec bords rapprochés pour le contournage à bords arrondis et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8158.0X6.0
GradeLumineux
Product Number6814166
Product FamilyP815

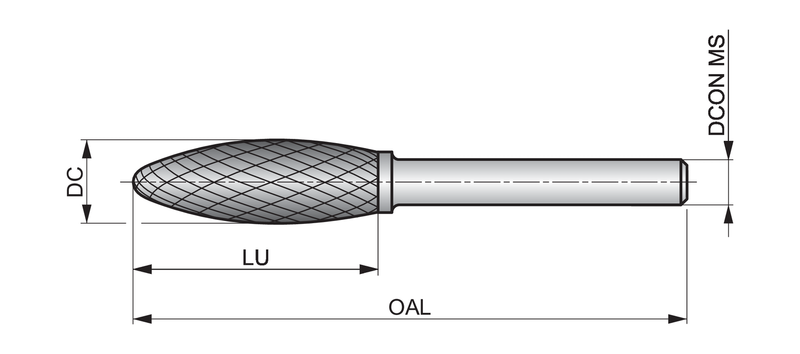

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814166
EAN7320760688076
File Type Download
P8158.0X6.0 — Line Drawing PDF Download
