P8159.6X6.0
P8159.6X6.0
P8159.6X6.0

P8159.6X6.0

UGC DOR6814167
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.37 CAD - $49.37 CAD
$49.37 CAD
$49.37 CAD - $49.37 CAD
$49.37 CAD

Vendu en lots de : 1

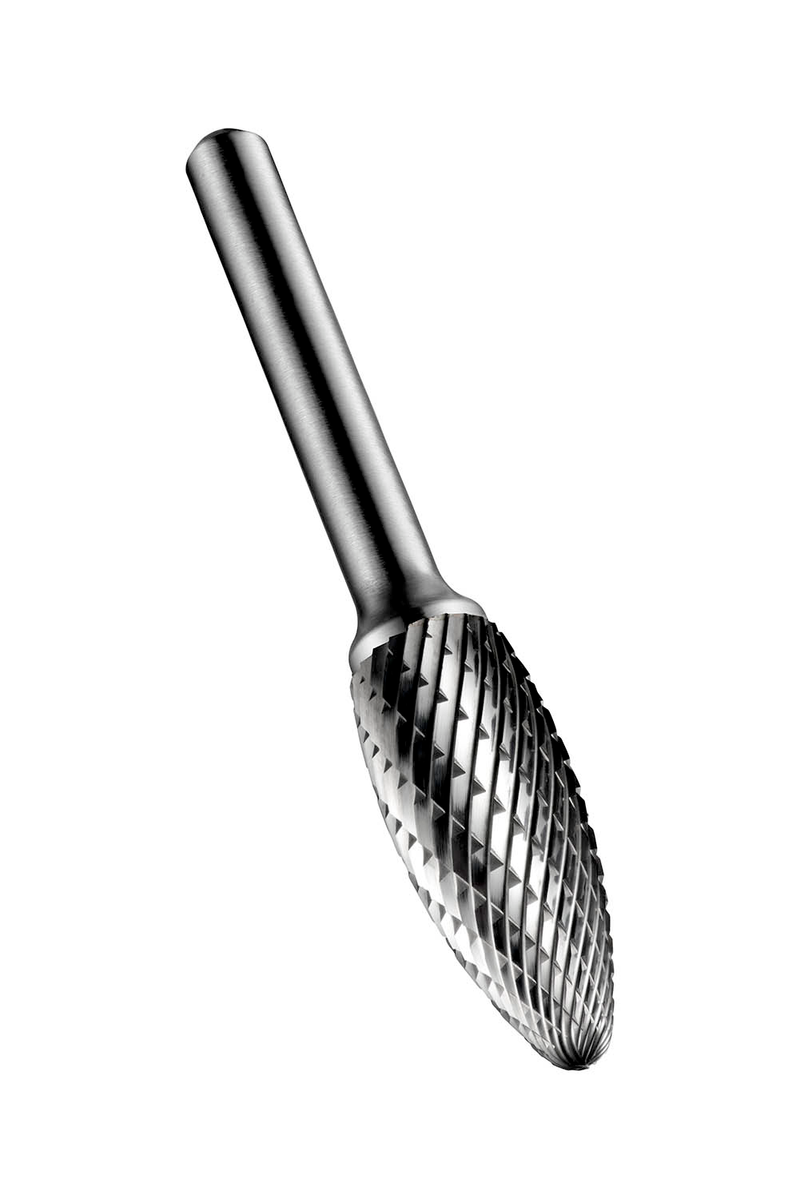

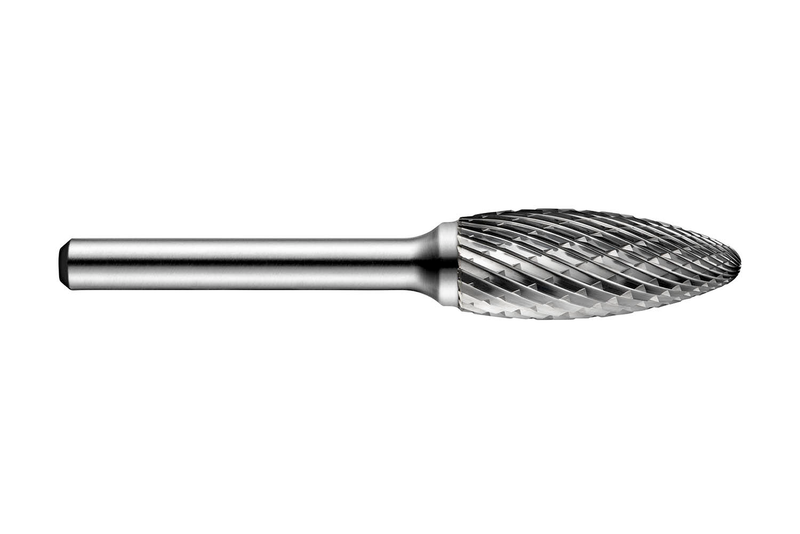

Fraise flamme (forme H), diamètre 9,6 mm avec longueur de coupe de 19 mm, longueur totale de 65 mm et tige de 6 mm, à pastilles de carbure avec tige en acier trempé et renforcé et finition brillante, double denture DC avec bords rapprochés pour le contournage de bords arrondis et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8159.6X6.0
GradeLumineux
Product Number6814167
Product FamilyP815

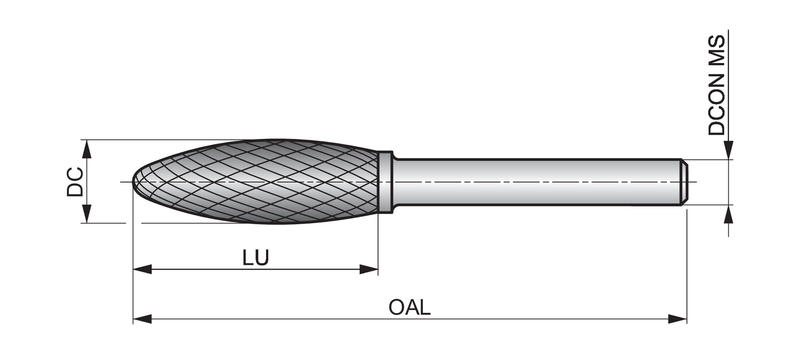

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5591"
Overall Length — mm (OAL)65.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814167
EAN7320760688083
File Type Download
P8159.6X6.0 — Line Drawing PDF Download
