P81512.7X6.0
P81512.7X6.0
P81512.7X6.0

P81512.7X6.0

UGC DOR6814168
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.71 CAD - $57.71 CAD
$57.71 CAD
$57.71 CAD - $57.71 CAD
$57.71 CAD

Vendu en lots de : 1

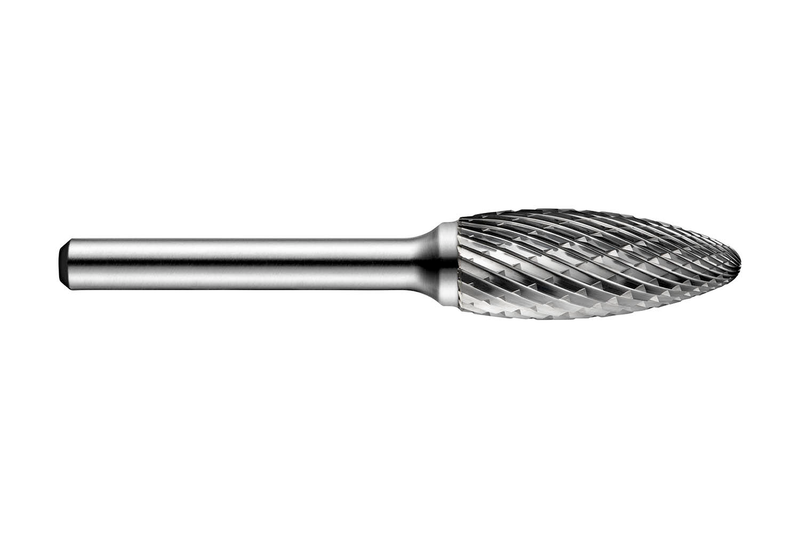

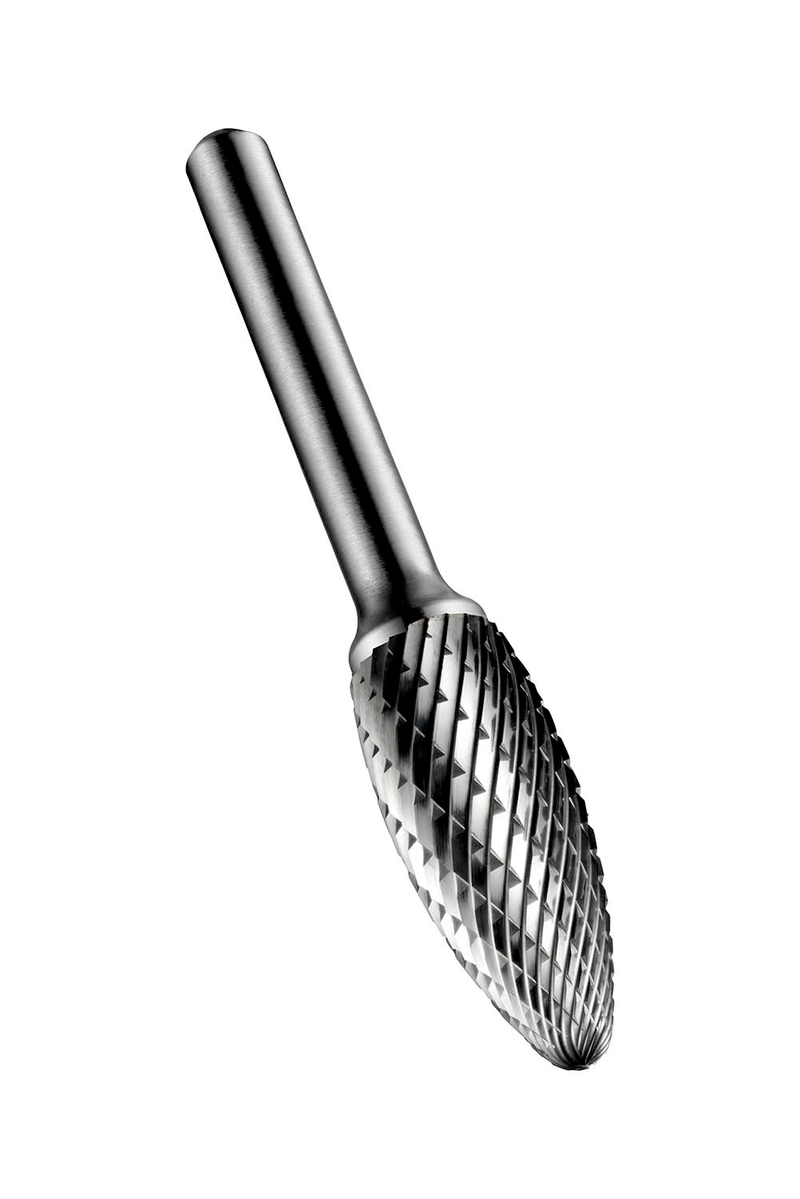

Fraise flamme (forme H), diamètre 12,7 mm, longueur de coupe 32 mm, longueur totale 77 mm et queue de 6 mm, à pastilles de carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour le contournage des bords arrondis et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P81512.7X6.0
GradeLumineux
Product Number6814168
Product FamilyP815

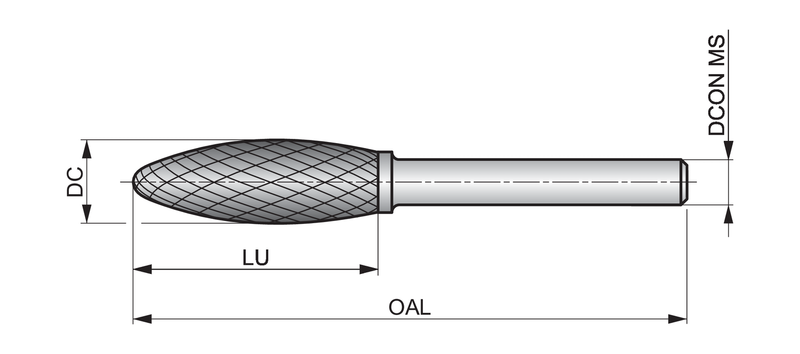

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)3.0315"
Overall Length — mm (OAL)77.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814168
EAN7320760688090
File Type Download
P81512.7X6.0 — Line Drawing PDF Download
