P81516.0X6.0
P81516.0X6.0
P81516.0X6.0

P81516.0X6.0

UGC DOR6814169
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.00 CAD - $80.00 CAD
$80.00 CAD
$80.00 CAD - $80.00 CAD
$80.00 CAD

Vendu en lots de : 1

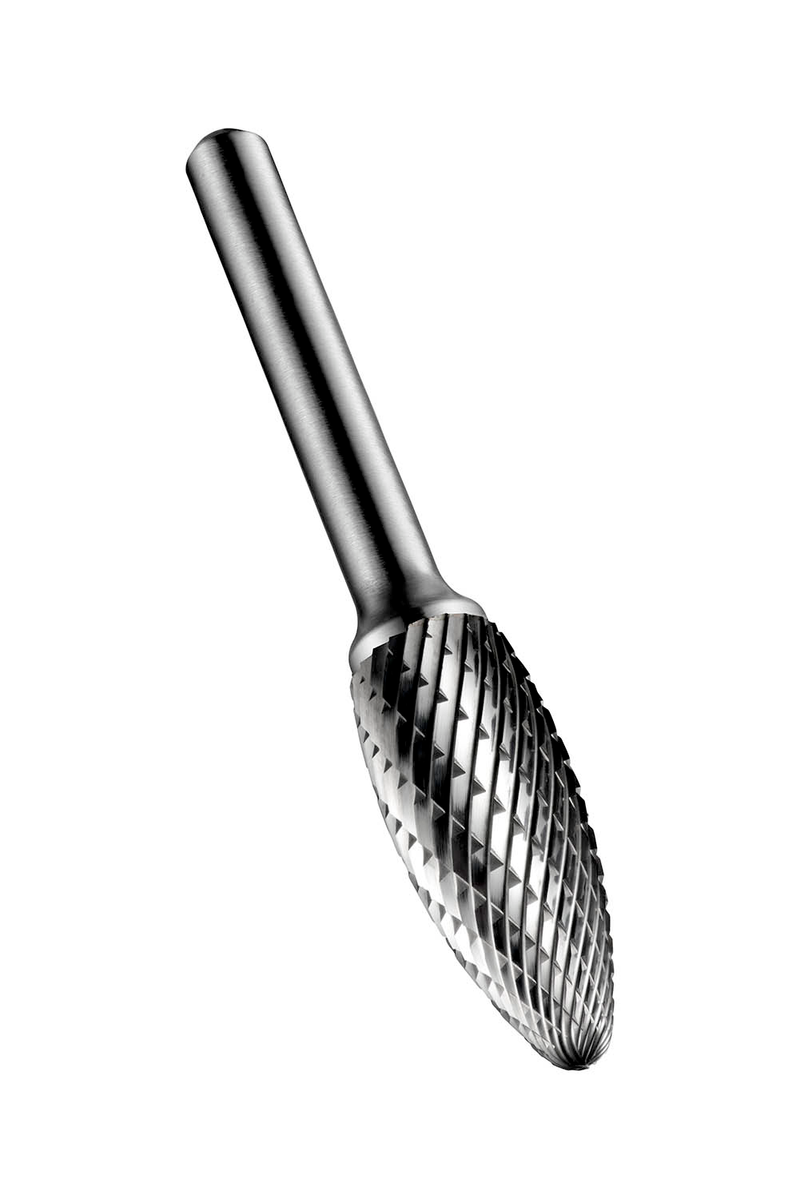

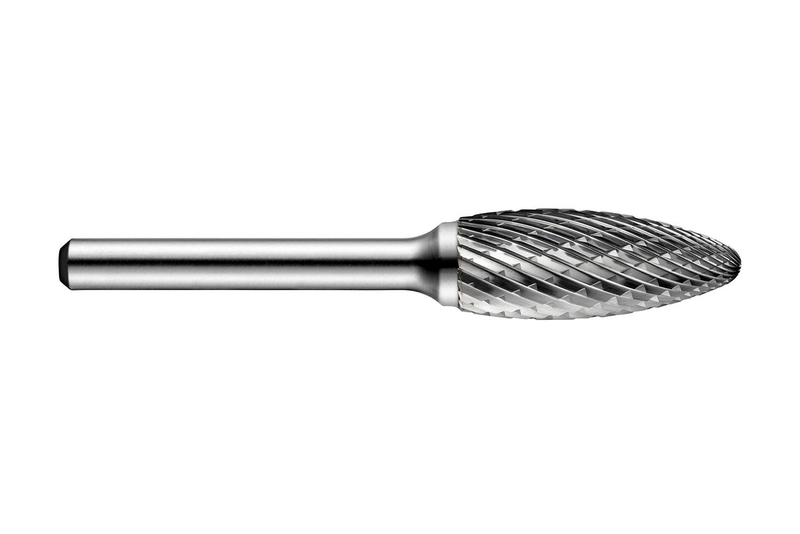

Fraise flamme (forme H), diamètre 16mm avec longueur de coupe 36mm, longueur totale 81mm et queue 6mm, pointe carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour le contournage des bords arrondis et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P81516.0X6.0
GradeLumineux
Product Number6814169
Product FamilyP815

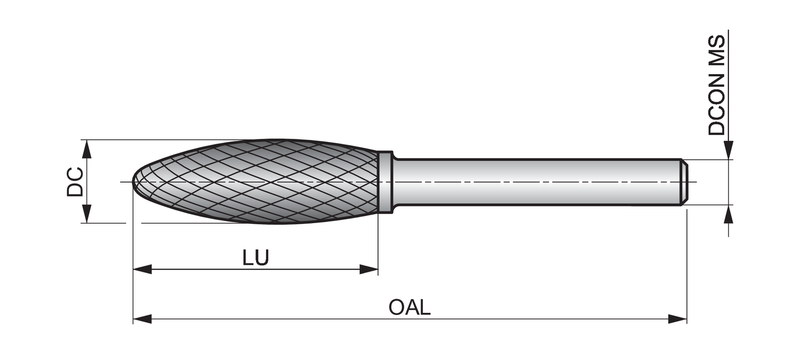

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.189"
Overall Length — mm (OAL)81.0 mm
Usable Length — mm (LU)36.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814169
EAN7320760688106
File Type Download
P81516.0X6.0 — Line Drawing PDF Download
