P8176.0X6.0
P8176.0X6.0
P8176.0X6.0

P8176.0X6.0

UGC DOR6814173
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.94 CAD - $18.94 CAD
$18.94 CAD
$18.94 CAD - $18.94 CAD
$18.94 CAD

Vendu en lots de : 1

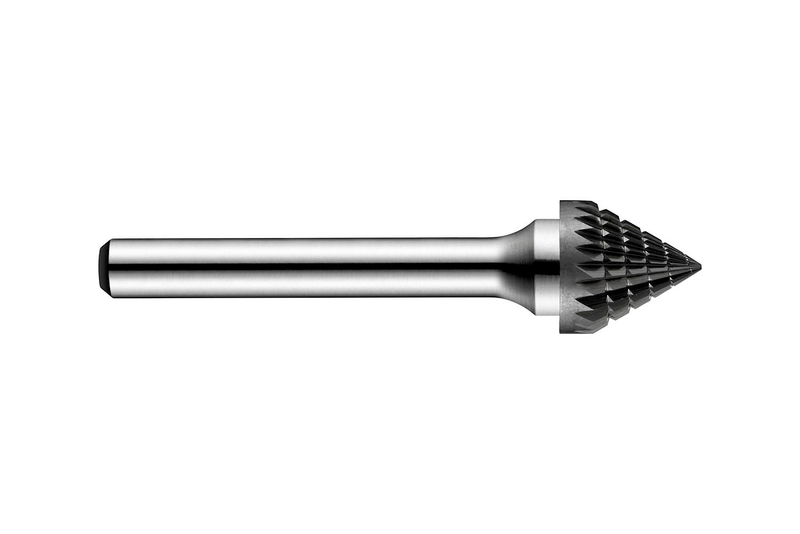

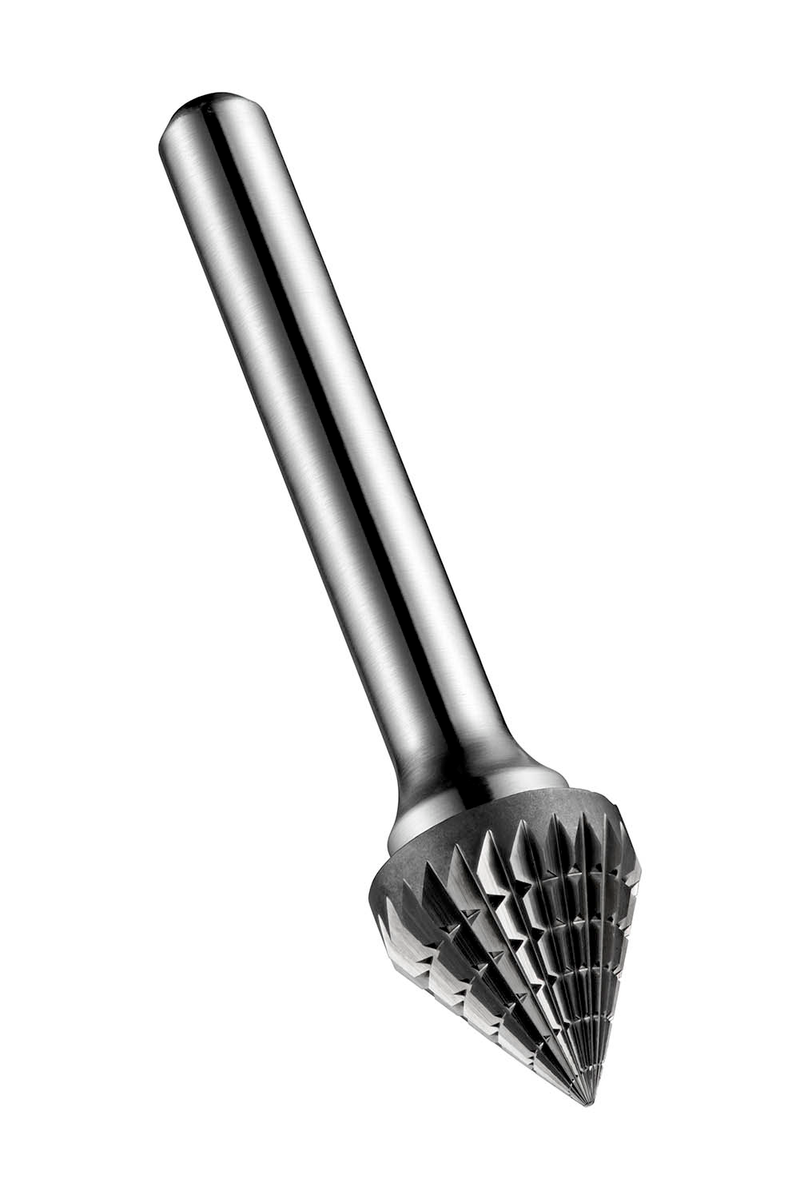

Fraises coniques à chanfreiner 60° (forme J), diamètre 6mm, longueur de coupe 4mm, longueur totale 50mm, queue 6mm, carbure monobloc, finition brillante, double denture croisée avec bords rapprochés pour le chanfreinage, la réalisation de gorges en V et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8176.0X6.0
GradeLumineux
Product Number6814173
Product FamilyP817

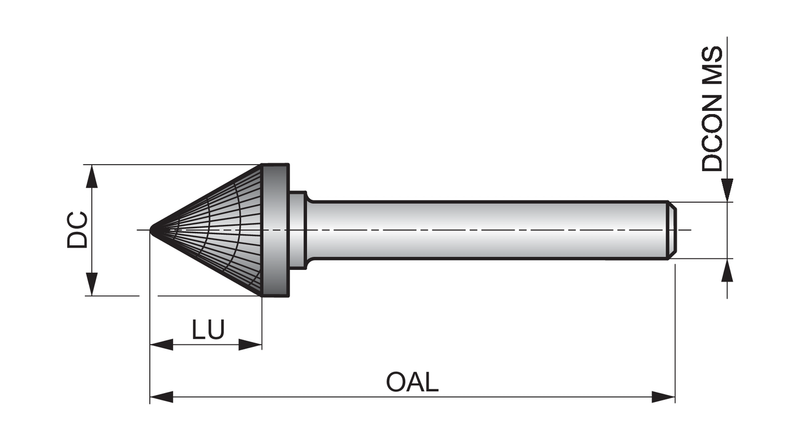

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)4.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)60°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814173
EAN7320760688144
File Type Download
P8176.0X6.0 — Line Drawing PDF Download
