P8196.0X6.0
P8196.0X6.0
P8196.0X6.0

P8196.0X6.0

UGC DOR6814178
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.94 CAD - $18.94 CAD
$18.94 CAD
$18.94 CAD - $18.94 CAD
$18.94 CAD

Vendu en lots de : 1

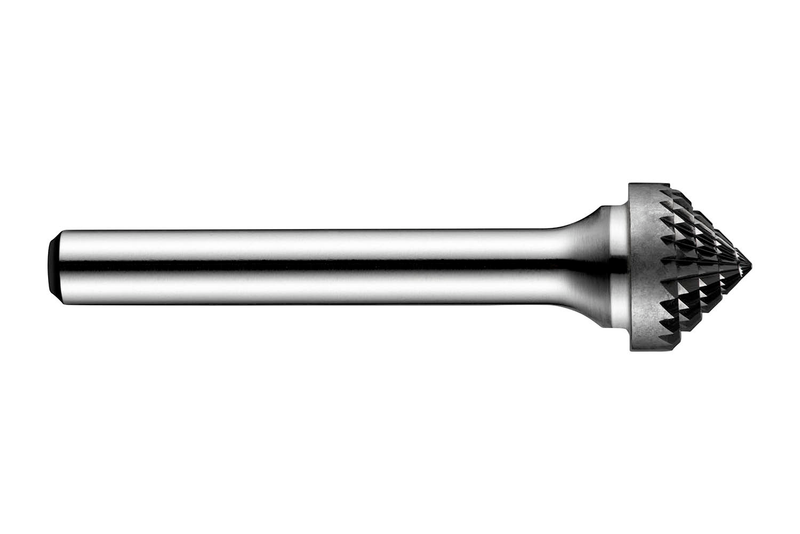

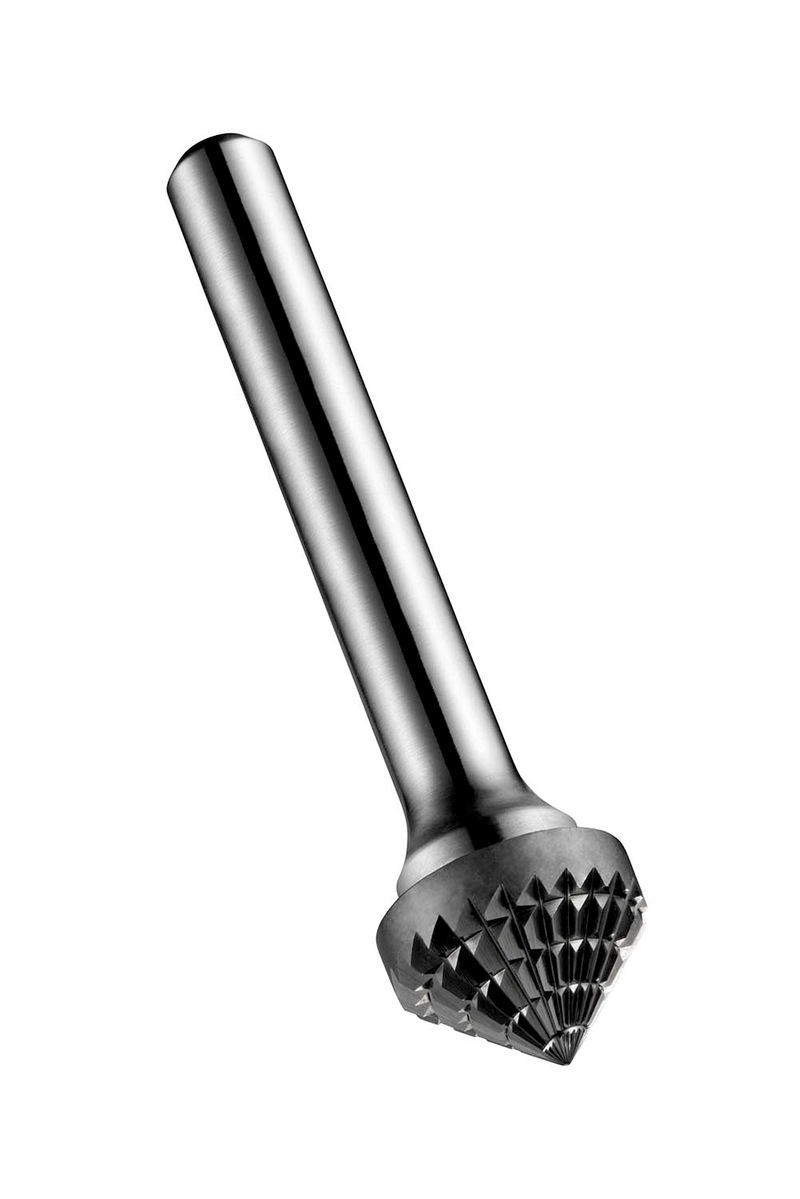

Fraise conique à chanfreiner 90° (forme K), diamètre 6mm avec 3mm de longueur de coupe, longueur totale 50mm et queue 6mm, carbure monobloc finition brillante, double coupe DC à arêtes rapprochées pour le chanfreinage, la réalisation de gorges en V et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8196.0X6.0
GradeLumineux
Product Number6814178
Product FamilyP819
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)3.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814178
EAN7320760688199
File Type Download

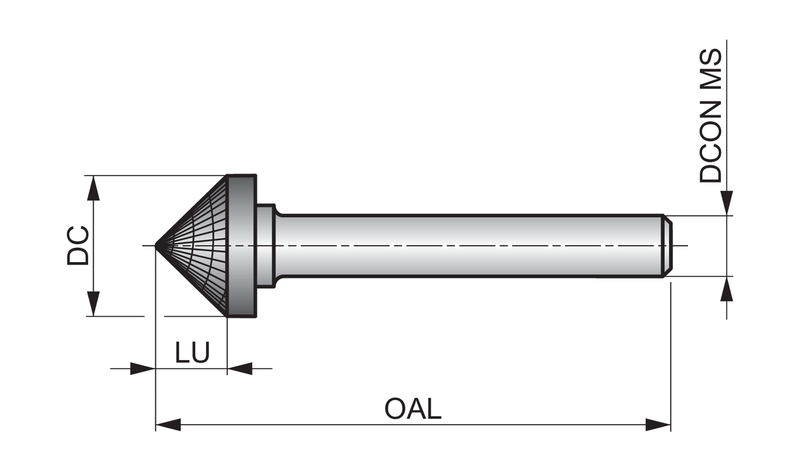

P8196.0X6.0 — Line Drawing PDF Download
