P8233.0X3.0
P8233.0X3.0
P8233.0X3.0

P8233.0X3.0

UGC DOR6814190
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.34 CAD - $10.34 CAD
$10.34 CAD
$10.34 CAD - $10.34 CAD
$10.34 CAD

Vendu en lots de : 1

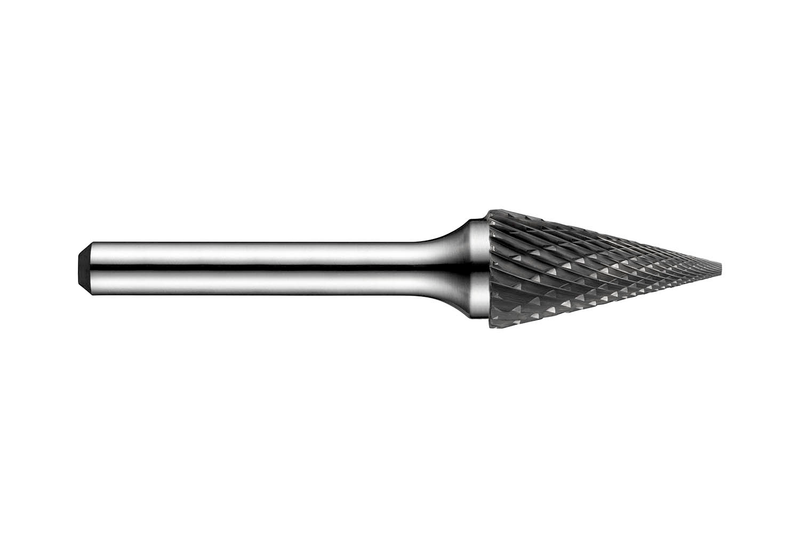

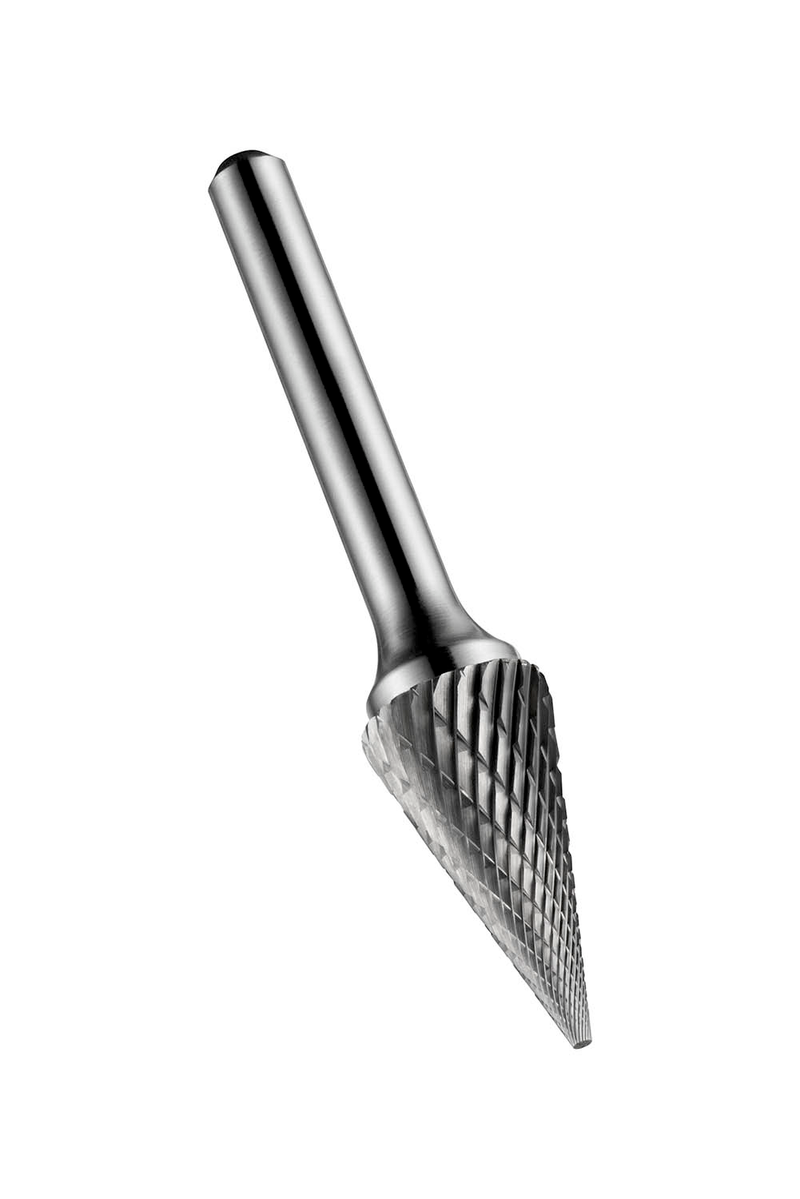

Fraise conique (forme M), diamètre 3 mm, longueur de coupe 11 mm, longueur totale 38 mm et queue 3 mm, en carbure monobloc, finition brillante, style de cannelure à double taille DC avec bords rapprochés pour l'élargissement de trous, la finition de surfaces et la coupe d'angles étroits dans des zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8233.0X3.0
GradeLumineux
Product Number6814190
Product FamilyP823

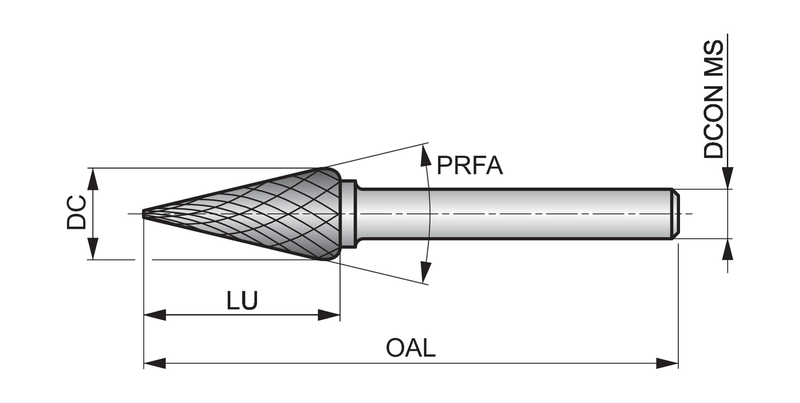

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)11.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814190
EAN7320760688311
File Type Download
P8233.0X3.0 — Line Drawing PDF Download
