P8239.6X6.0
P8239.6X6.0
P8239.6X6.0

P8239.6X6.0

UGC DOR6814193
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.74 CAD - $34.74 CAD
$34.74 CAD
$34.74 CAD - $34.74 CAD
$34.74 CAD

Vendu en lots de : 1

Fraise conique (forme M), diamètre 9,6 mm avec longueur de coupe de 16 mm, longueur totale de 64 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, double denture DC à espacement serré pour l'alésage de trous, la finition de surface et la coupe d'angles étroits dans des zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8239.6X6.0
GradeLumineux
Product Number6814193
Product FamilyP823
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)16.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814193
EAN7320760688342
File Type Download

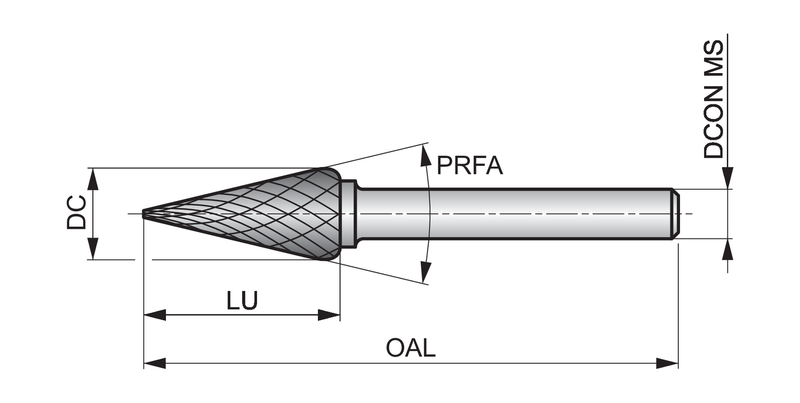

P8239.6X6.0 — Line Drawing PDF Download
