P83112.7X6.0
P83112.7X6.0
P83112.7X6.0

P83112.7X6.0

UGC DOR6814204
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.74 CAD - $48.74 CAD
$48.74 CAD
$48.74 CAD - $48.74 CAD
$48.74 CAD

Vendu en lots de : 1

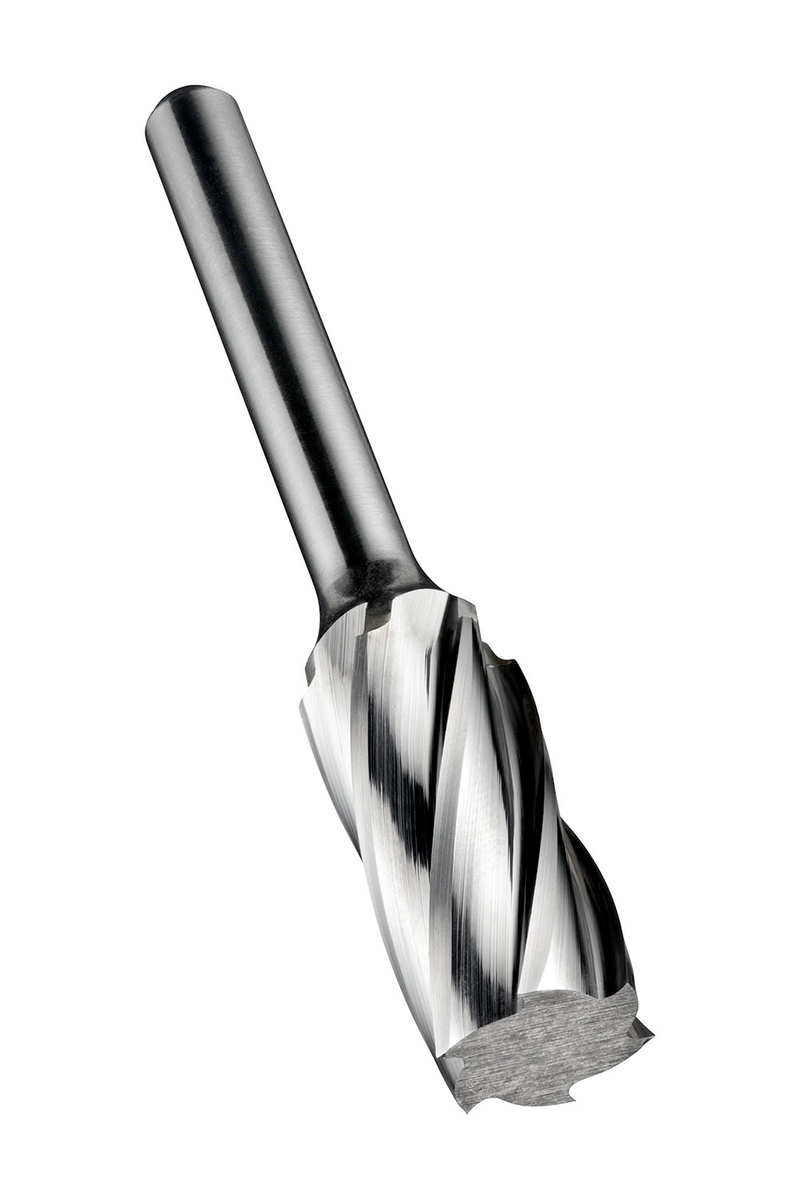

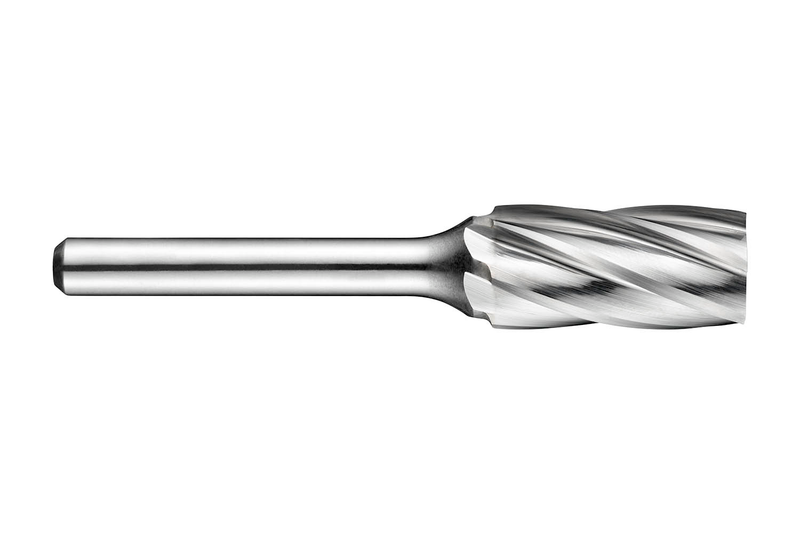

Fraise cylindrique sans coupe en bout (forme A), diamètre 12,7 mm avec 25 mm de longueur de coupe, 70 mm de longueur totale et 6 mm de queue, à pointe en carbure avec queue en acier trempé et durci et finition brillante, style de cannelure simple AL avec arêtes largement espacées pour l'usinage des surfaces en aluminium forgé, coulé et en polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P83112.7X6.0
GradeLumineux
Product Number6814204
Product FamilyP831
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814204
EAN7320760688458
File Type Download

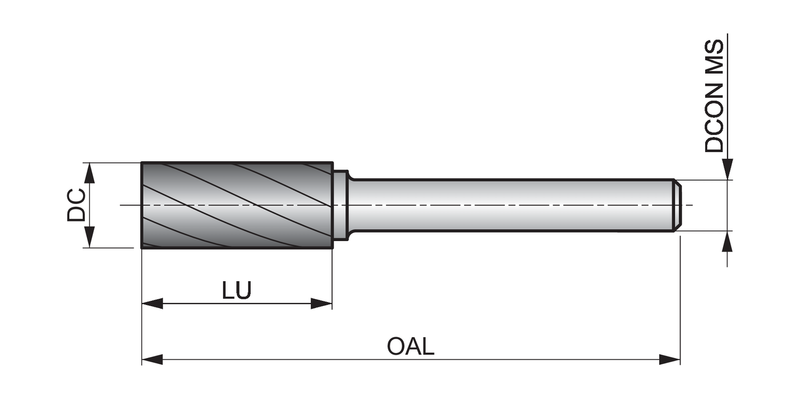

P83112.7X6.0 — Line Drawing PDF Download
