P8336.0X6.0
P8336.0X6.0
P8336.0X6.0

P8336.0X6.0

UGC DOR6814205
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.43 CAD - $24.43 CAD
$24.43 CAD
$24.43 CAD - $24.43 CAD
$24.43 CAD

Vendu en lots de : 1

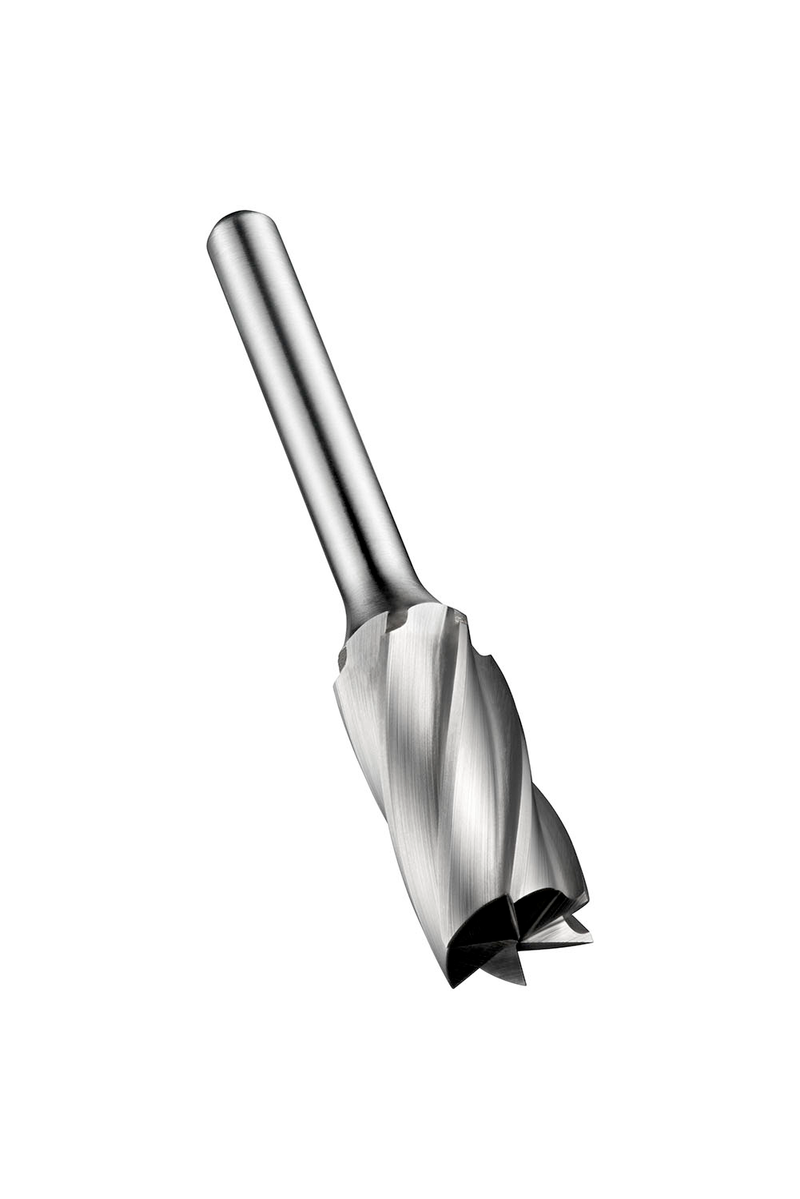

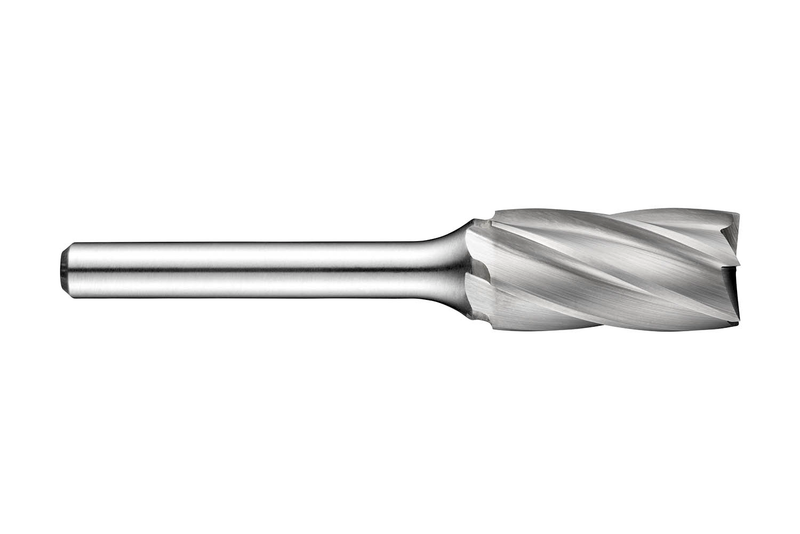

Fraise cylindrique avec coupe frontale (forme B), diamètre 6mm avec 18mm de longueur de coupe, 50mm de longueur totale et queue de 6mm, carbure monobloc finition brillante, type de denture AL simple taille avec arêtes espacées pour l'usinage de surfaces et de coins à angle droit dans l'aluminium forgé, moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8336.0X6.0
GradeLumineux
Product Number6814205
Product FamilyP833

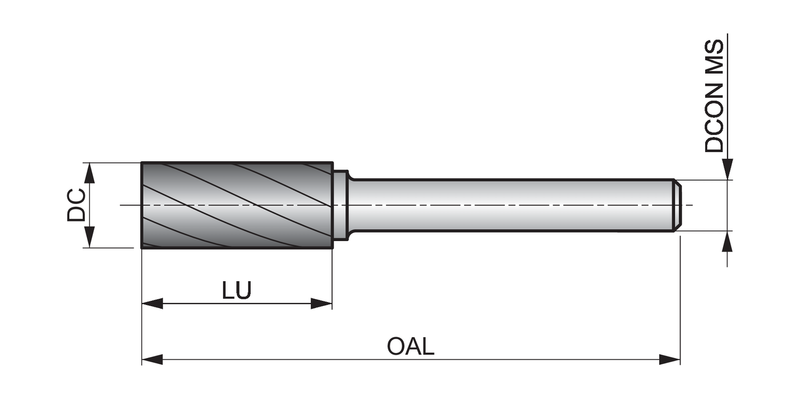

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814205
EAN7320760688465
File Type Download
P8336.0X6.0 — Line Drawing PDF Download
