P8339.6X6.0
P8339.6X6.0
P8339.6X6.0

P8339.6X6.0

UGC DOR6814206
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.34 CAD - $34.34 CAD
$34.34 CAD
$34.34 CAD - $34.34 CAD
$34.34 CAD

Vendu en lots de : 1

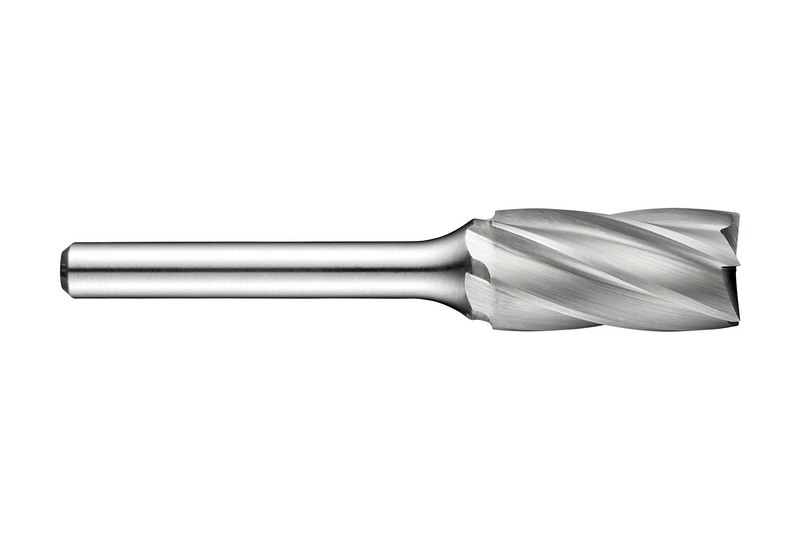

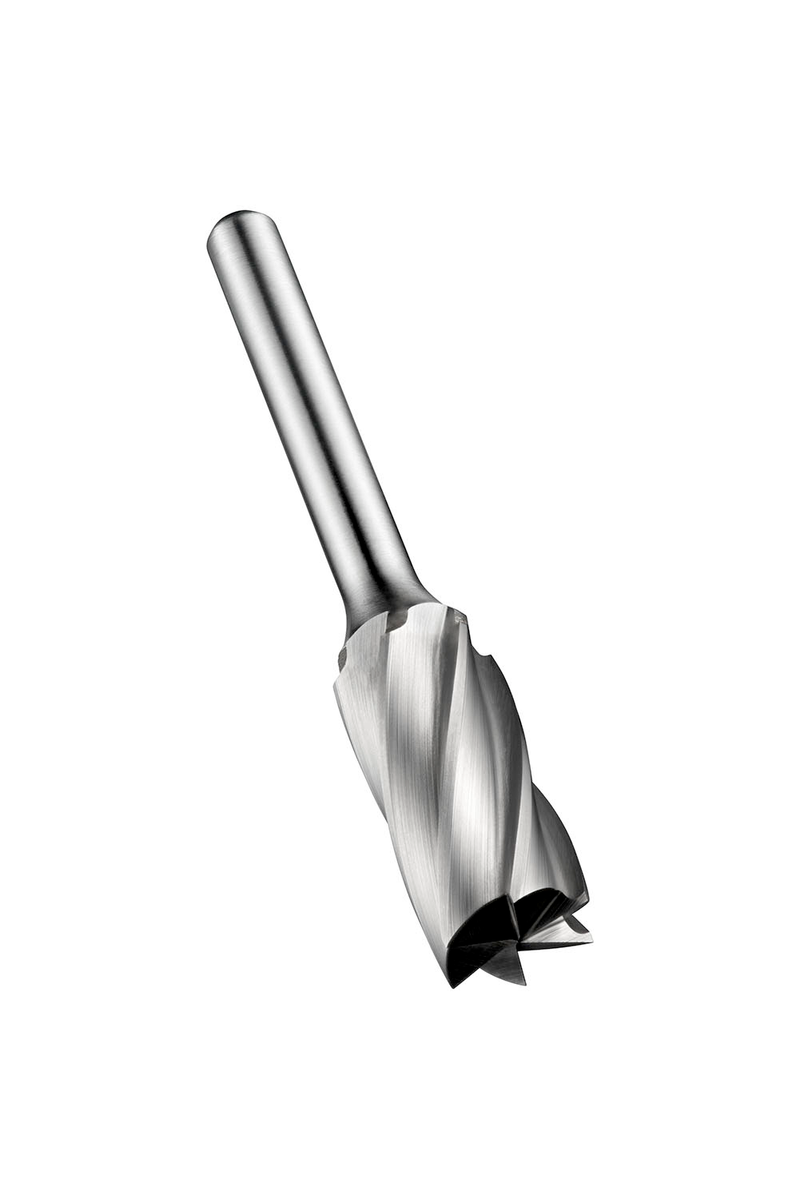

Fraise-lime cylindrique à bout coupant (forme B), diamètre 9,6 mm, longueur de coupe 19 mm, longueur totale 64 mm et queue 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, à denture simple AL avec bords espacés pour l'usinage de surfaces et d'angles droits dans les polymères renforcés de fibres de verre, l'aluminium forgé et moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8339.6X6.0
GradeLumineux
Product Number6814206
Product FamilyP833
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814206
EAN7320760688472
File Type Download

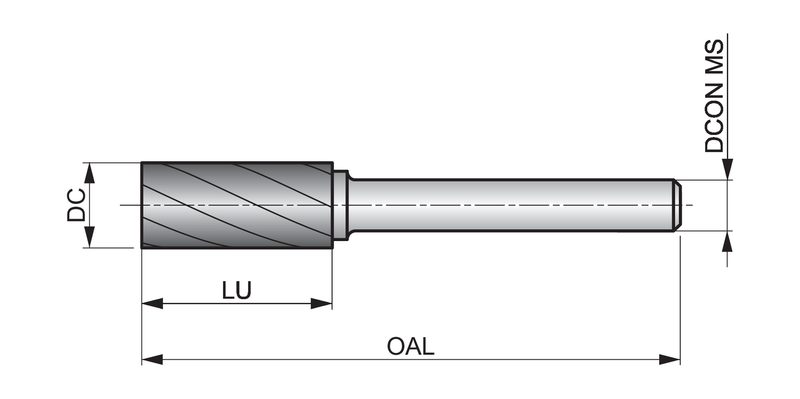

P8339.6X6.0 — Line Drawing PDF Download
