P83312.7X6.0
P83312.7X6.0
P83312.7X6.0

P83312.7X6.0

UGC DOR6814207
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.54 CAD - $53.54 CAD
$53.54 CAD
$53.54 CAD - $53.54 CAD
$53.54 CAD

Vendu en lots de : 1

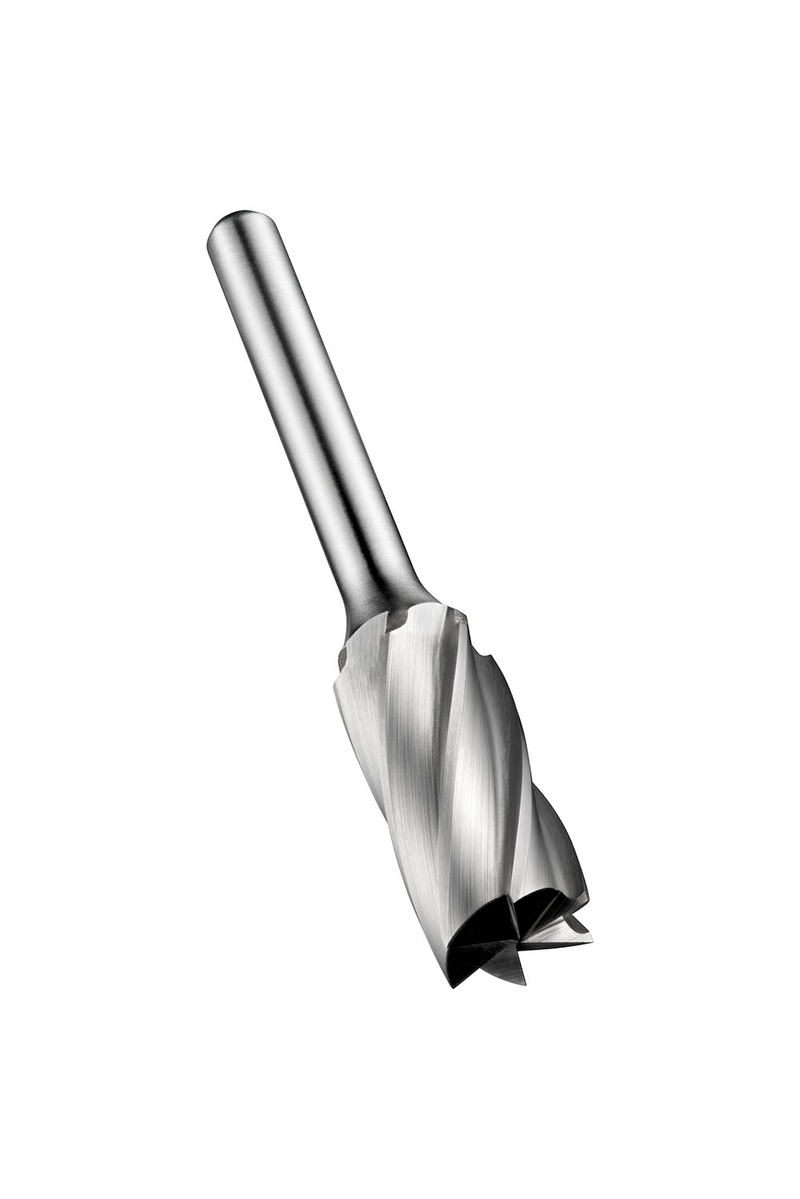

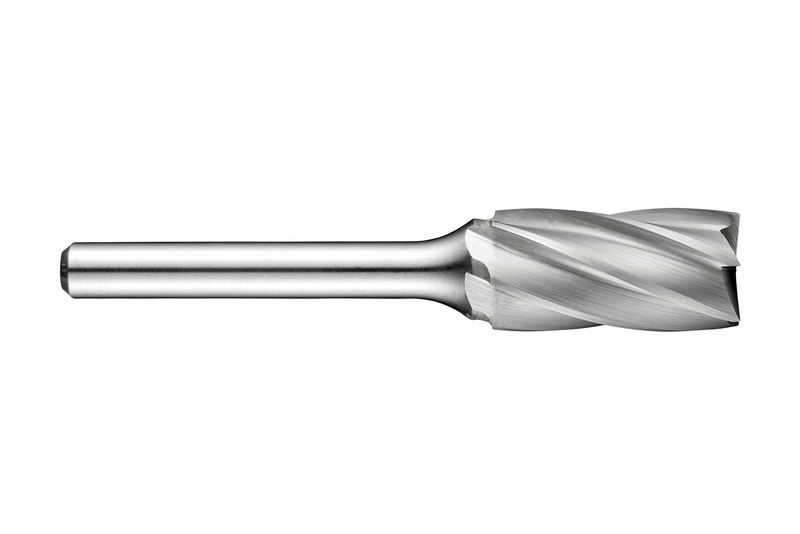

Fraise-lime cylindrique à coupe frontale (forme B), diamètre 12,7mm avec 25mm de longueur de coupe, 70mm de longueur totale et 6mm de queue, carbure monobloc avec queue en acier trempé et revenu et finition brillante, style de denture simple taille AL avec arêtes espacées pour l'usinage de surfaces et d'angles droits dans l'aluminium corroyé ou moulé et les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P83312.7X6.0
GradeLumineux
Product Number6814207
Product FamilyP833
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814207
EAN7320760688489
File Type Download

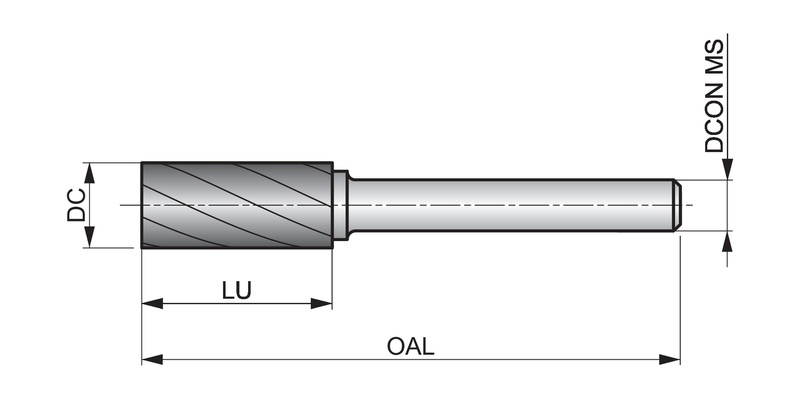

P83312.7X6.0 — Line Drawing PDF Download
