P8356.0X6.0
P8356.0X6.0
P8356.0X6.0

P8356.0X6.0

UGC DOR6814208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.71 CAD - $25.71 CAD
$25.71 CAD
$25.71 CAD - $25.71 CAD
$25.71 CAD

Vendu en lots de : 1

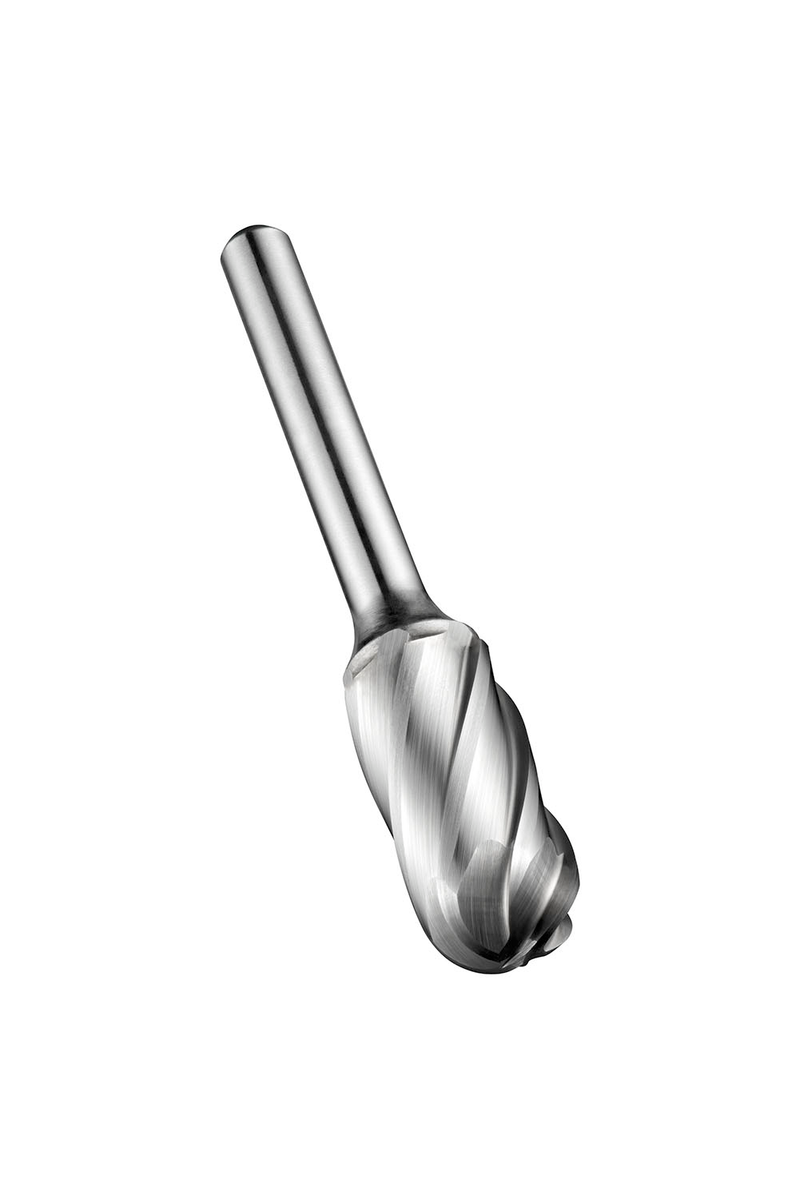

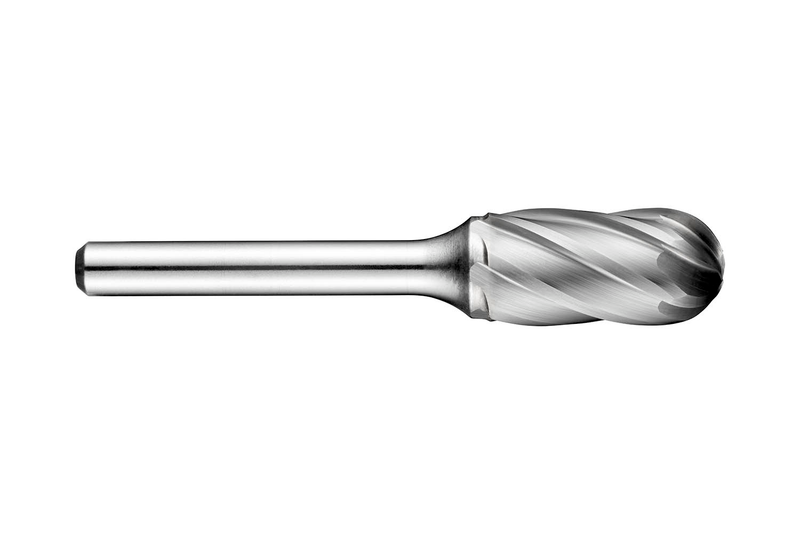

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 6mm, longueur de coupe 18mm, longueur totale 50mm, queue 6mm, carbure monobloc finition brillante, taille simple AL avec arêtes espacées pour l'usinage de contours et d'arcs circulaires dans les alliages d'aluminium corroyés et coulés, ainsi que les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8356.0X6.0
GradeLumineux
Product Number6814208
Product FamilyP835

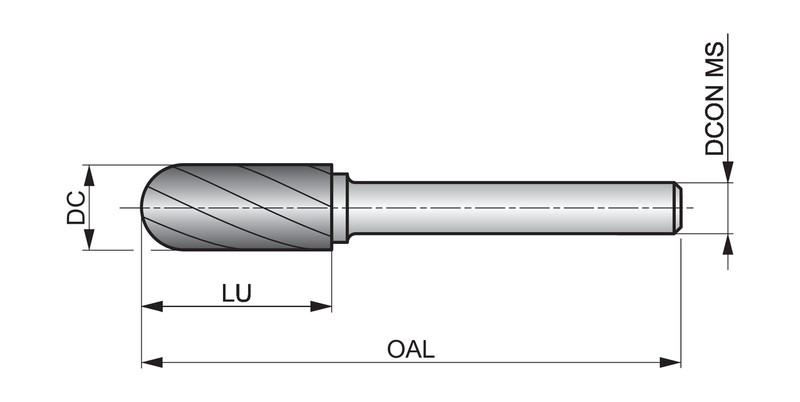

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814208
EAN7320760688496
File Type Download
P8356.0X6.0 — Line Drawing PDF Download
