P8376.0X6.0
P8376.0X6.0
P8376.0X6.0

P8376.0X6.0

UGC DOR6814211
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.74 CAD - $23.74 CAD
$23.74 CAD
$23.74 CAD - $23.74 CAD
$23.74 CAD

Vendu en lots de : 1

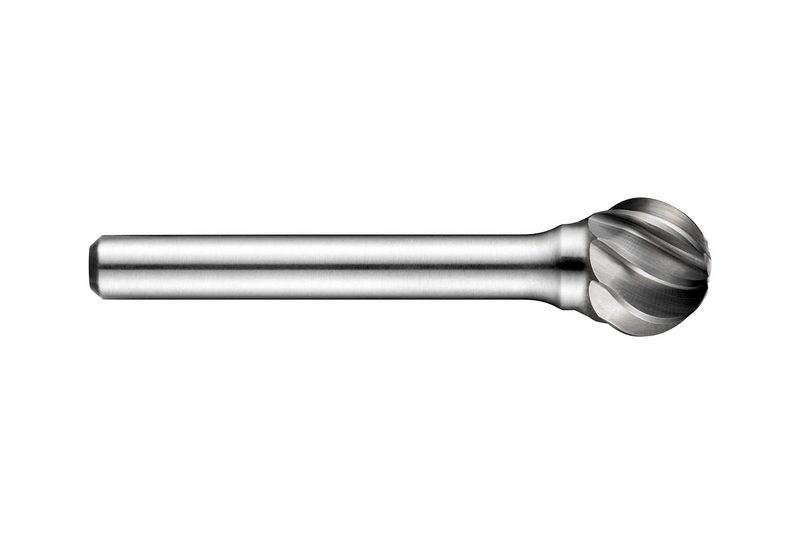

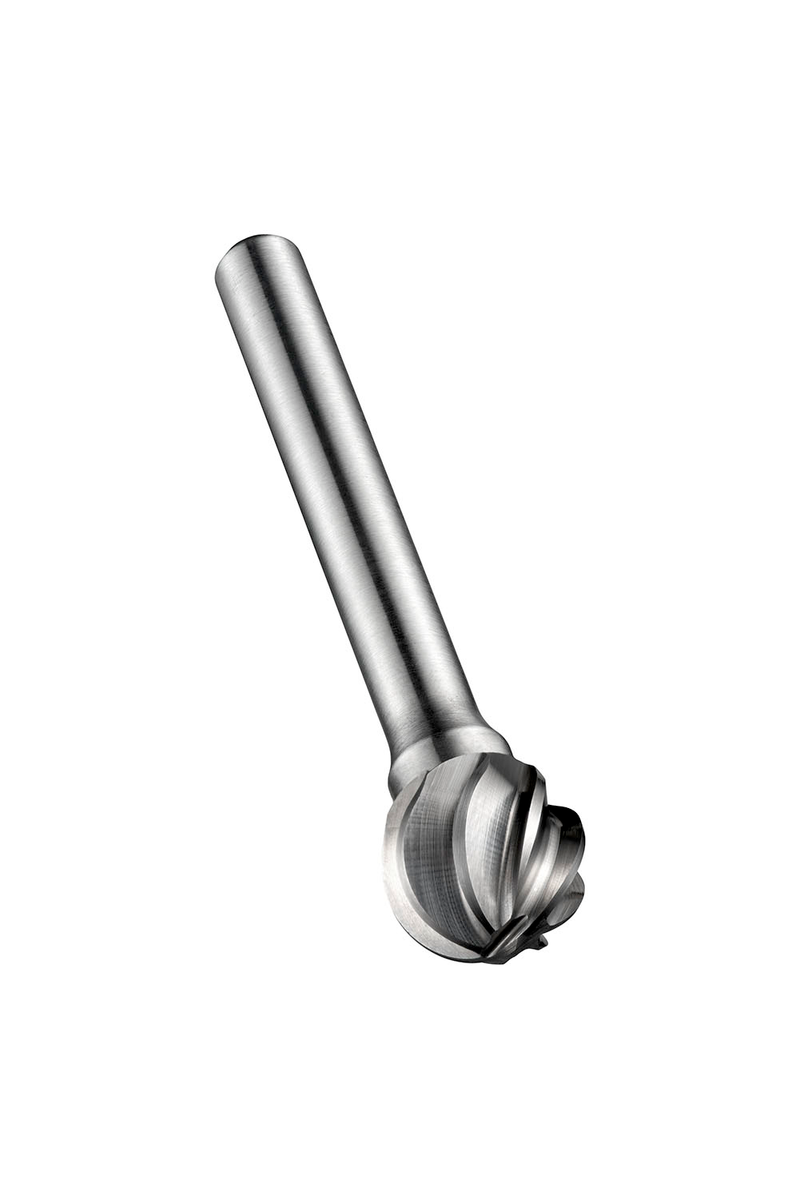

Fraise boule (forme D), diamètre 6mm avec 4,7mm de longueur de coupe, longueur totale 50mm et queue 6mm, carbure monobloc avec finition brillante, coupe unique en aluminium avec des bords espacés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans les polymères renforcés de fibres de verre, l'aluminium forgé et moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8376.0X6.0
GradeLumineux
Product Number6814211
Product FamilyP837
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)4.7 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814211
EAN7320760688526
File Type Download

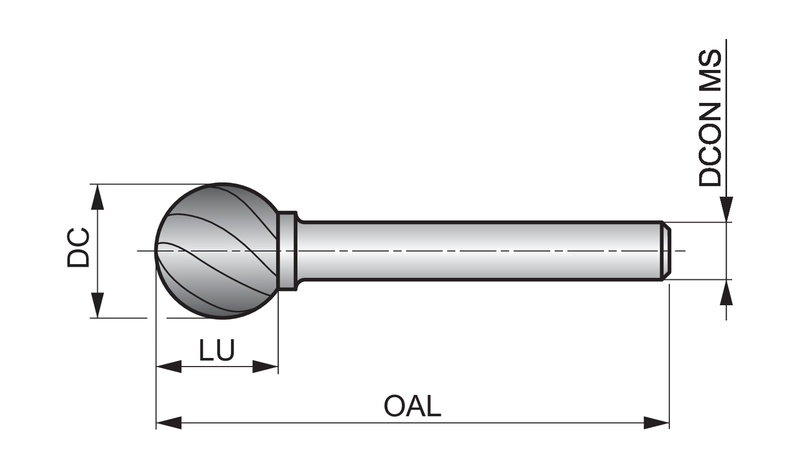

P8376.0X6.0 — Line Drawing PDF Download
