P8379.6X6.0
P8379.6X6.0
P8379.6X6.0

P8379.6X6.0

UGC DOR6814212
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.51 CAD - $28.51 CAD
$28.51 CAD
$28.51 CAD - $28.51 CAD
$28.51 CAD

Vendu en lots de : 1

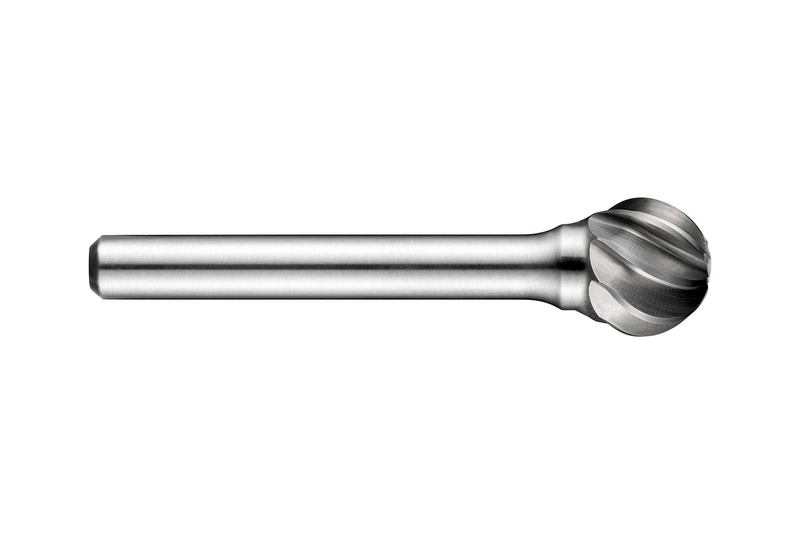

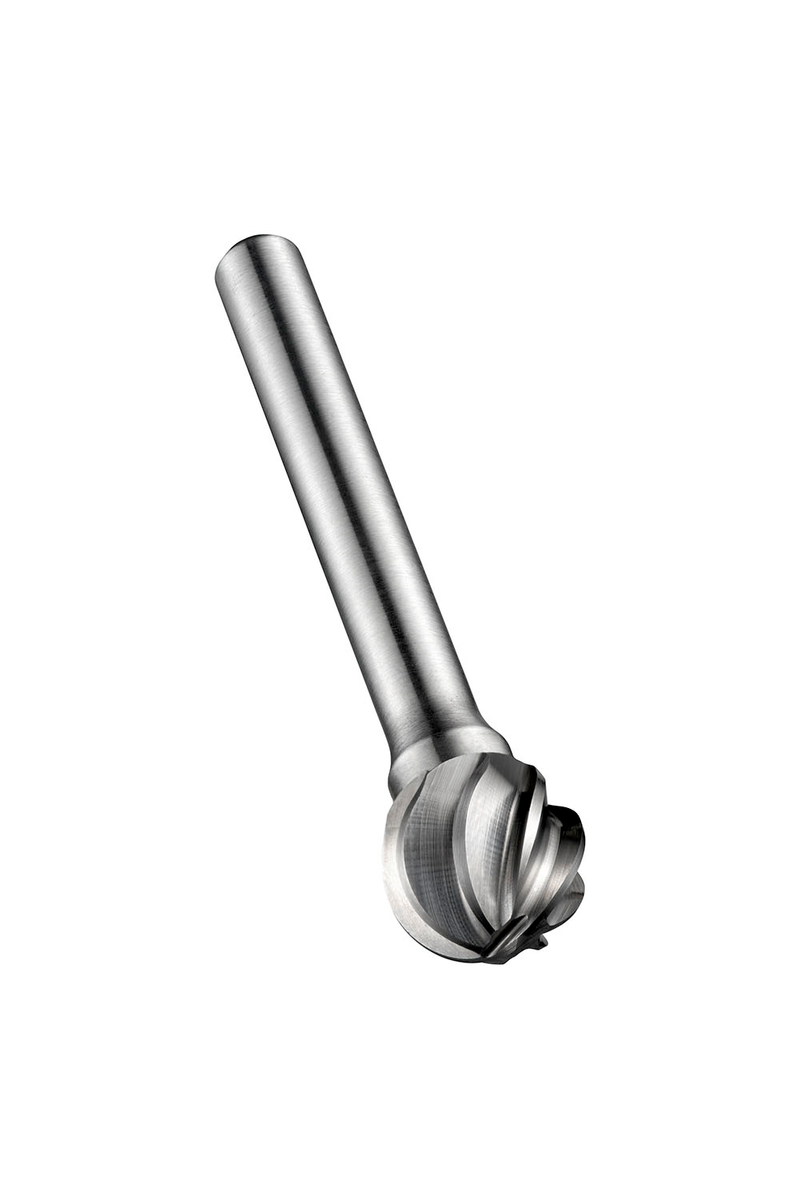

Fraise boule (forme D), diamètre 9,6 mm avec longueur de coupe de 8 mm, longueur totale de 54 mm et queue de 6 mm, à pastilles carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure unique AL avec bords largement espacés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans les polymères renforcés de fibres de verre, l'aluminium moulé et le fer forgé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8379.6X6.0
GradeLumineux
Product Number6814212
Product FamilyP837

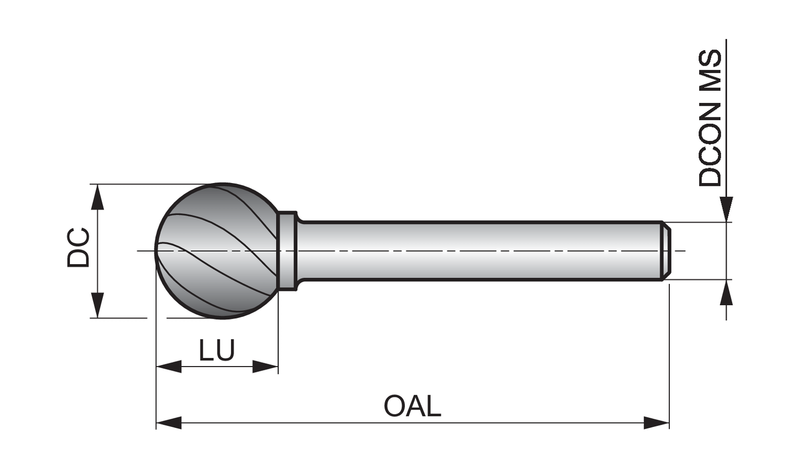

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814212
EAN7320760688533
File Type Download
P8379.6X6.0 — Line Drawing PDF Download
