P8419.6X6.0
P8419.6X6.0
P8419.6X6.0

P8419.6X6.0

UGC DOR6814215
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.94 CAD - $33.94 CAD
$33.94 CAD
$33.94 CAD - $33.94 CAD
$33.94 CAD

Vendu en lots de : 1

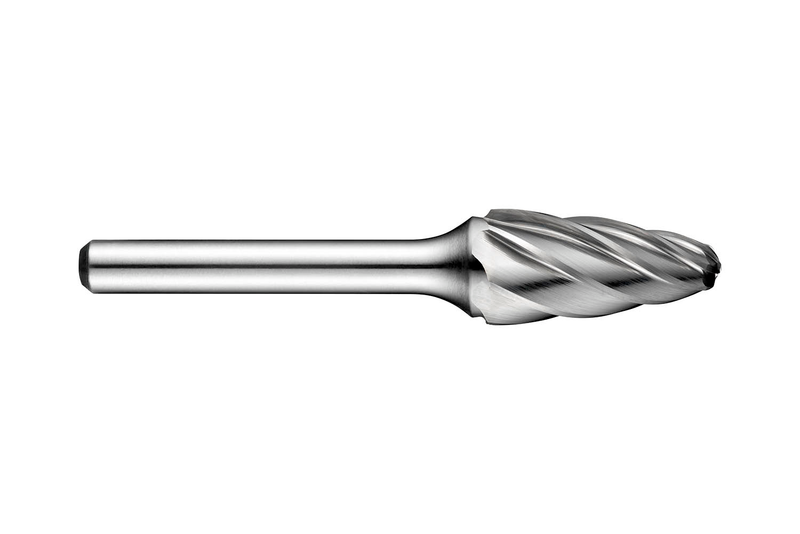

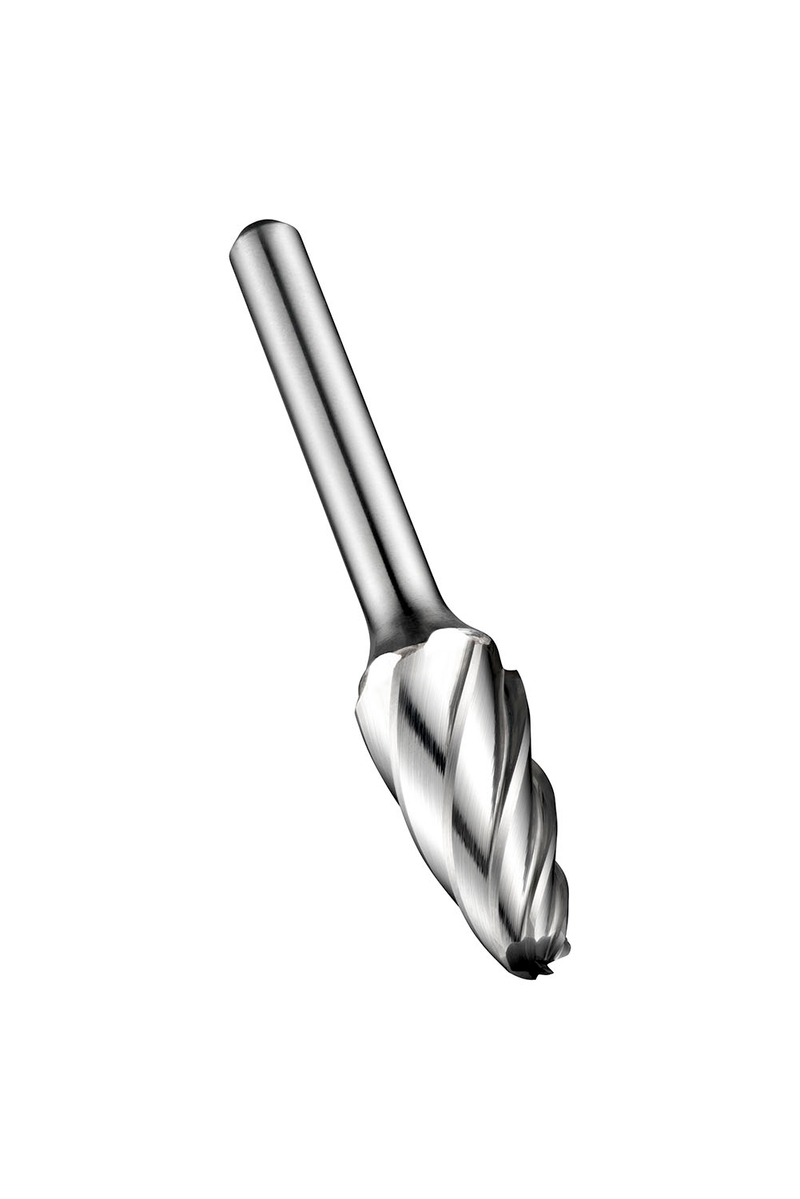

Fraise-lime rotative sphérique (forme F), diamètre 9,6 mm, longueur de coupe 19 mm, longueur totale 64 mm et queue de 6 mm, à pastilles de carbure avec queue en acier trempé et revenu et finition brillante, à denture simple AL avec bords espacés pour le profilage multi-angle, l'arrondi des bords et la coupe dans les zones difficiles d'accès dans l'aluminium forgé, l'aluminium moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P8419.6X6.0
GradeLumineux
Product Number6814215
Product FamilyP841
Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number46814215
EAN7320760688564
File Type Download

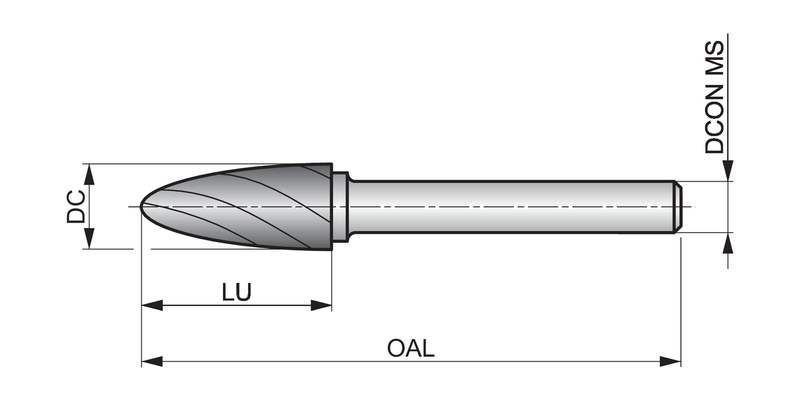

P8419.6X6.0 — Line Drawing PDF Download
