802D-18-36-S25
802D-18-36-S25
802D-18-36-S25

802D-18-36-S25

UGC DOR6820737
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$674.00 CAD - $674.00 CAD
$674.00 CAD
$674.00 CAD - $674.00 CAD
$674.00 CAD

Vendu en lots de : 1

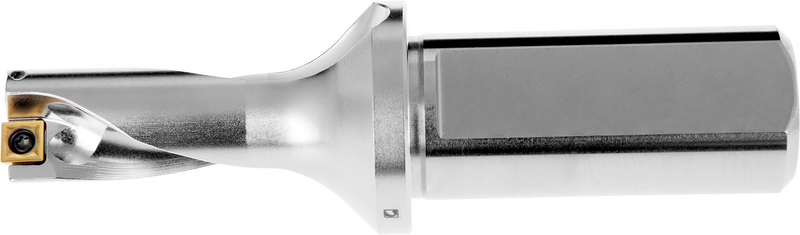

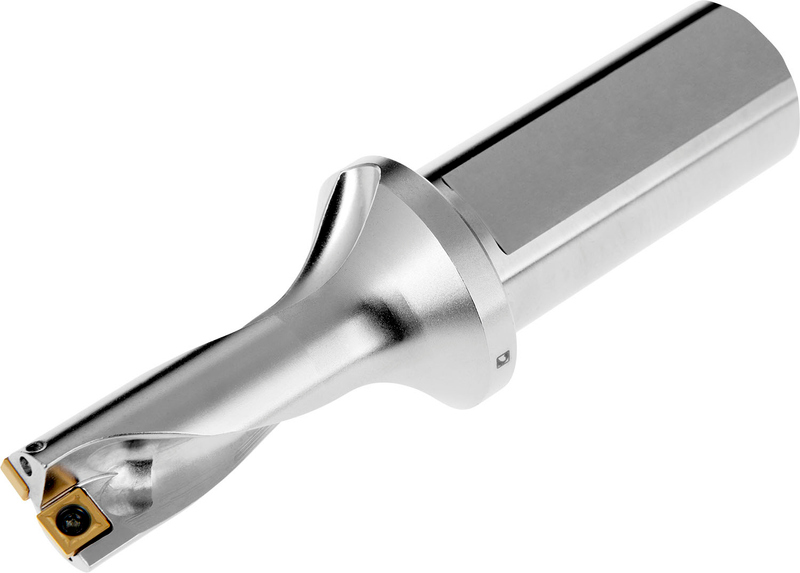

Forets à plaquettes indexables qui utilisent une plaquette XPET 0602.. dans le logement central et une plaquette SCET 0502.. dans le logement périphérique, diamètre de coupe 18mm en combinaison avec EP253253, adaptés à un réglage radial de -0,35 à +0,25mm, avec une queue cylindrique de 25mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 2 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)802D-18-36-S25
Product Number6820737
Product Family802D
Insert Geometry
Depth of Cut Max — in (APMX)1.4173"
Depth of Cut Max — mm (APMX)36.0 mm

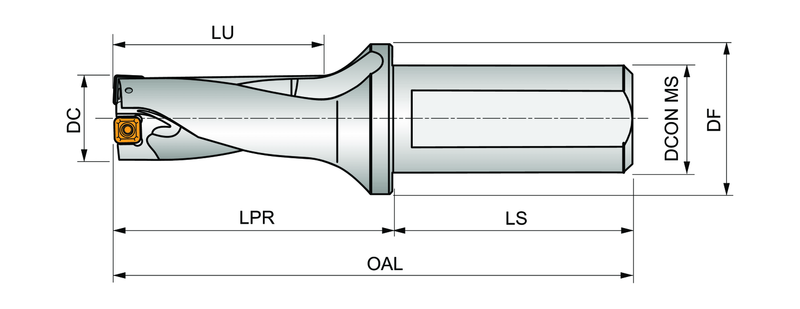

Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.6535"
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820737
EAN3603603005044
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
802D-18-36-S25 — 3D Model STP Download
802D-18-36-S25 — 2D Model DXF Download
802D-18-36-S25 — Line Drawing PDF Download
