802D-26-52-S32
802D-26-52-S32
802D-26-52-S32

802D-26-52-S32

UGC DOR6820775
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$728.00 CAD - $728.00 CAD
$728.00 CAD
$728.00 CAD - $728.00 CAD
$728.00 CAD

Vendu en lots de : 1

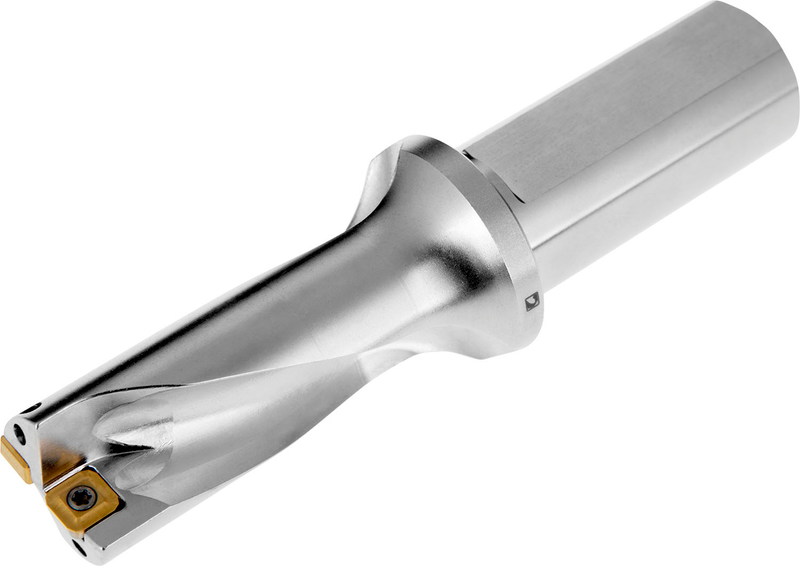

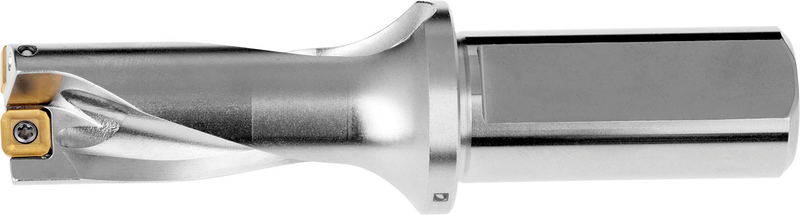

Foret à plaquettes amovibles utilisant une plaquette XPET 0703.. dans la poche centrale et une plaquette SCET 0703.. dans la poche périphérique, diamètre de coupe 26 mm en combinaison avec EP324058, adapté à un ajustement radial de -0,10 à +0,50 mm, avec une queue cylindrique de 32 mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 2 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)802D-26-52-S32
Product Number6820775
Product Family802D
Insert Geometry
Depth of Cut Max — in (APMX)2.0472"
Depth of Cut Max — mm (APMX)52.0 mm

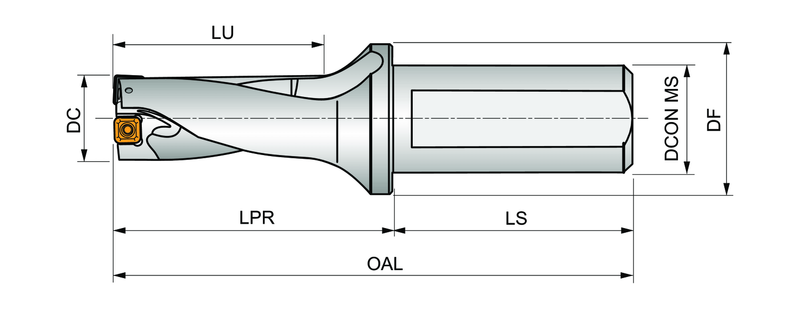

Dimensions
Cutting Diameter — in (DC)1.024"
Cutting Diameter — mm (DC)26.0 mm
Overall Length — in (OAL)5.787"
Overall Length — mm (OAL)147.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)2.3425"
Usable Length — mm (LU)59.5 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820775
EAN3603603005129
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
802D-26-52-S32 — 3D Model STP Download
802D-26-52-S32 — 2D Model DXF Download
802D-26-52-S32 — Line Drawing PDF Download
