803D-18-54-S25
803D-18-54-S25
803D-18-54-S25

803D-18-54-S25

UGC DOR6820797
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$683.00 CAD - $683.00 CAD
$683.00 CAD
$683.00 CAD - $683.00 CAD
$683.00 CAD

Vendu en lots de : 1

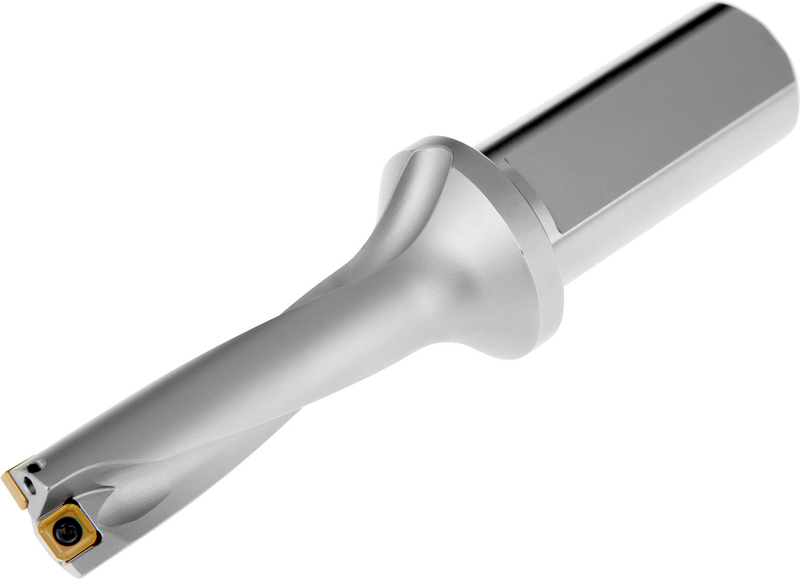

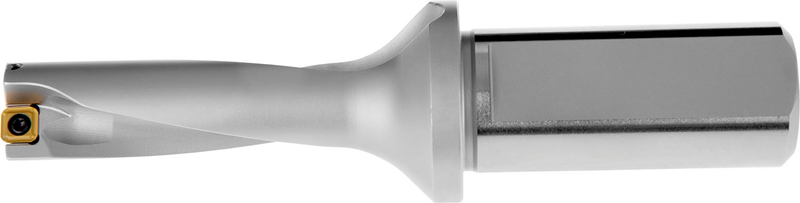

Foret à plaquettes indexables qui utilise une plaquette XPET 0602.. dans la poche centrale et une plaquette SCET 0502.. dans la poche périphérique, diamètre de coupe 18mm en combinaison avec EP253253, adapté pour un ajustement radial de -0.35 à +0.25mm, avec un queue cylindrique de 25mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-18-54-S25
Product Number6820797
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)2.126"
Depth of Cut Max — mm (APMX)54.0 mm
Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)5.709"
Overall Length — mm (OAL)145.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)2.3622"
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820797
EAN3603603005341
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-18-54-S25 — 3D Model STP Download
803D-18-54-S25 — 2D Model DXF Download
803D-18-54-S25 — Line Drawing PDF Download
