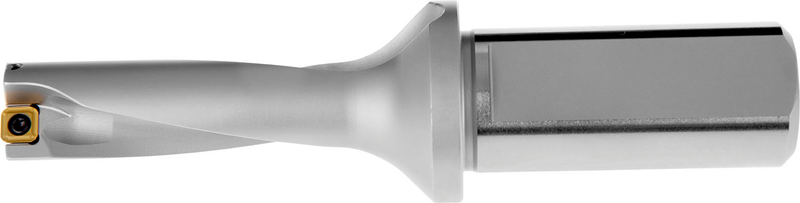

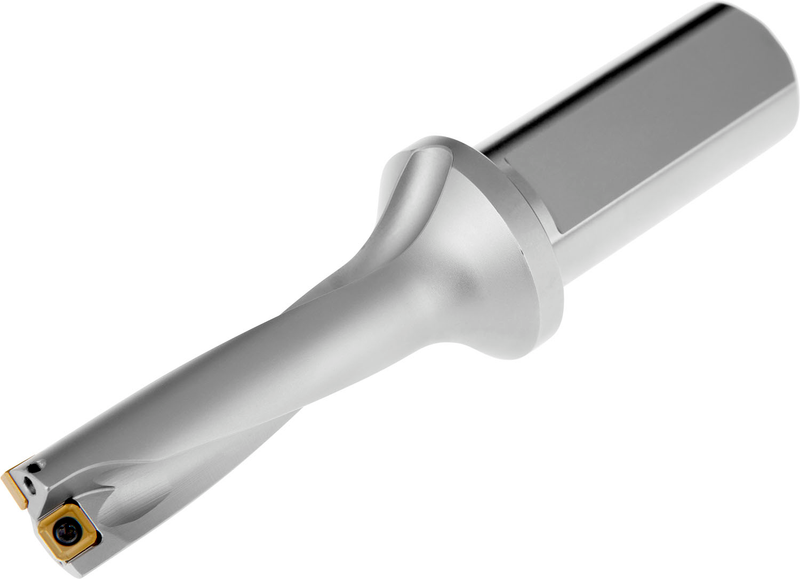

803D-20,5-61,5-S25
803D-20,5-61,5-S25
803D-20,5-61,5-S25

803D-20,5-61,5-S25

UGC DOR6820800
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$745.00 CAD - $745.00 CAD
$745.00 CAD
$745.00 CAD - $745.00 CAD
$745.00 CAD

Vendu en lots de : 1

Foret à plaquettes indexables qui utilise une plaquette XPET 0602... dans la poche centrale et une plaquette SCET 0602... dans la poche périphérique, diamètre de coupe de 20,5 mm en combinaison avec EP253253, adapté à un réglage radial de -0,10 à +0,50 mm, avec une queue cylindrique de 25 mm avec méplat selon ISO 9766 et arrosage par l'intérieur pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-20,5-61,5-S25
Product Number6820800
Product Family803J
Insert Geometry
Depth of Cut Max — in (APMX)2.4409"
Depth of Cut Max — mm (APMX)62.0 mm
Dimensions
Cutting Diameter — in (DC)0.807"
Cutting Diameter — mm (DC)20.5 mm
Overall Length — in (OAL)6.004"
Overall Length — mm (OAL)152.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)2.6457"
Usable Length — mm (LU)67.2 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820800
EAN3603603005372
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-20,5-61,5-S25 — 3D Model STP Download
803D-20,5-61,5-S25 — 2D Model DXF Download
803D-20,5-61,5-S25 — Line Drawing PDF Download
