803D-22,5-67,5-S25
803D-22,5-67,5-S25
803D-22,5-67,5-S25

803D-22,5-67,5-S25

UGC DOR6820804
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$721.00 CAD - $721.00 CAD
$721.00 CAD
$721.00 CAD - $721.00 CAD
$721.00 CAD

Vendu en lots de : 1

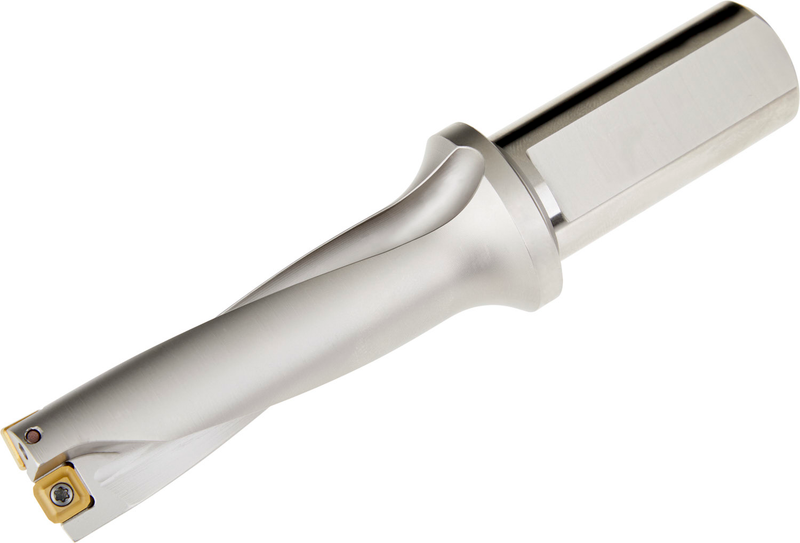

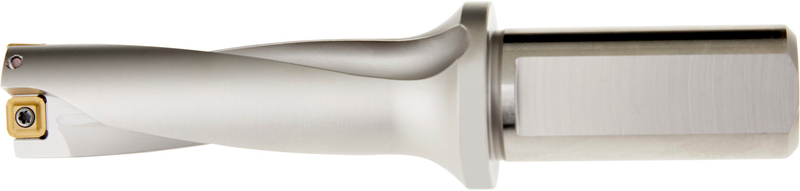

Foret à plaquettes amovibles utilisant un insert XPET 0703.. dans la poche centrale et un insert SCET 0703.. dans la poche périphérique, diamètre de coupe 22,5 mm en combinaison avec l'EP253253, adapté à un réglage radial de -0,35 à +0,50 mm, avec une queue cylindrique de 25 mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-22,5-67,5-S25
Product Number6820804
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)2.6772"
Depth of Cut Max — mm (APMX)68.0 mm
Dimensions
Cutting Diameter — in (DC)0.886"
Cutting Diameter — mm (DC)22.5 mm
Overall Length — in (OAL)6.24"
Overall Length — mm (OAL)158.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)2.9252"
Usable Length — mm (LU)74.3 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820804
EAN3603603005419
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-22,5-67,5-S25 — 3D Model STP Download
803D-22,5-67,5-S25 — 2D Model DXF Download
803D-22,5-67,5-S25 — Line Drawing PDF Download
