803D-26,5-79,5-S32
803D-26,5-79,5-S32
803D-26,5-79,5-S32

803D-26,5-79,5-S32

UGC DOR6820812
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$785.00 CAD - $785.00 CAD
$785.00 CAD
$785.00 CAD - $785.00 CAD
$785.00 CAD

Vendu en lots de : 1

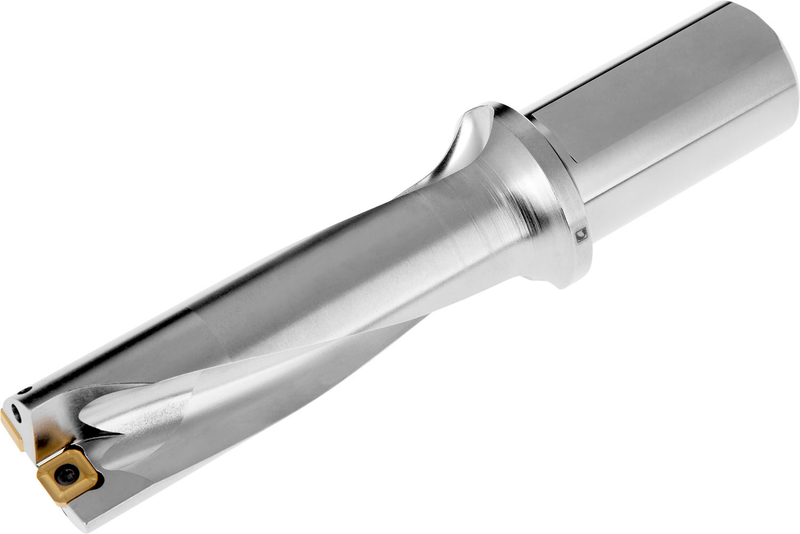

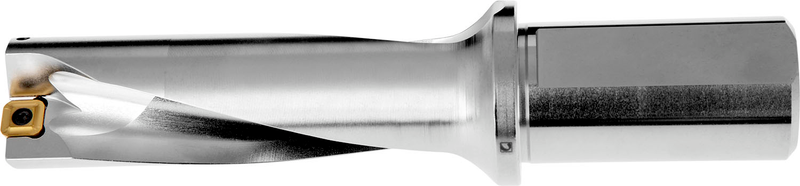

Foret à plaquettes indexables utilisant une plaquette XPET 0903.. dans la poche centrale et une plaquette SCET 0703.. dans la poche périphérique, diamètre de coupe 26,5 mm en combinaison avec EP324058, adapté à un réglage radial de -0,50 à +0,10 mm, avec une queue cylindrique de 32 mm avec méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-26,5-79,5-S32
Product Number6820812
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)3.1496"
Depth of Cut Max — mm (APMX)80.0 mm
Dimensions
Cutting Diameter — in (DC)1.043"
Cutting Diameter — mm (DC)26.5 mm
Overall Length — in (OAL)6.87"
Overall Length — mm (OAL)174.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)3.374"
Usable Length — mm (LU)85.7 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820812
EAN3603603005495
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-26,5-79,5-S32 — 3D Model STP Download
803D-26,5-79,5-S32 — 2D Model DXF Download
803D-26,5-79,5-S32 — Line Drawing PDF Download
