803D-34-102-S40
803D-34-102-S40
803D-34-102-S40

803D-34-102-S40

UGC DOR6820824
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$910.00 CAD - $910.00 CAD
$910.00 CAD
$910.00 CAD - $910.00 CAD
$910.00 CAD

Vendu en lots de : 1

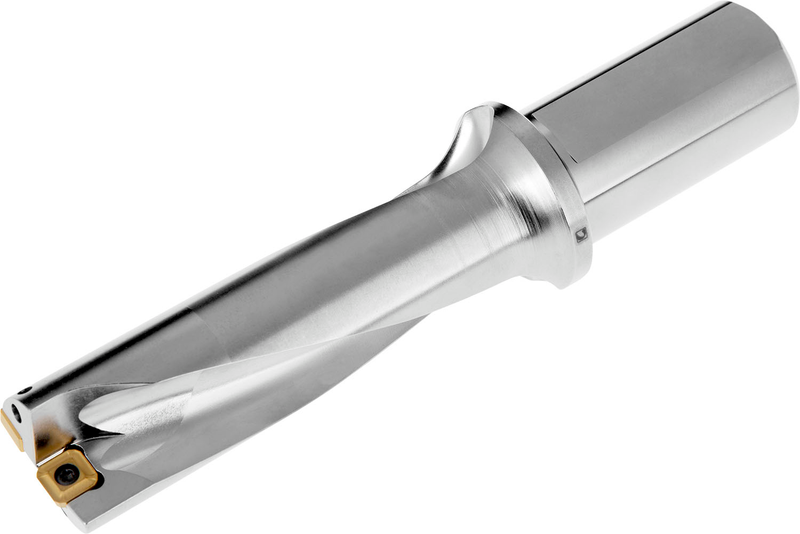

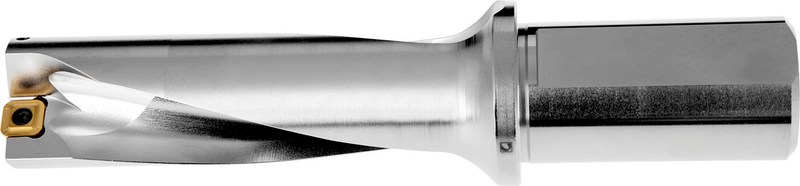

Foret à plaquettes indexables utilisant une plaquette XPET 11T3.. dans la poche centrale et une plaquette SCET 09T3.. dans la poche périphérique, diamètre de coupe 34mm, avec une queue cylindrique 40mm à méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-34-102-S40
Product Number6820824
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)4.0157"
Depth of Cut Max — mm (APMX)102.0 mm
Dimensions
Cutting Diameter — in (DC)1.339"
Cutting Diameter — mm (DC)34.0 mm
Overall Length — in (OAL)8.071"
Overall Length — mm (OAL)205.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)4.2913"
Usable Length — mm (LU)109.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820824
EAN3603603005617
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-34-102-S40 — 3D Model STP Download
803D-34-102-S40 — 2D Model DXF Download
803D-34-102-S40 — Line Drawing PDF Download
