803D-35-105-S32
803D-35-105-S32
803D-35-105-S32

803D-35-105-S32

UGC DOR6820825
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$945.00 CAD - $945.00 CAD
$945.00 CAD
$945.00 CAD - $945.00 CAD
$945.00 CAD

Vendu en lots de : 1

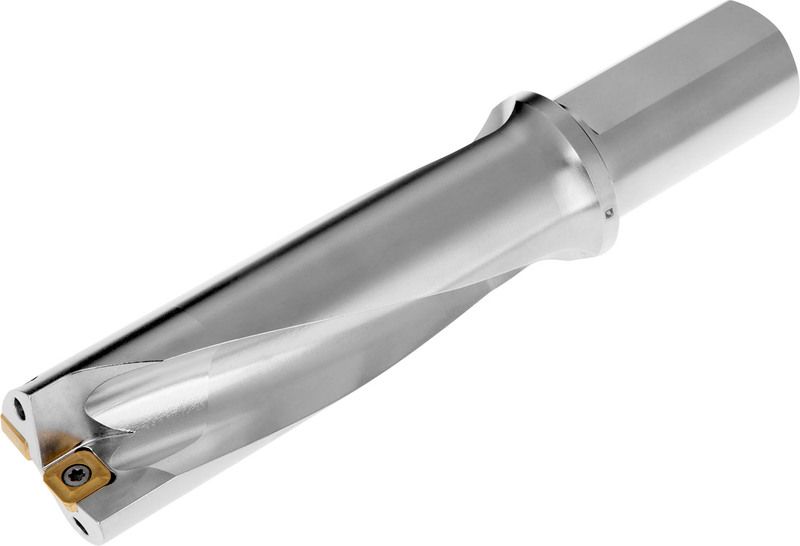

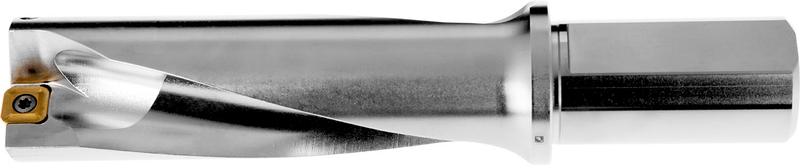

Foret à plaquettes amovibles utilisant une plaquette XPET 11T3.. dans le logement central et une plaquette SCET 1204.. dans le logement périphérique, diamètre de coupe de 35 mm en combinaison avec EP324058, adapté à un réglage radial de -0,25 à +0,50 mm, avec une queue cylindrique de 32 mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales allant jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-35-105-S32
Product Number6820825
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)4.1339"
Depth of Cut Max — mm (APMX)105.0 mm
Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)4.4291"
Usable Length — mm (LU)112.5 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820825
EAN3603603005624
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-35-105-S32 — 3D Model STP Download
803D-35-105-S32 — 2D Model DXF Download
803D-35-105-S32 — Line Drawing PDF Download
