803D-39-117-S32
803D-39-117-S32
803D-39-117-S32

803D-39-117-S32

UGC DOR6820833
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$973.00 CAD - $973.00 CAD
$973.00 CAD
$973.00 CAD - $973.00 CAD
$973.00 CAD

Vendu en lots de : 1

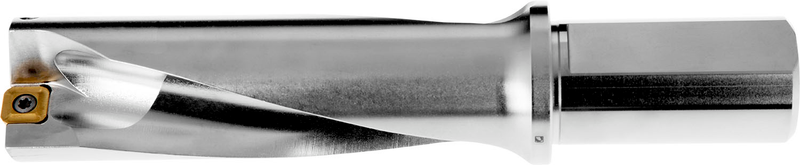

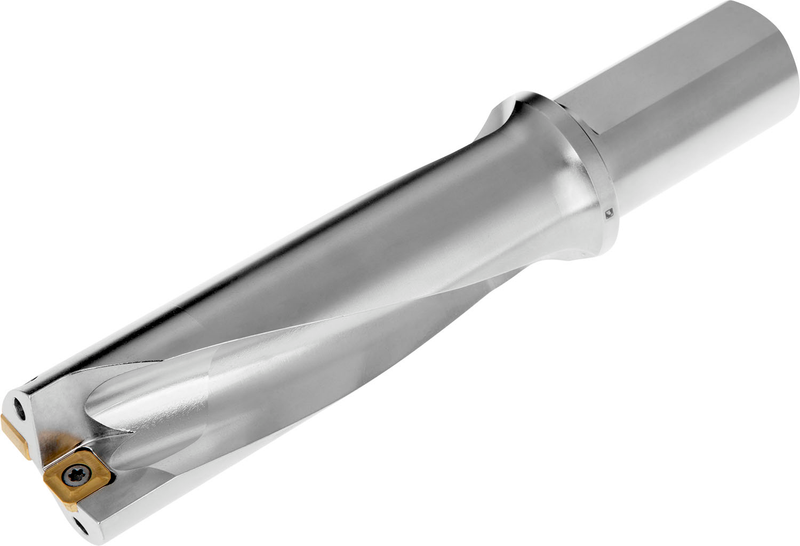

Foret à plaquettes amovibles utilisant une plaquette XPET 12T3.. dans la poche centrale et une plaquette SCET 1204.. dans la poche périphérique, diamètre de coupe 38 mm en combinaison avec EP324058, adapté à un ajustement radial de -0,40 à +0,50 mm, avec une queue cylindrique de 32 mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-39-117-S32
Product Number6820833
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)4.4882"
Depth of Cut Max — mm (APMX)114.0 mm
Dimensions
Cutting Diameter — in (DC)1.5354"
Cutting Diameter — mm (DC)39.0 mm
Overall Length — in (OAL)8.228"
Overall Length — mm (OAL)209.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)4.8425"
Usable Length — mm (LU)123.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820833
EAN3603603005709
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-39-117-S32 — 3D Model STP Download
803D-39-117-S32 — 2D Model DXF Download
803D-39-117-S32 — Line Drawing PDF Download
