J20013.6X2.0
J20013.6X2.0
J20013.6X2.0

J20013.6X2.0

UGC DOR6821168
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$575.14 CAD - $575.14 CAD
$575.14 CAD
$575.14 CAD - $575.14 CAD
$575.14 CAD

Vendu en lots de : 1

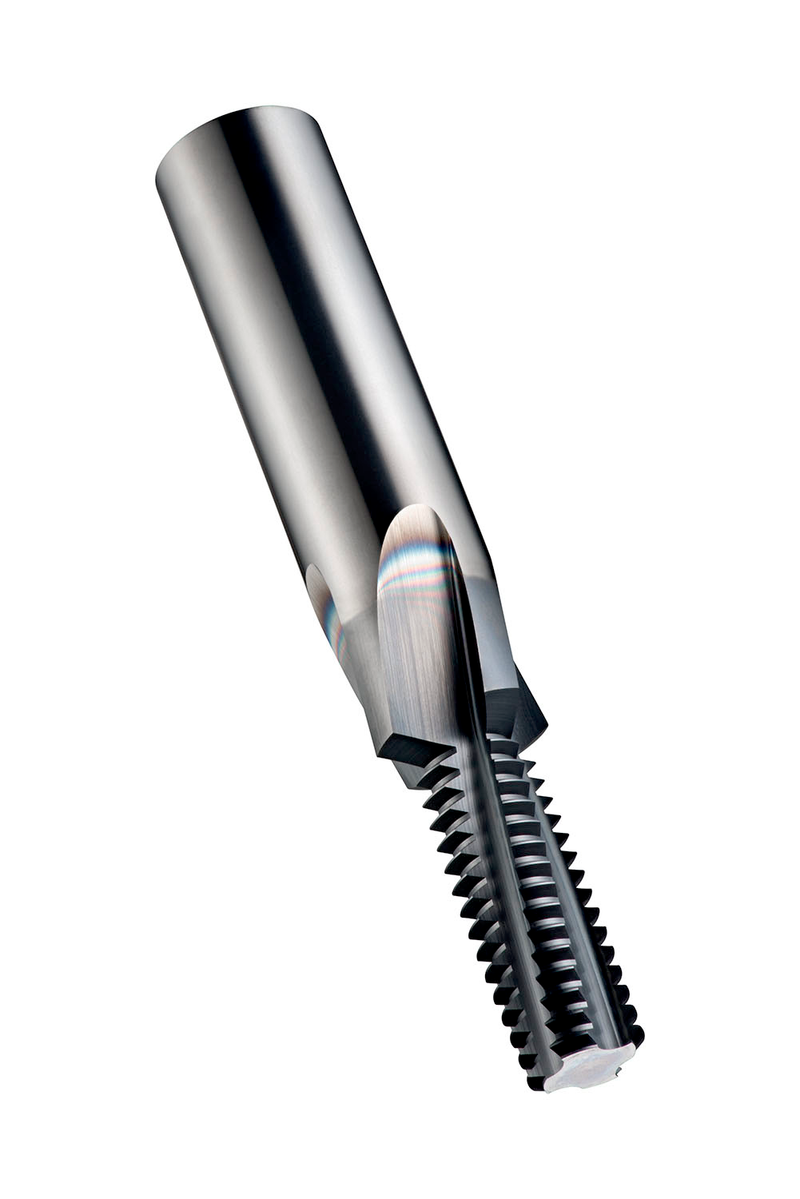

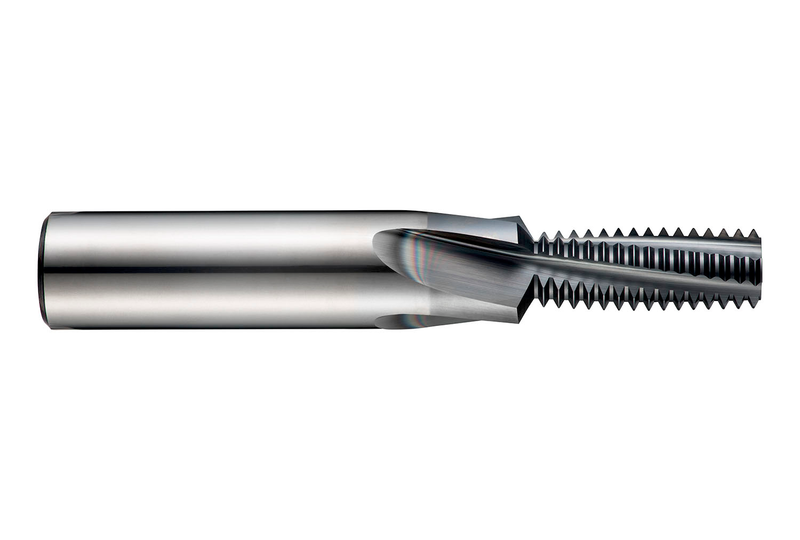

Fraise à fileter et à chanfreiner, pour filet ISO-Métrique ≥ M16 au pas de 2,00 mm, dimensions selon la norme DORMER avec 4 arêtes, diamètre de coupe de 13,6 mm et queue cylindrique de 18 mm selon DIN 6535 HA, carbure monobloc avec revêtement Alcrona Pro et angle d'hélice de 10° pour le fraisage d'un filet intérieur droit ou gauche d'une longueur maximale de 34 mm dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)J20013,6X2,0
Product Name (ISO)J20013.6X2.0
GradeAlcrona Pro
Product Number6821168
Product FamilyJ200
Insert Geometry
Depth of Cut Max — mm (APMX)34.0 mm

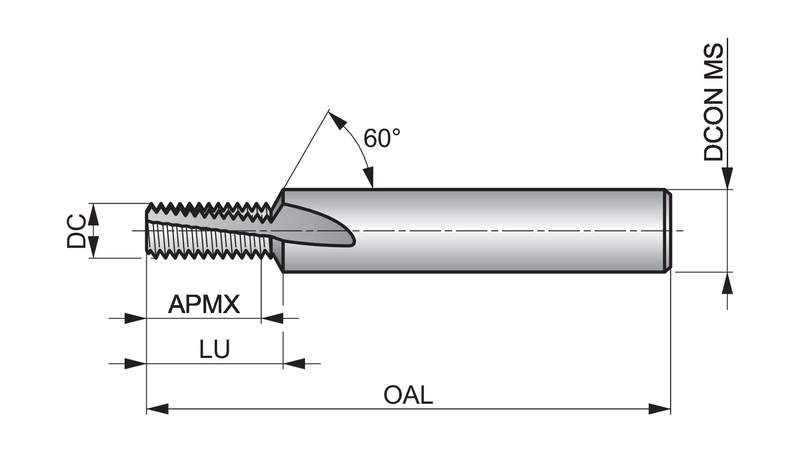

Dimensions
Cutting Diameter — in (DC)0.5354"
Cutting Diameter — mm (DC)13.6 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Length × Diameter Ratio2
Usable Length — mm (LU)36.2 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)M16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46821168
EAN7320760688663
File Type Download
J20013.6X2.0 — Line Drawing PDF Download
