UGC DOR6821296
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$631.71 CAD - $631.71 CAD
$631.71 CAD
$631.71 CAD - $631.71 CAD
$631.71 CAD

Vendu en lots de : 1

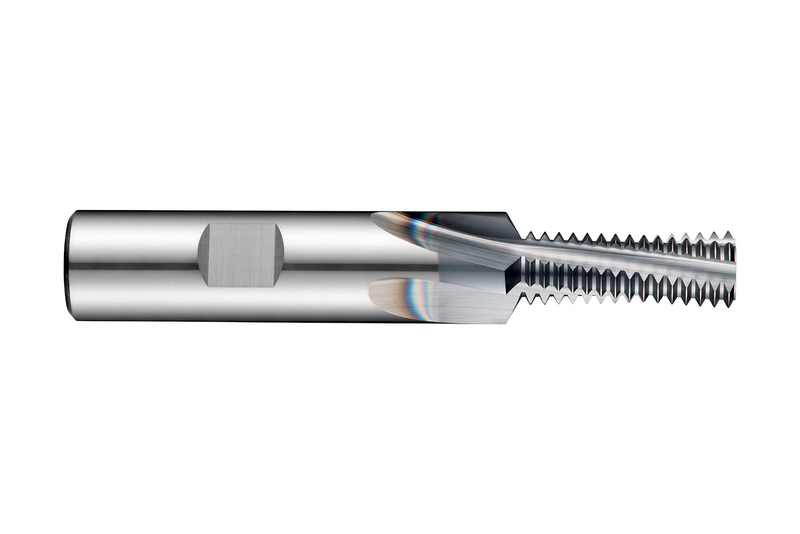

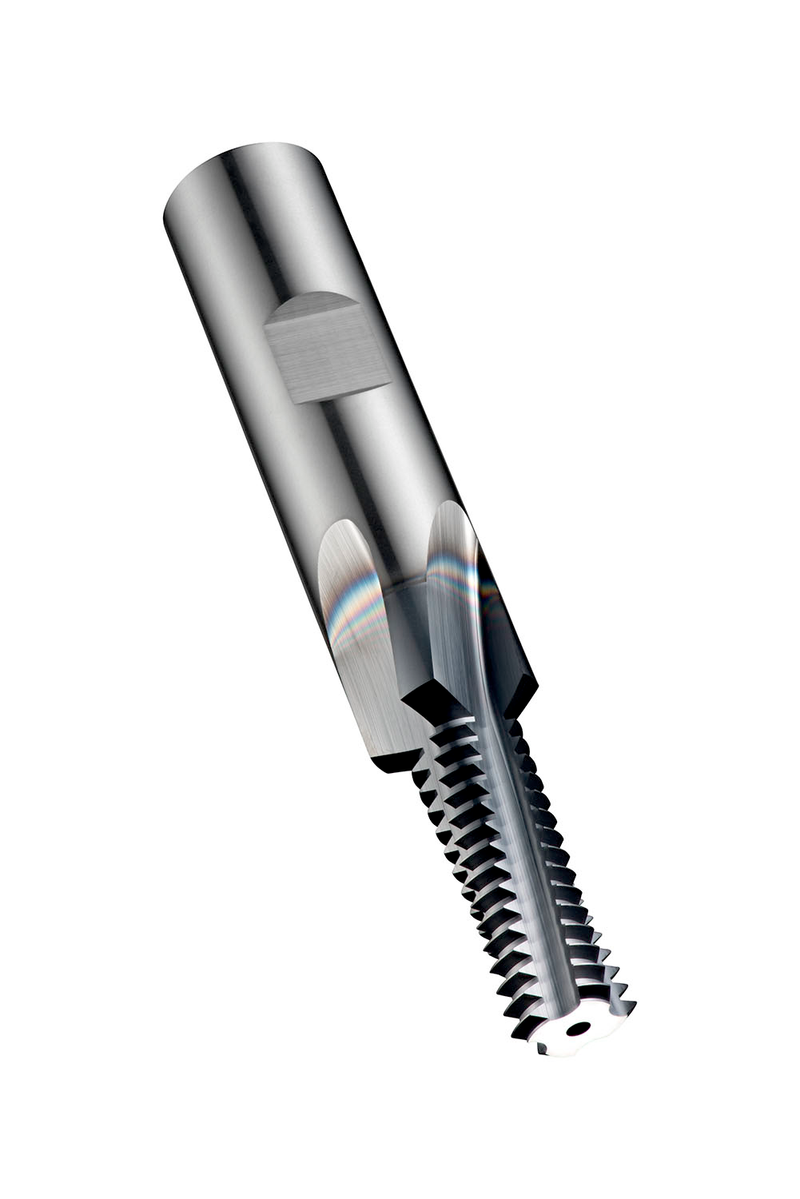

Fraise à fileter et à chanfreiner, pour filet ISO-métrique ≥ M16 avec pas de 2,00 mm, dimensions selon la norme DORMER avec 4 arêtes, diamètre de coupe de 13,6 mm et queue Weldon de 18 mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro, arrosage interne et angle d'hélice de 10° pour le fraisage d'un filet interne droit ou gauche d'une longueur maximale de 34 mm dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, les métaux non ferreux et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J20513.6X2.0
GradeAlcrona Pro
Product Number6821296
Product FamilyJ205
Insert Geometry
Depth of Cut Max — mm (APMX)34.0 mm

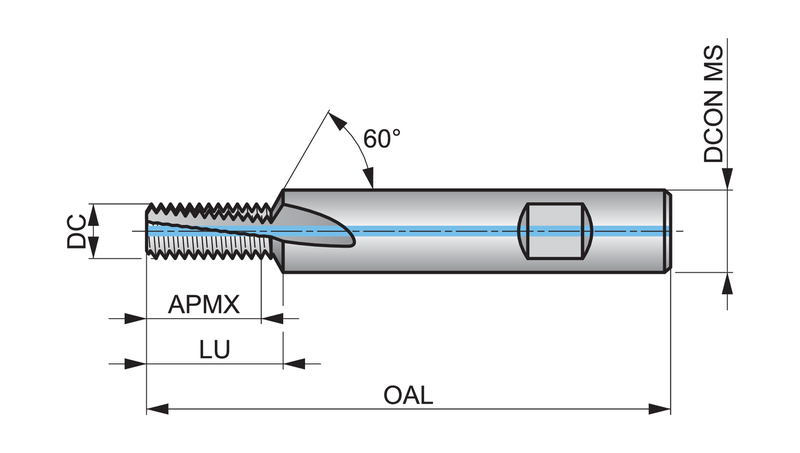

Dimensions
Cutting Diameter — in (DC)0.5354"
Cutting Diameter — mm (DC)13.6 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Length × Diameter Ratio2
Usable Length — mm (LU)36.2 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm

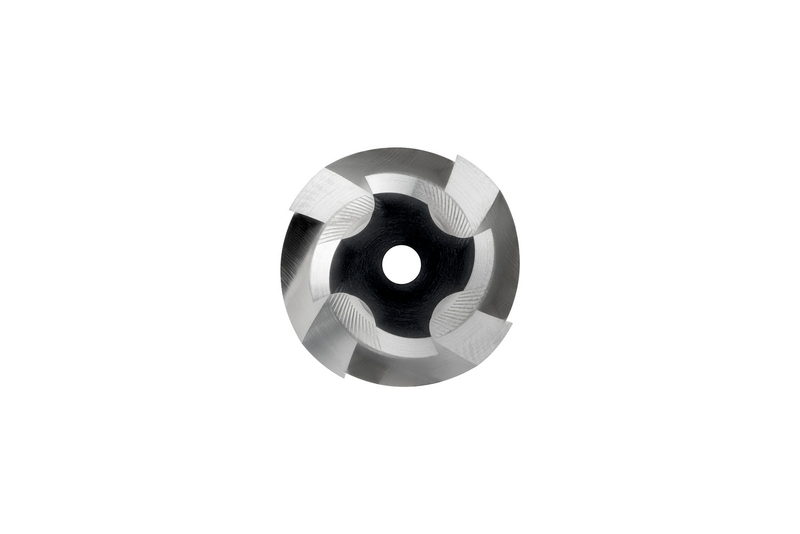

Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)M16
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821296
EAN7320760688748
File Type Download
J20513.6X2.0 — Line Drawing PDF Download
