J2107.5X1.5
J2107.5X1.5
J2107.5X1.5

J2107.5X1.5

UGC DOR6821304
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$245.14 CAD - $245.14 CAD
$245.14 CAD
$245.14 CAD - $245.14 CAD
$245.14 CAD

Vendu en lots de : 1

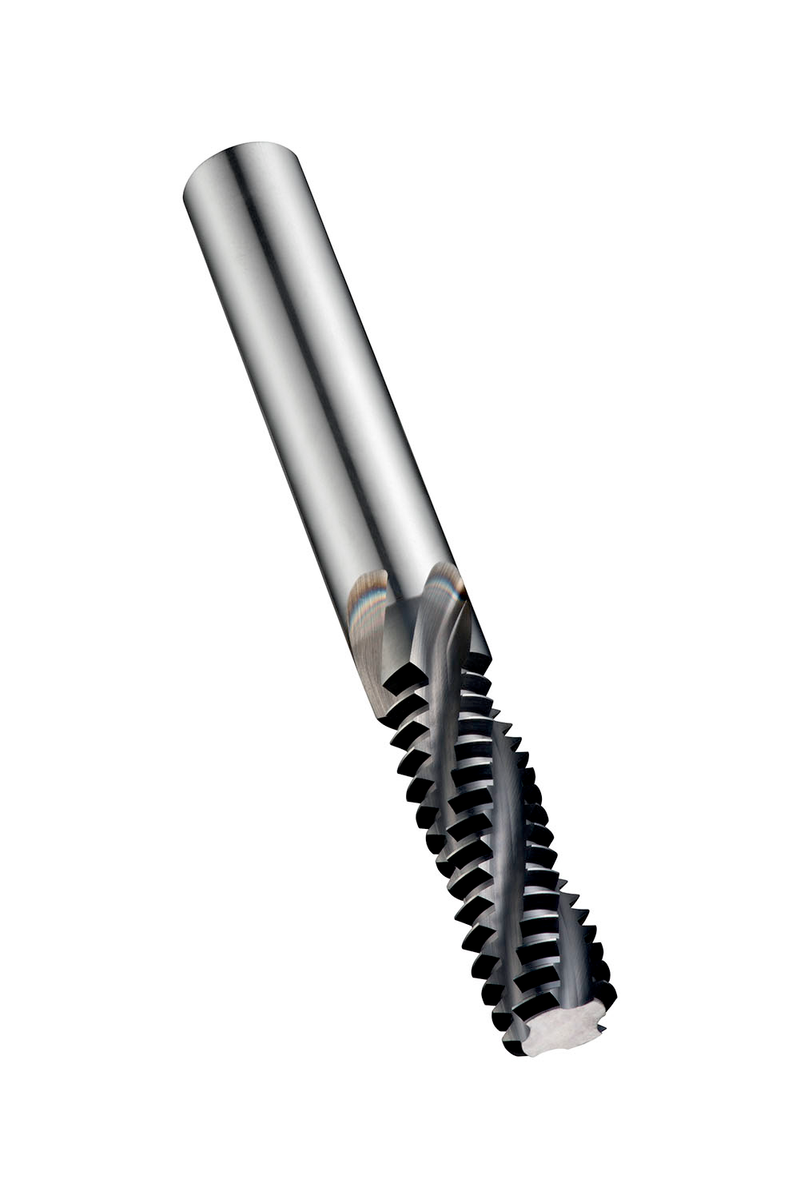

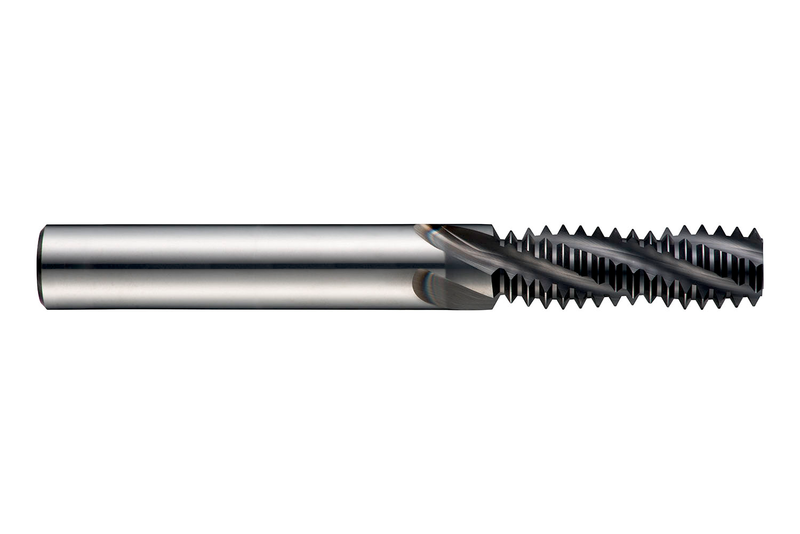

Fraise à fileter, pour filetage métrique ISO ≥ M10 au pas de 1,50 mm, dimensions selon la norme DORMER avec 3 dents, diamètre de coupe de 7,5 mm et queue cylindrique de 8 mm selon DIN 6535 HA, carbure monobloc avec revêtement Alcrona Pro et hélice de 27° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 21 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J2107.5X1.5
GradeAlcrona Pro
Product Number6821304
Product FamilyJ210
Insert Geometry

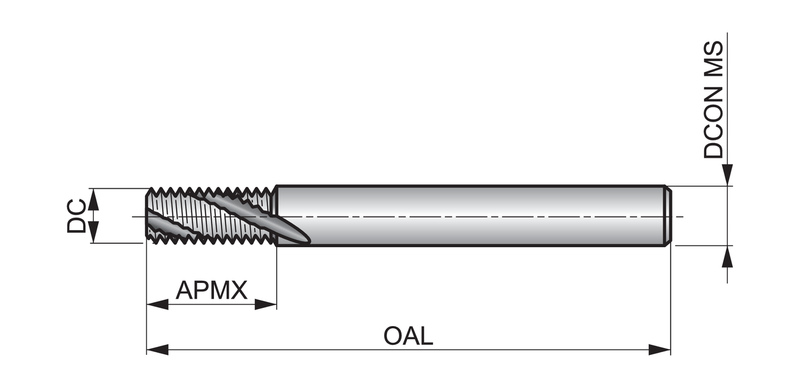

Depth of Cut Max — mm (APMX)21.0 mm
Dimensions
Cutting Diameter — in (DC)0.2953"
Cutting Diameter — mm (DC)7.5 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)M10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46821304
EAN7320760688823
File Type Download
J2107.5X1.5 — Line Drawing PDF Download
