UGC DOR6821306
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$468.29 CAD - $468.29 CAD
$468.29 CAD
$468.29 CAD - $468.29 CAD
$468.29 CAD

Vendu en lots de : 1

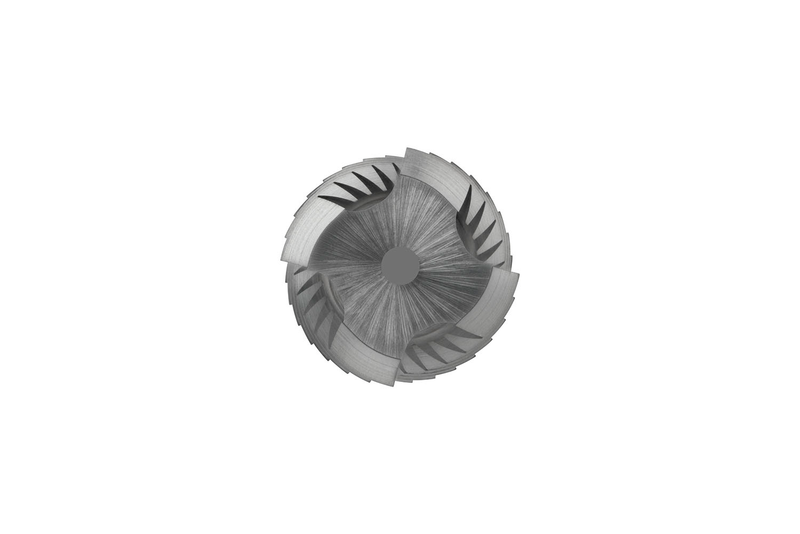

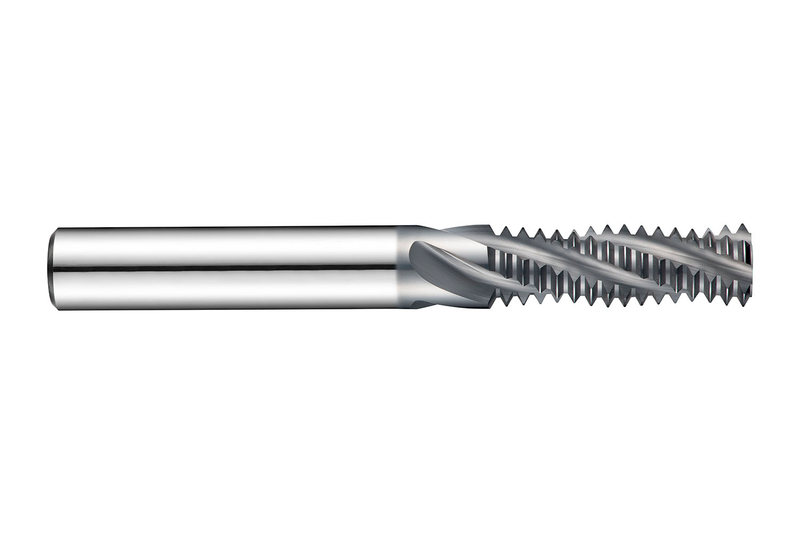

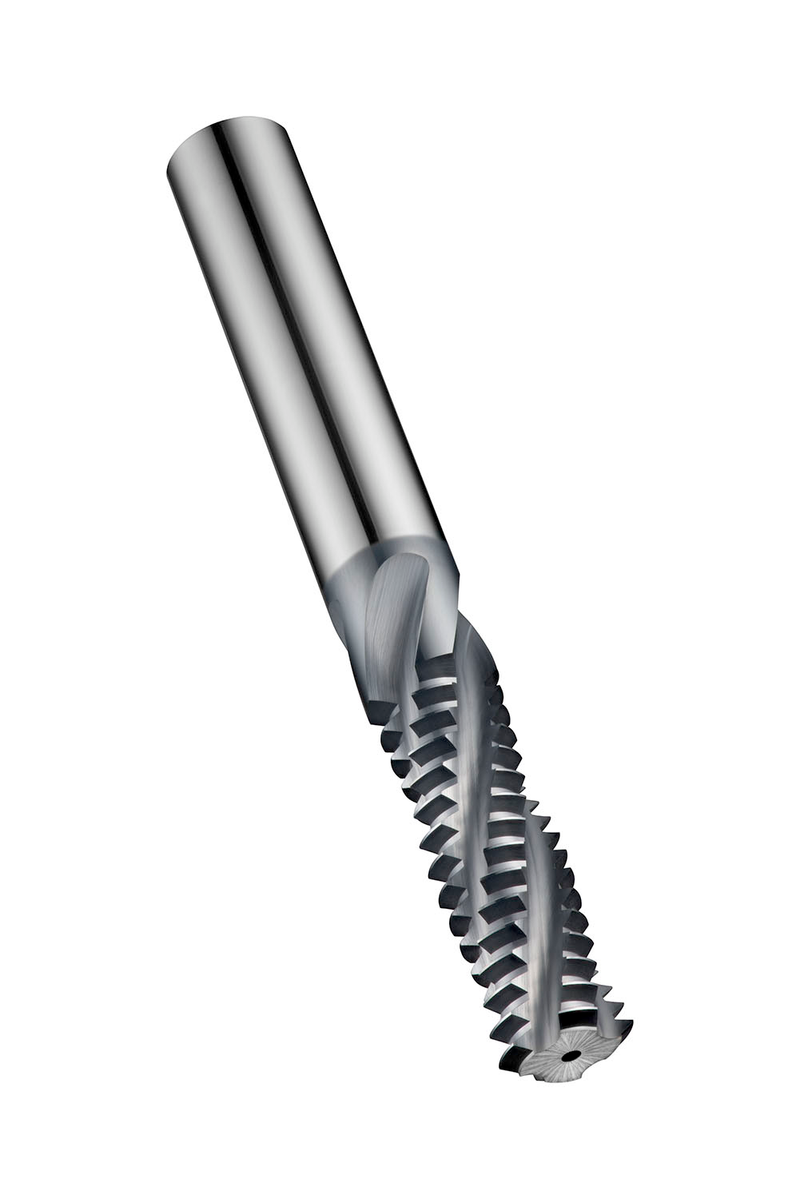

Fraise à fileter, pour filetage ISO-métrique ≥ M14 au pas de 2,00 mm, dimensions selon la norme DORMER avec 4 arêtes, diamètre de coupe de 10 mm et queue cylindrique de 10 mm selon DIN 6535 HA, carbure monobloc avec revêtement Alcrona Pro, arrosage central et angle d'hélice de 27° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 30 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J21510.0X2.0
GradeAlcrona Pro
Product Number6821306
Product FamilyJ215
Insert Geometry
Depth of Cut Max — mm (APMX)30.0 mm

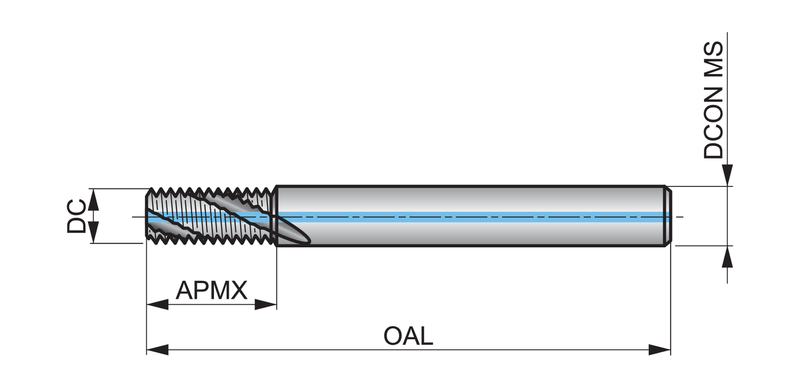

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)M14
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821306
EAN7320760688847
File Type Download
J21510.0X2.0 — Line Drawing PDF Download
