UGC DOR6821308
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.71 CAD - $180.71 CAD
$180.71 CAD
$180.71 CAD - $180.71 CAD
$180.71 CAD

Vendu en lots de : 1

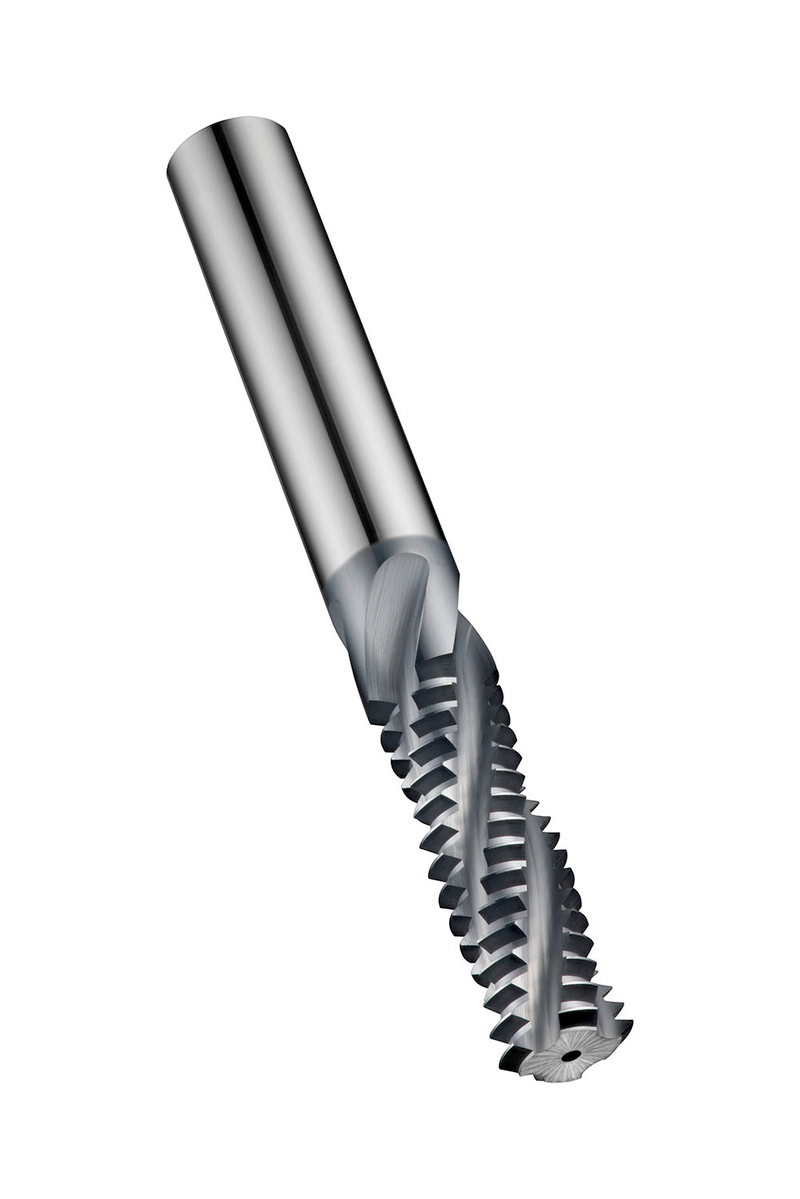

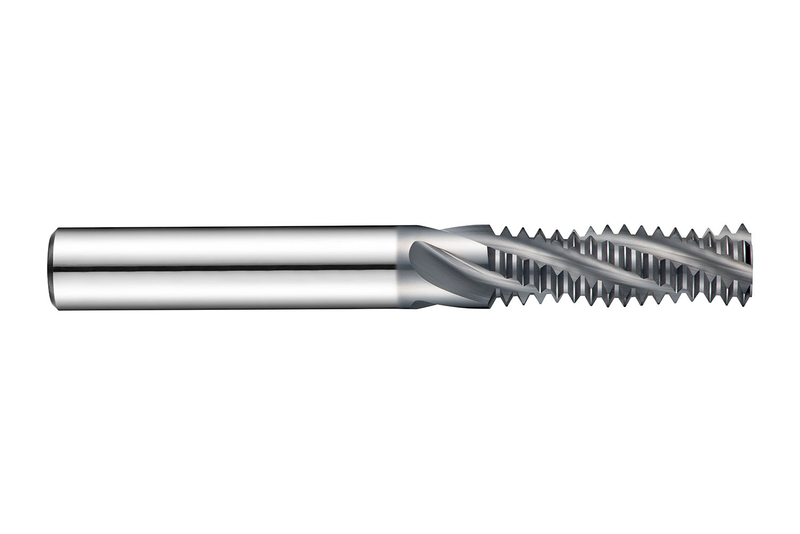

Fraise à fileter, pour filetage ISO-Métrique ≥ M6 au pas de 1,00 mm, dimensions selon la norme DORMER à 3 dents, diamètre de coupe de 4,5 mm et queue cylindrique de 6 mm selon DIN 6535 HA, carbure monobloc avec revêtement Alcrona Pro, arrosage interne et hélice de 27° pour le fraisage de filetages internes droits ou gauches d'une longueur maximale de 13 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J2154.5X1.0
GradeAlcrona Pro
Product Number6821308
Product FamilyJ215
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

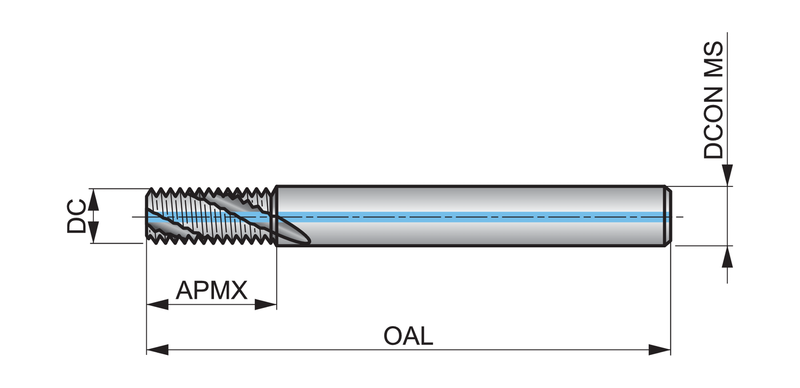

Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)M6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821308
EAN7320760688861
File Type Download
J2154.5X1.0 — Line Drawing PDF Download
