UGC DOR6821327
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$575.14 CAD - $575.14 CAD
$575.14 CAD
$575.14 CAD - $575.14 CAD
$575.14 CAD

Vendu en lots de : 1

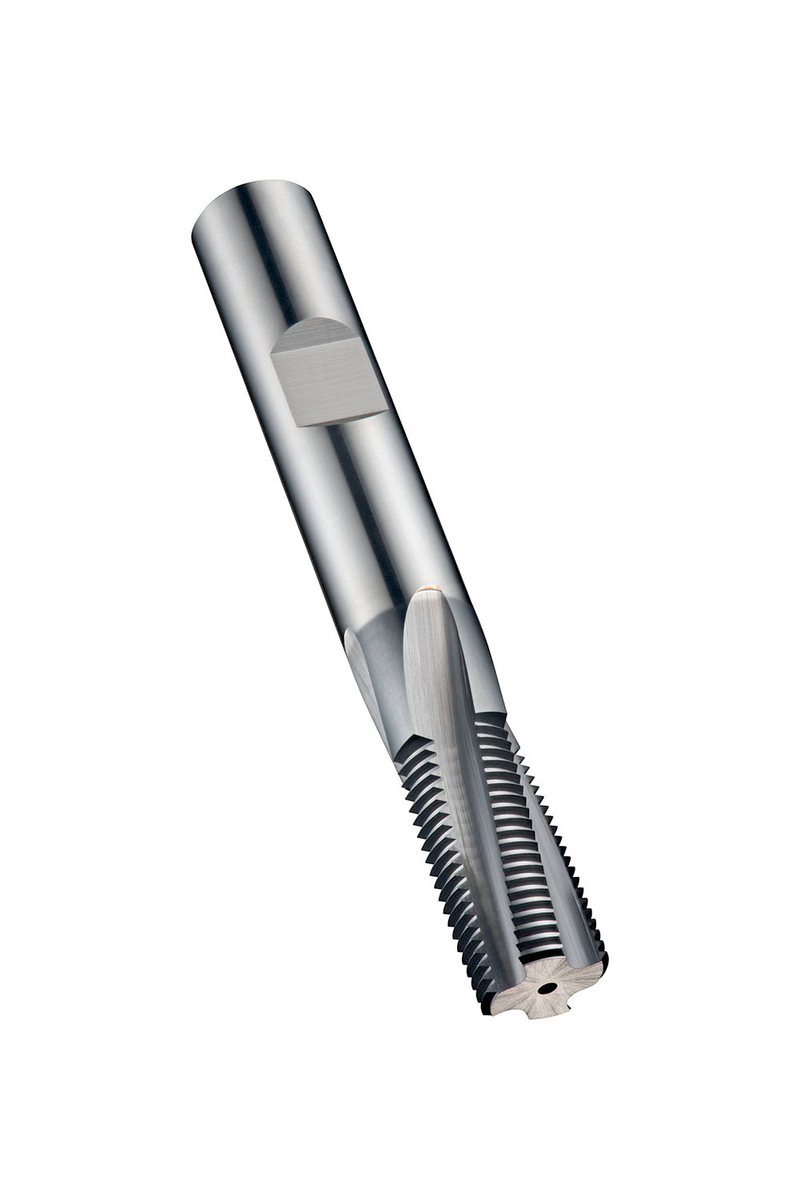

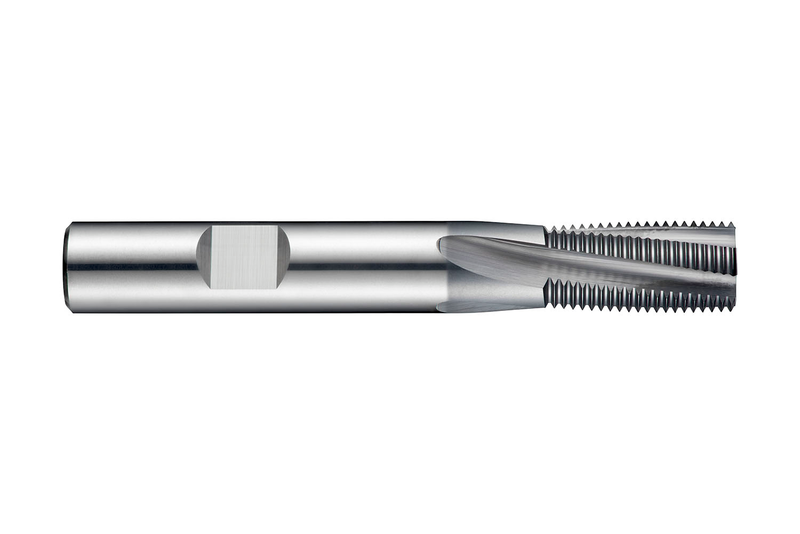

Fraise à fileter, pour filetage métrique fin ISO ≥ M16 au pas de 1,50 mm, dimensions selon la norme DORMER avec 5 goujures, diamètre de coupe de 14 mm et queue Weldon de 14 mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro, arrosage central et angle d'hélice de 10° pour le fraisage d'un filetage interne droit ou gauche d'une longueur maximale de 26 mm dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, les métaux non ferreux, le titane ou les alliages de titane et les superalliages à base de Co, la fonte coulée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J22514.0X1.5
GradeAlcrona Pro
Product Number6821327
Product FamilyJ225
Insert Geometry

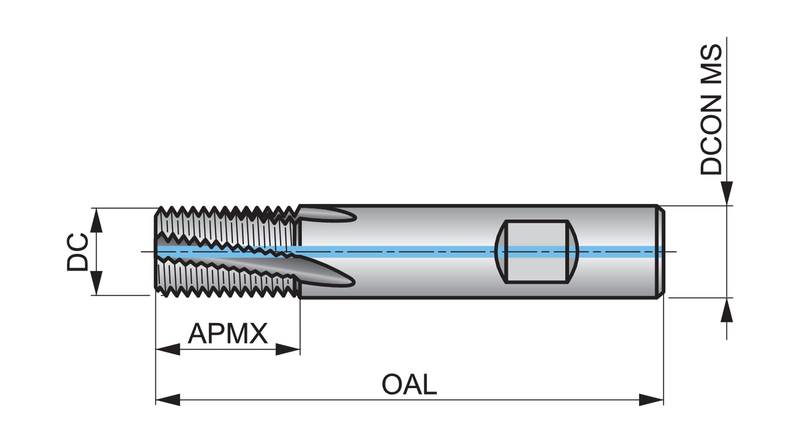

Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)M16
Thread Form (THFT)MF - Mètric fin
Thread Pitch — mm (TP)1.5 mm
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821327
EAN7320760689059
File Type Download
J22514.0X1.5 — Line Drawing PDF Download
