UGC DOR6821328
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$689.07 CAD - $689.07 CAD
$689.07 CAD
$689.07 CAD - $689.07 CAD
$689.07 CAD

Vendu en lots de : 1

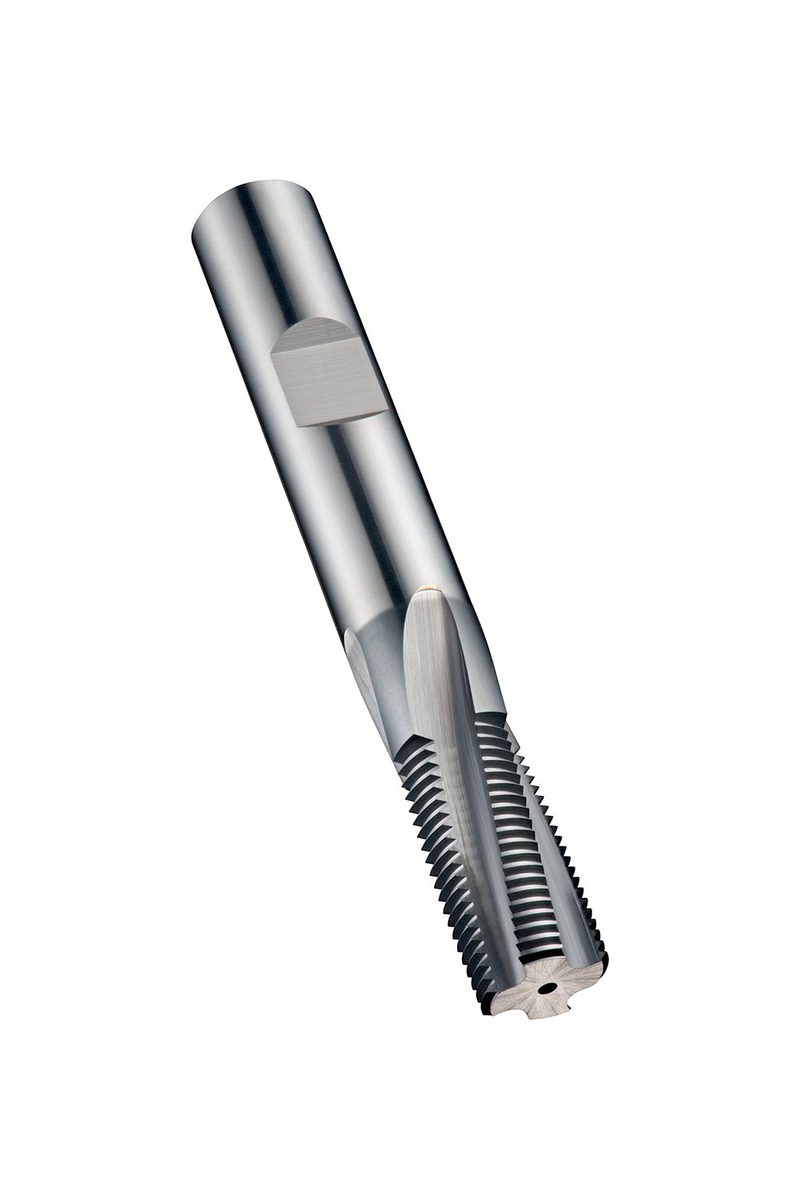

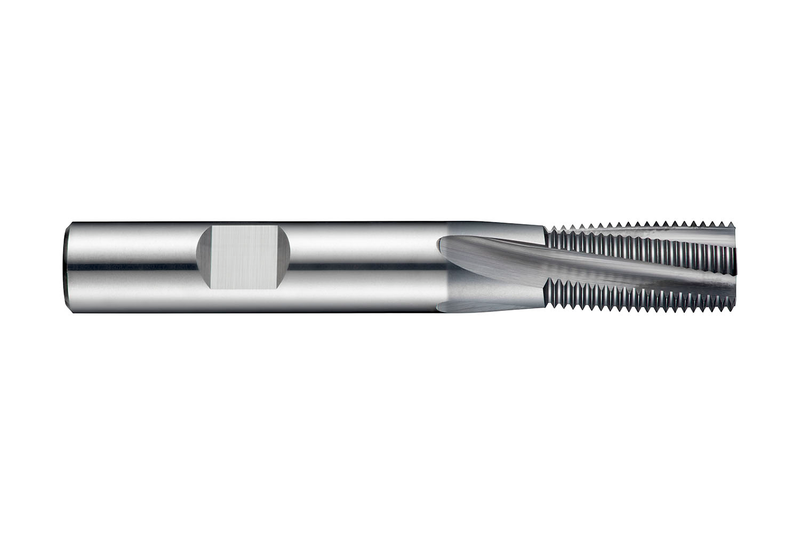

Fraise à fileter, pour filetage métrique ISO fin ≥ M18 au pas de 1,50 mm, dimensions conformes à la norme DORMER avec 5 goujures, diamètre de coupe de 16 mm et queue Weldon de 16 mm conforme à la norme DIN 6535 HB, en carbure monobloc avec revêtement Alcrona Pro, arrosage interne et angle d'hélice de 10° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 30 mm dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, les métaux non ferreux, le titane ou les alliages de titane et les superalliages à base de cobalt, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J22516.0X1.5
GradeAlcrona Pro
Product Number6821328
Product FamilyJ225
Insert Geometry
Depth of Cut Max — mm (APMX)30.0 mm

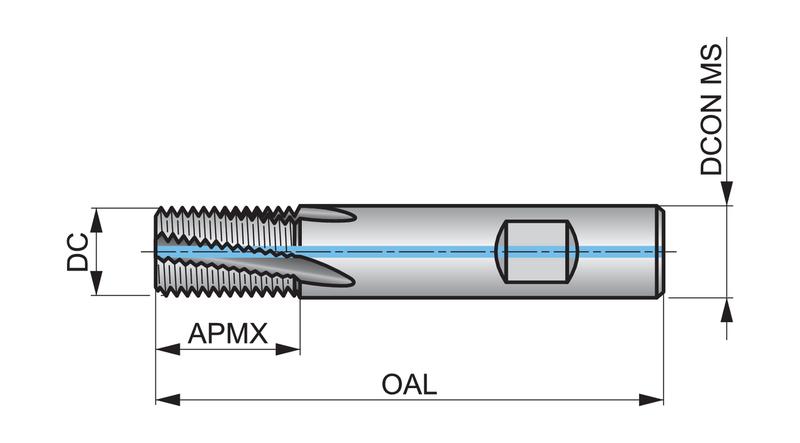

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)M18
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.5 mm
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821328
EAN7320760689066
File Type Download
J22516.0X1.5 — Line Drawing PDF Download
