UGC DOR6821332
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$468.29 CAD - $468.29 CAD
$468.29 CAD
$468.29 CAD - $468.29 CAD
$468.29 CAD

Vendu en lots de : 1

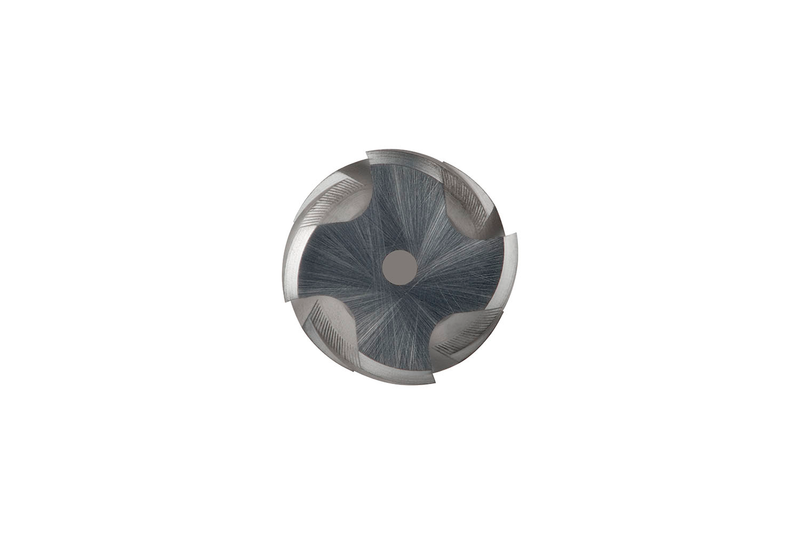

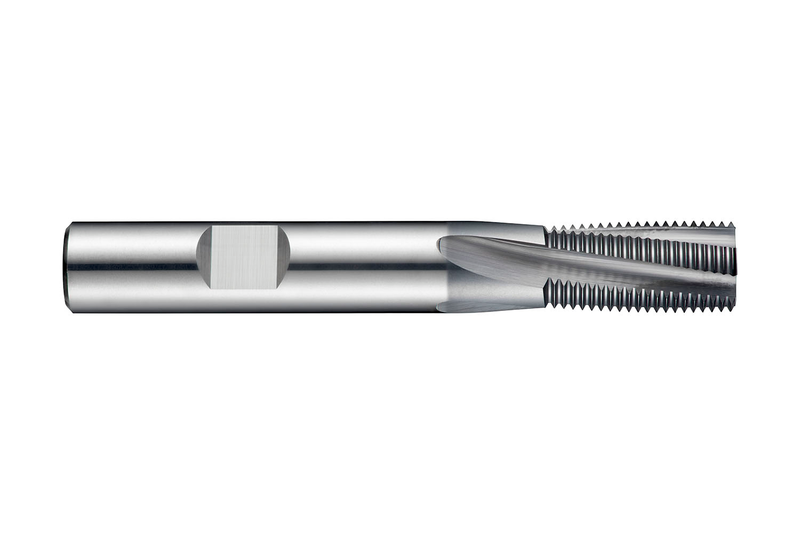

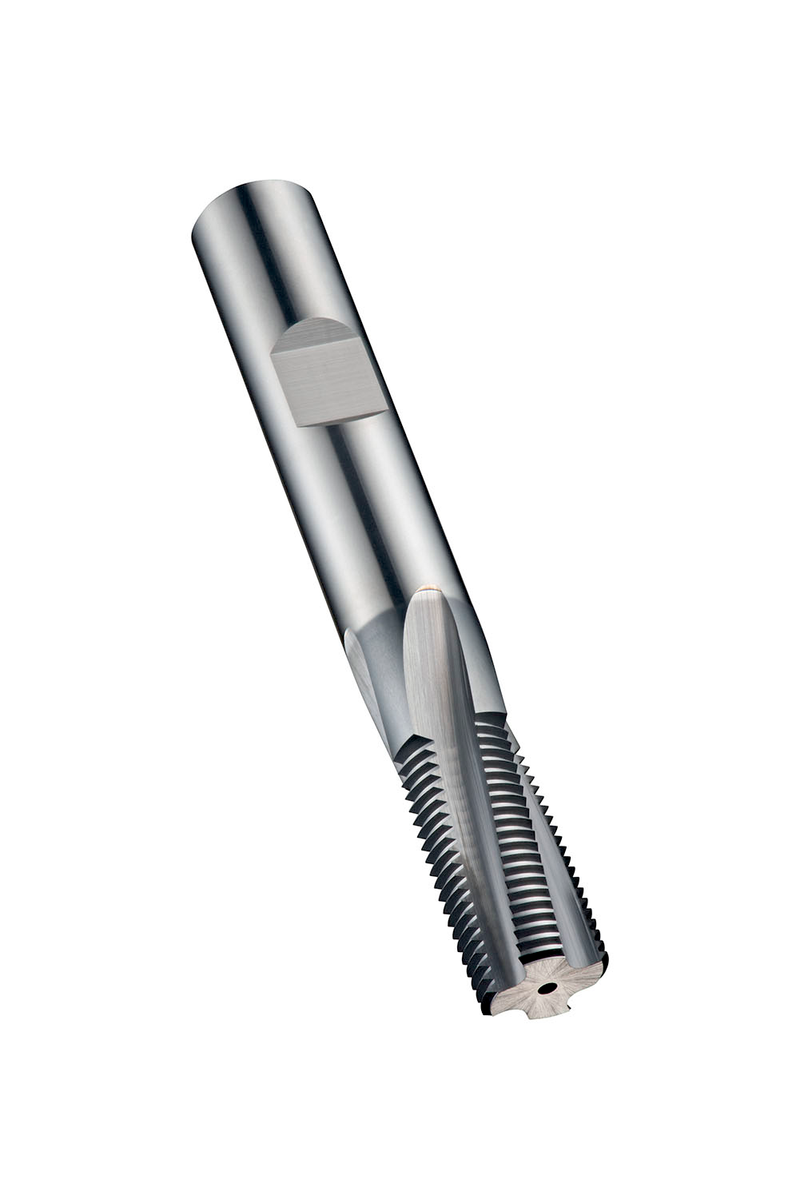

Fraise à fileter, pour filet ISO-métrique fin ≥ M14 au pas de 1,00 mm, dimensions selon la norme DORMER avec 4 arêtes de coupe, diamètre de coupe de 12 mm et queue Weldon de 12 mm selon DIN 6535 HB, en carbure monobloc avec revêtement Alcrona Pro, arrosage central et angle d'hélice de 10° pour le fraisage d'un filet intérieur droit ou gauche d'une longueur maximale de 22 mm dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, les métaux non ferreux, le titane ou les alliages de titane et les superalliages à base de cobalt, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J22512.0X1.0
GradeAlcrona Pro
Product Number6821332
Product FamilyJ225

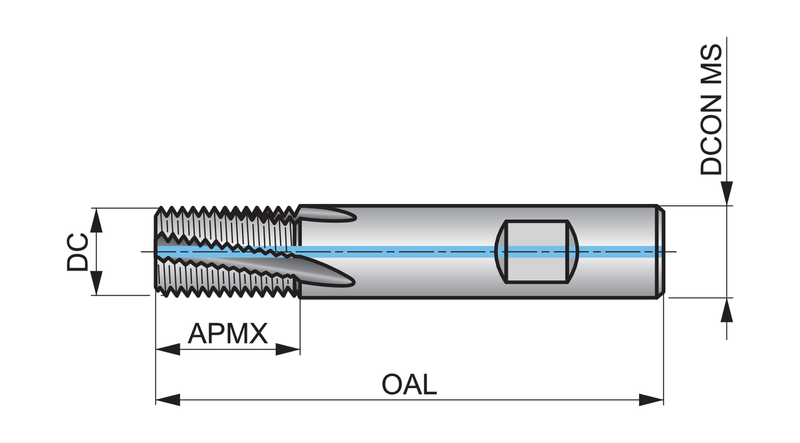

Insert Geometry
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)M14
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821332
EAN7320760689103
File Type Download
J22512.0X1.0 — Line Drawing PDF Download
