UGC DOR6821341
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$547.64 CAD - $547.64 CAD
$547.64 CAD
$547.64 CAD - $547.64 CAD
$547.64 CAD

Vendu en lots de : 1

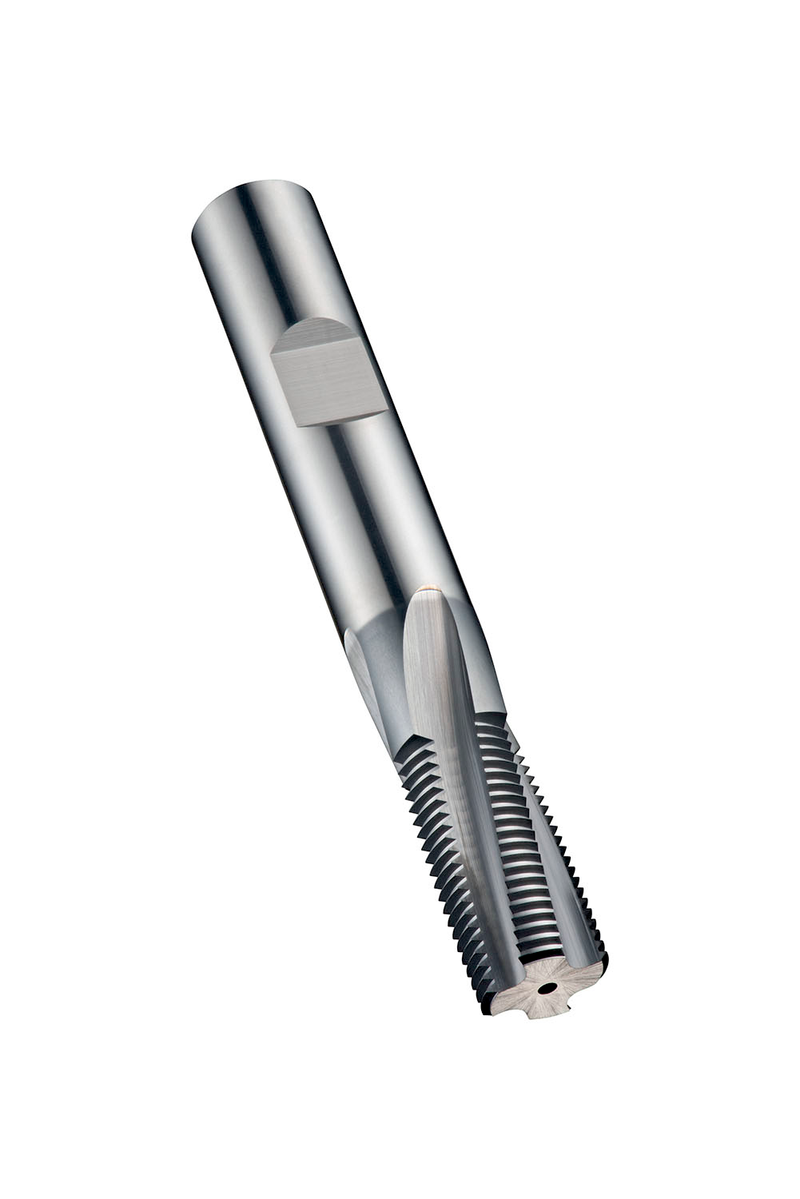

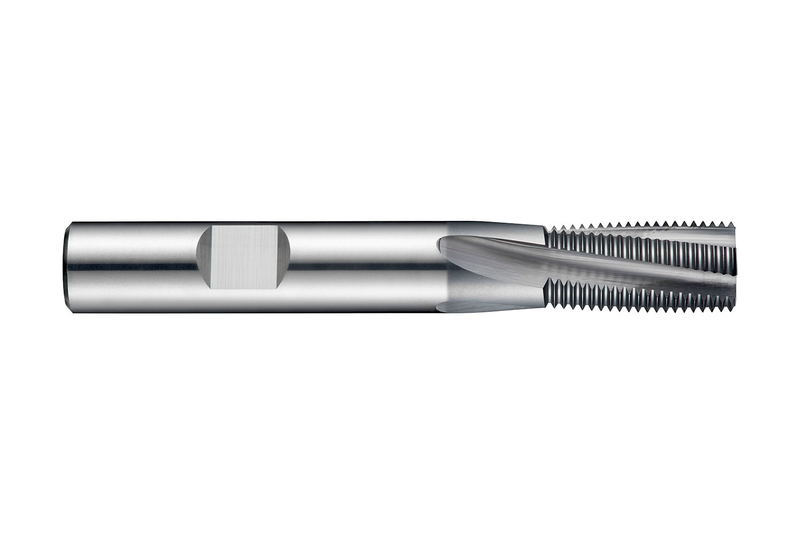

Fraise à fileter, pour filetages Unified National Coarse ≥ UNC 3/4" avec 10 filets par pouce, dimensions conformes à la norme DORMER avec 5 goujures, diamètre de coupe de 14 mm et queue Weldon de 14 mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro, arrosage par l'intérieur et hélice de 10° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 32 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J23514.0-10
GradeAlcrona Pro
Product Number6821341
Product FamilyJ235
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

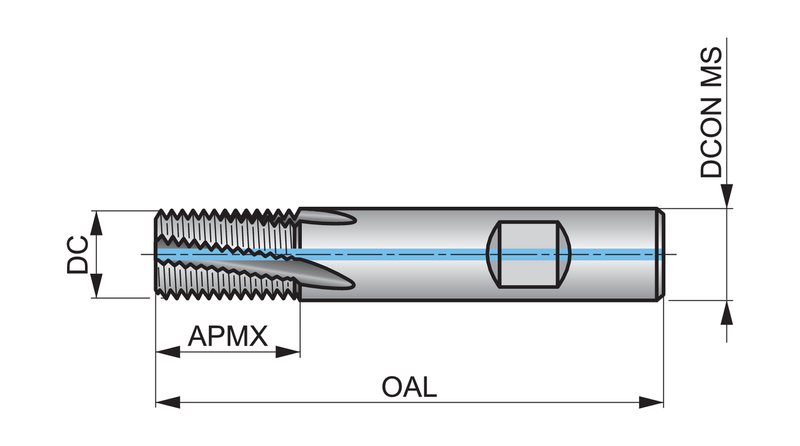

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm

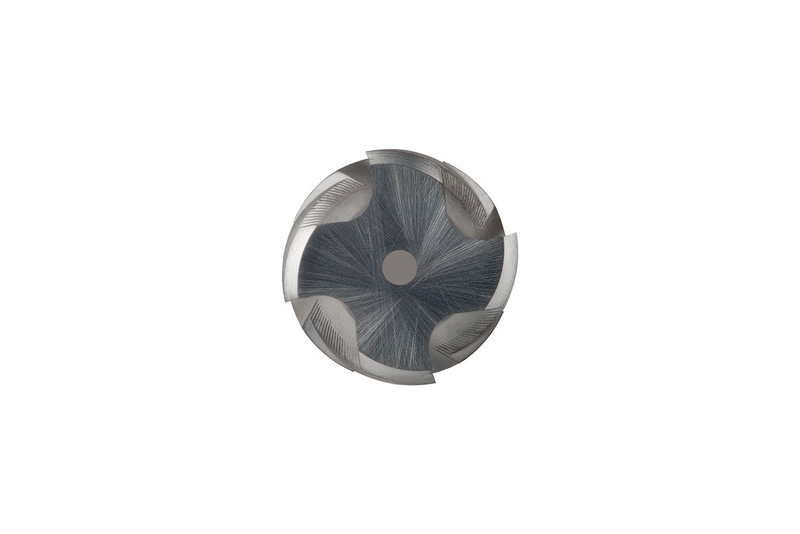

Number of Flutes (NOF)5
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821341
EAN7320760689196
File Type Download
J23514.0-10 — Line Drawing PDF Download
