UGC DOR6821342
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$339.43 CAD - $339.43 CAD
$339.43 CAD
$339.43 CAD - $339.43 CAD
$339.43 CAD

Vendu en lots de : 1

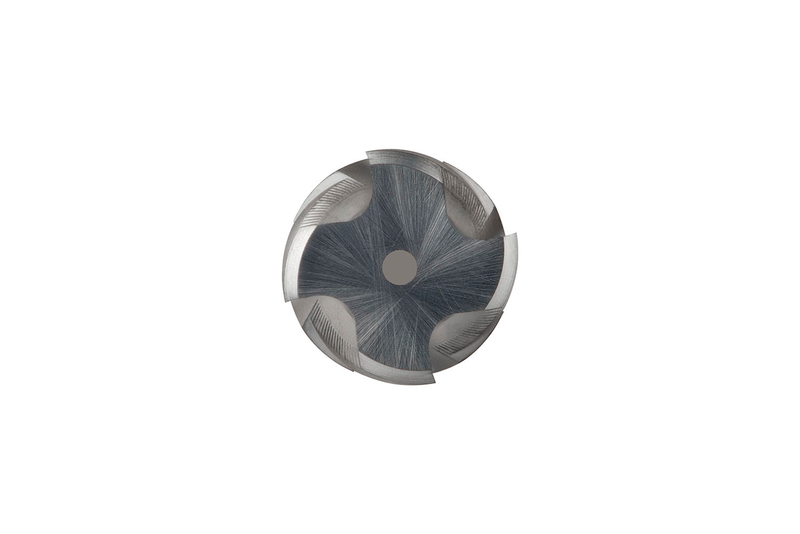

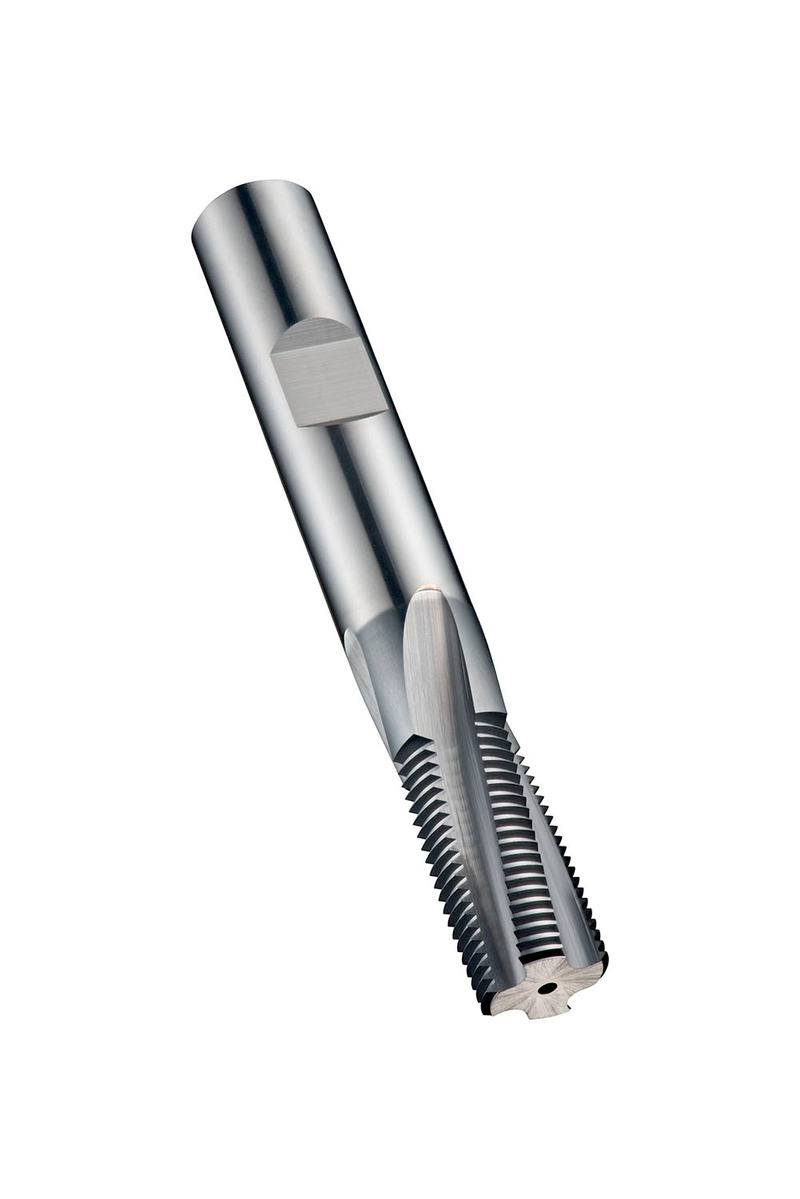

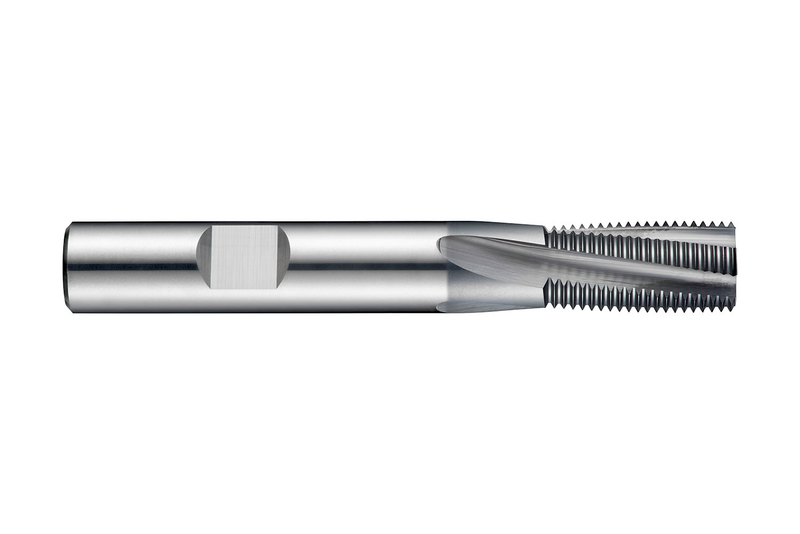

Fraise à fileter, pour filetage UNF (Unified National Fine) ≥ 9/16" avec 18 filets au pouce, dimensions selon la norme DORMER avec 4 goujures, diamètre de coupe de 10mm et queue Weldon de 10mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro, arrosage par l'intérieur et angle d'hélice de 10° pour le fraisage d'un filetage intérieur droit ou gauche de 22mm de long maximum dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J24510.0-18
GradeAlcrona Pro
Product Number6821342
Product FamilyJ245
Insert Geometry

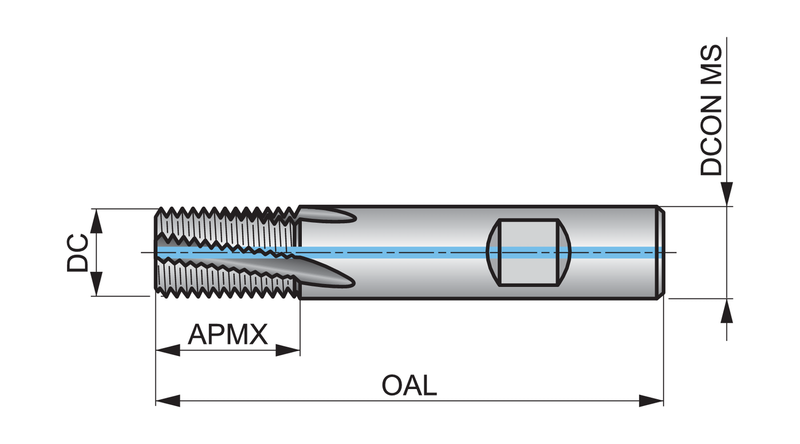

Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)9/16, 5/8
Thread Form (THFT)UNF - Filetage Unifié Fin
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821342
EAN7320760689202
File Type Download
J24510.0-18 — Line Drawing PDF Download
