UGC DOR6821343
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$547.64 CAD - $547.64 CAD
$547.64 CAD
$547.64 CAD - $547.64 CAD
$547.64 CAD

Vendu en lots de : 1

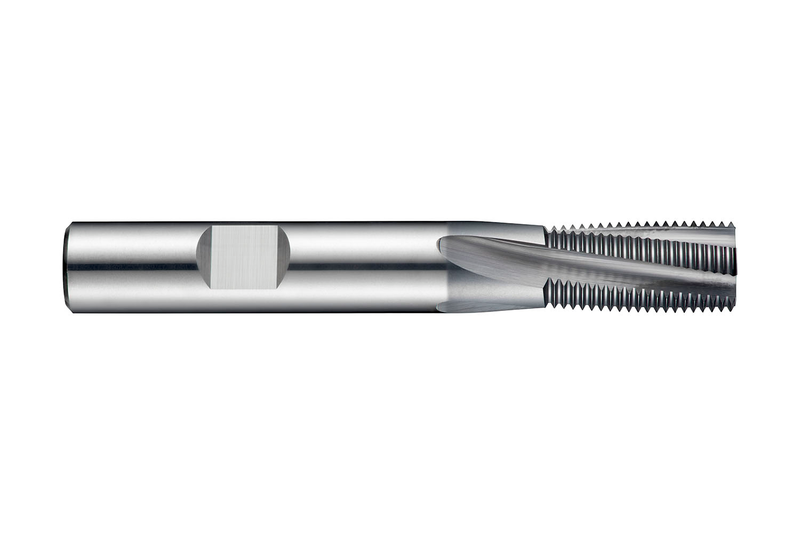

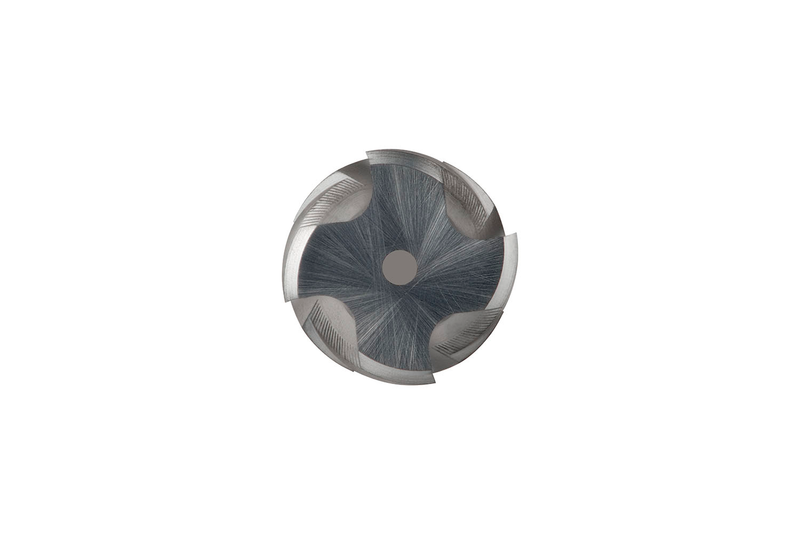

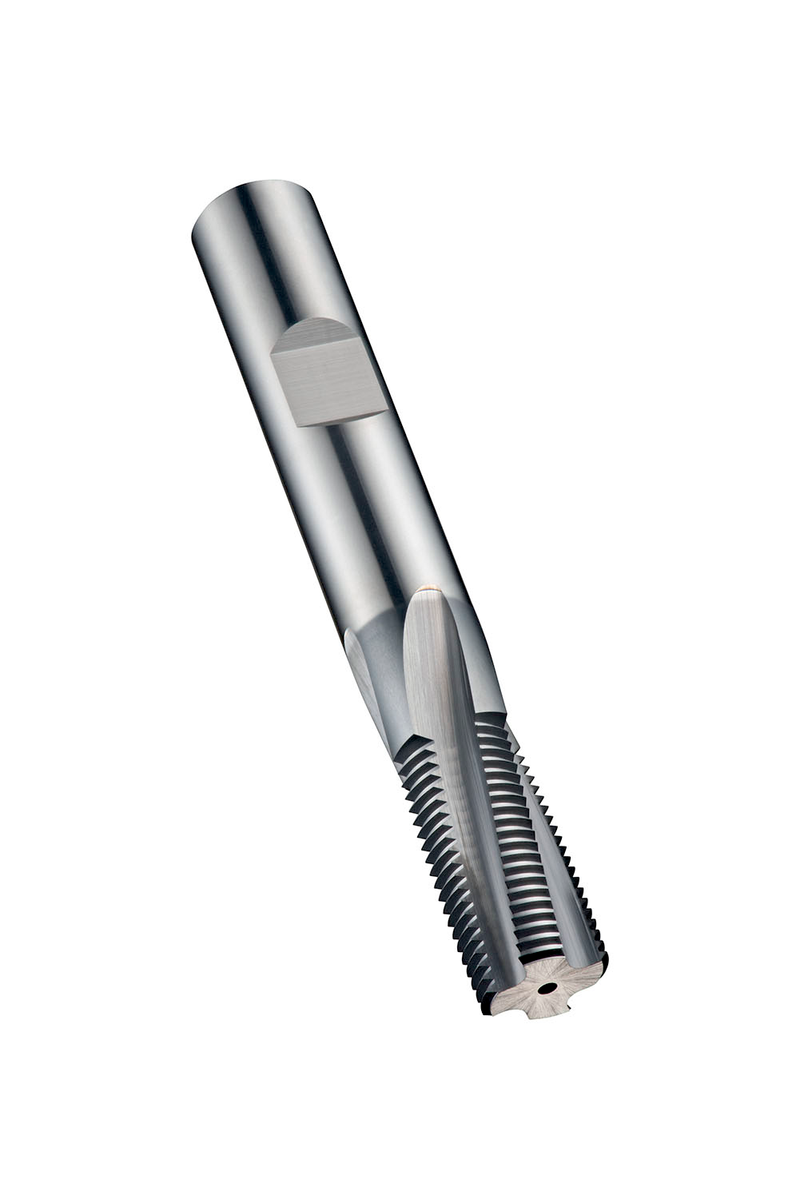

Fraise à fileter, pour filetage UNF 3/4" ou plus, avec 16 TPI, dimensions conformes à la norme DORMER, avec 5 cannelures, diamètre de coupe de 14 mm et queue Weldon de 14 mm selon DIN 6535 HB, en carbure monobloc avec revêtement Alcrona Pro, arrosage interne et angle d'hélice de 10° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 32 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J24514.0-16
GradeAlcrona Pro
Product Number6821343
Product FamilyJ245
Insert Geometry

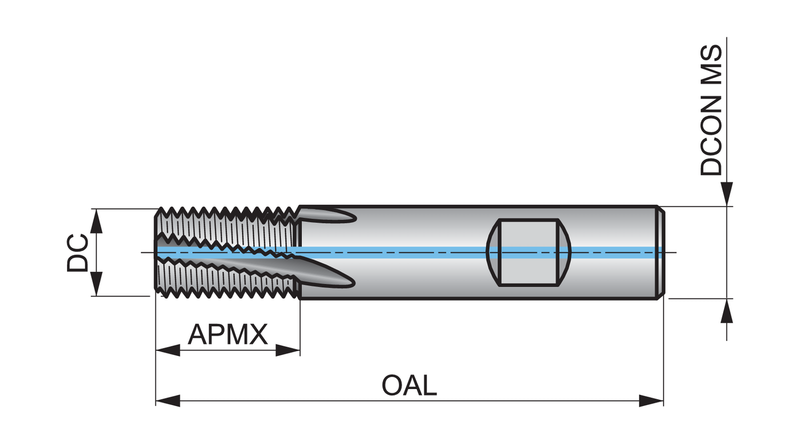

Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821343
EAN7320760689219
File Type Download
J24514.0-16 — Line Drawing PDF Download
